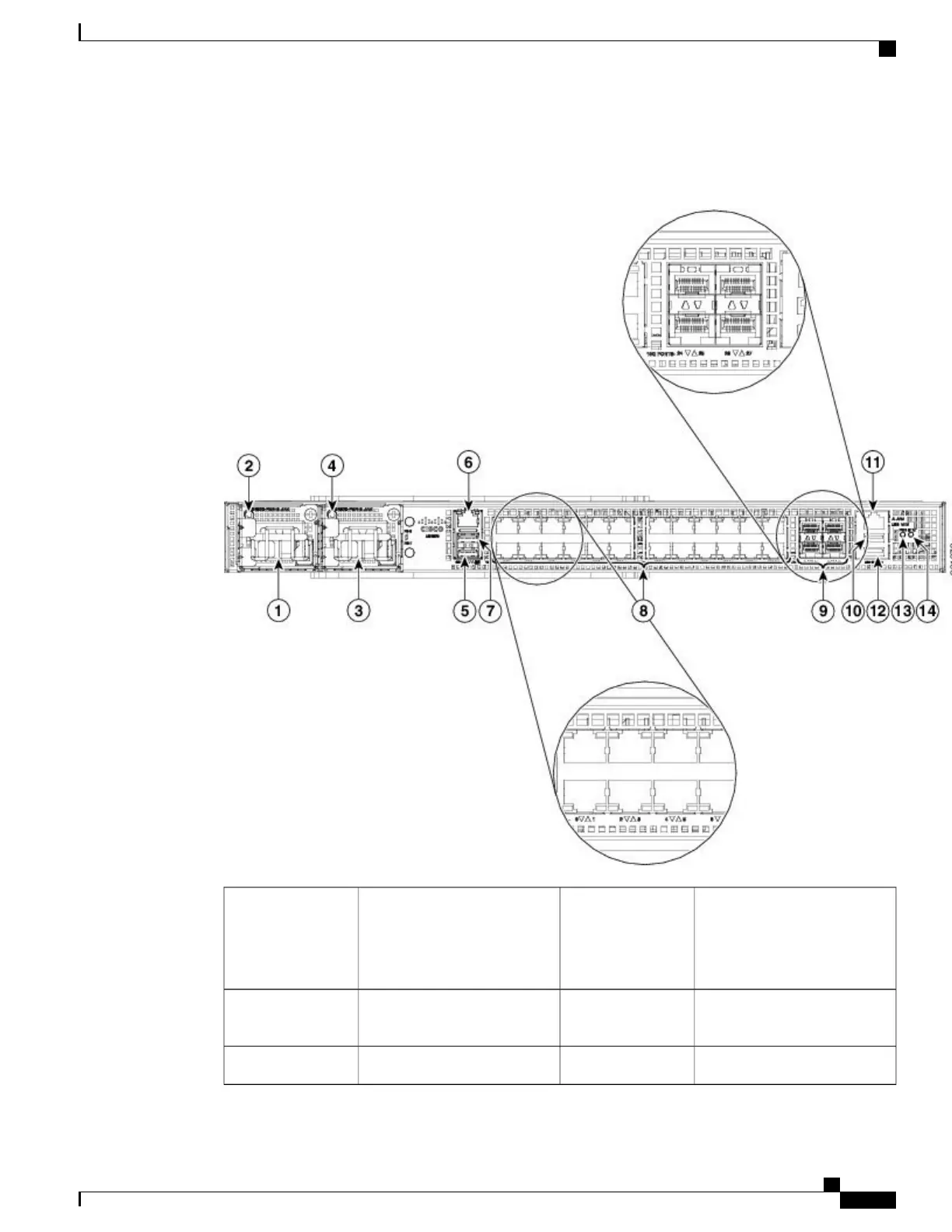

Figure 8: Front Panel of Cisco ASR-920-24SZ-M, ASR-920-24TZ-M Router
24x1GE SFP Fiber (Cisco
ASR-920-24SZ-M)
24x1GE SFP Copper (Cisco
ASR-920-24TZ-M)
8Power Supply 0 (AC or DC)1
4x10GE SFP+9Power Supply 0 LED (AC or
DC)
2
USB Memory port10Power Supply 1 (AC or DC)3
Cisco ASR-920-24SZ-IM, ASR-920-24SZ-M, ASR-920-24TZ-M Aggregation Services Router Hardware Installation
Guide
11
Overview
Front and Back Panel
