Step 2
Secure the fan tray to the chassis using the attached captive installation screws. The recommended maximum torque is
5.5 in.-lb (.62 N-m).

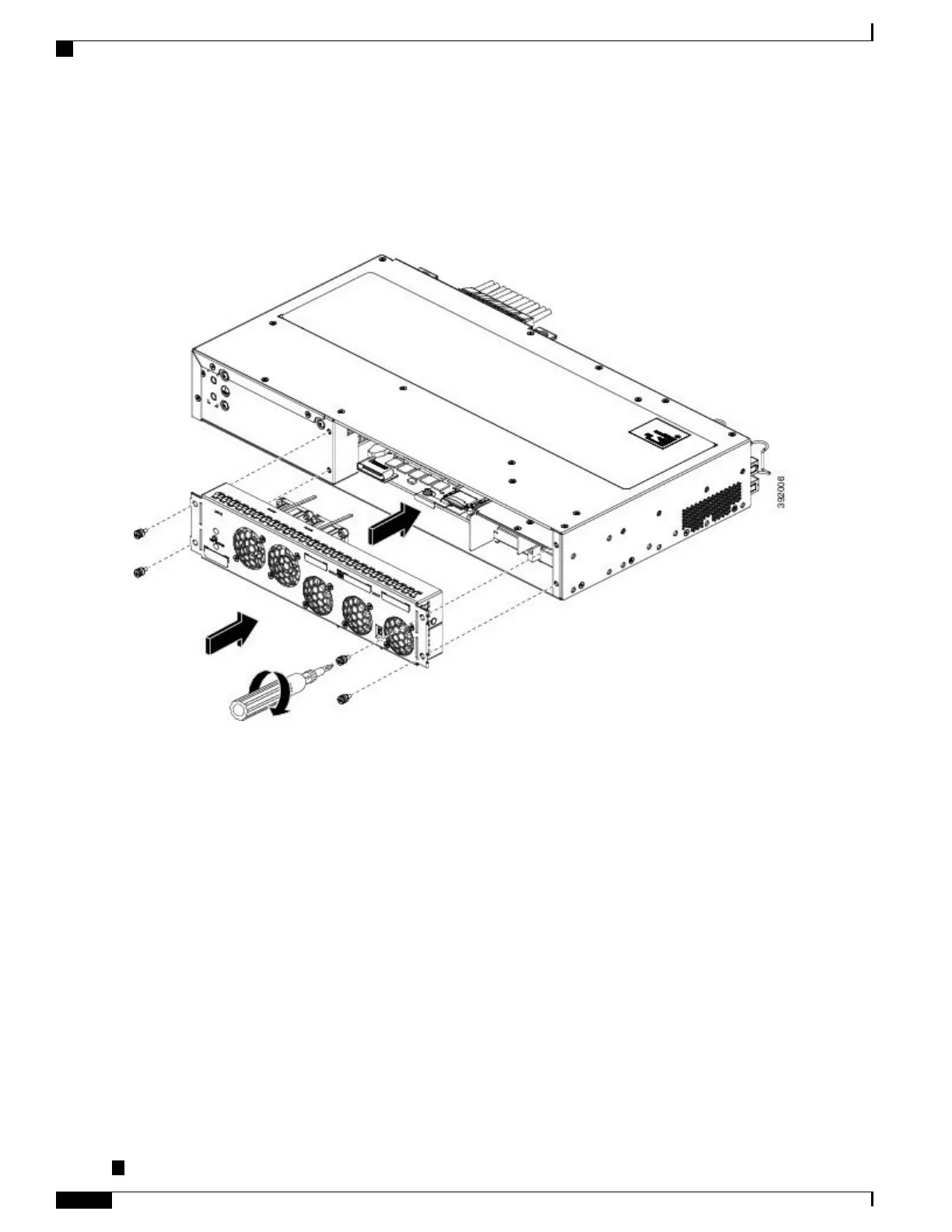

Figure 29: Installing the Fan Tray on Cisco ASR-920-24SZ-IM Router
Figure 30: Installing the Fan Tray on Cisco ASR-920-24SZ-M, ASR-920-24TZ-M Router
