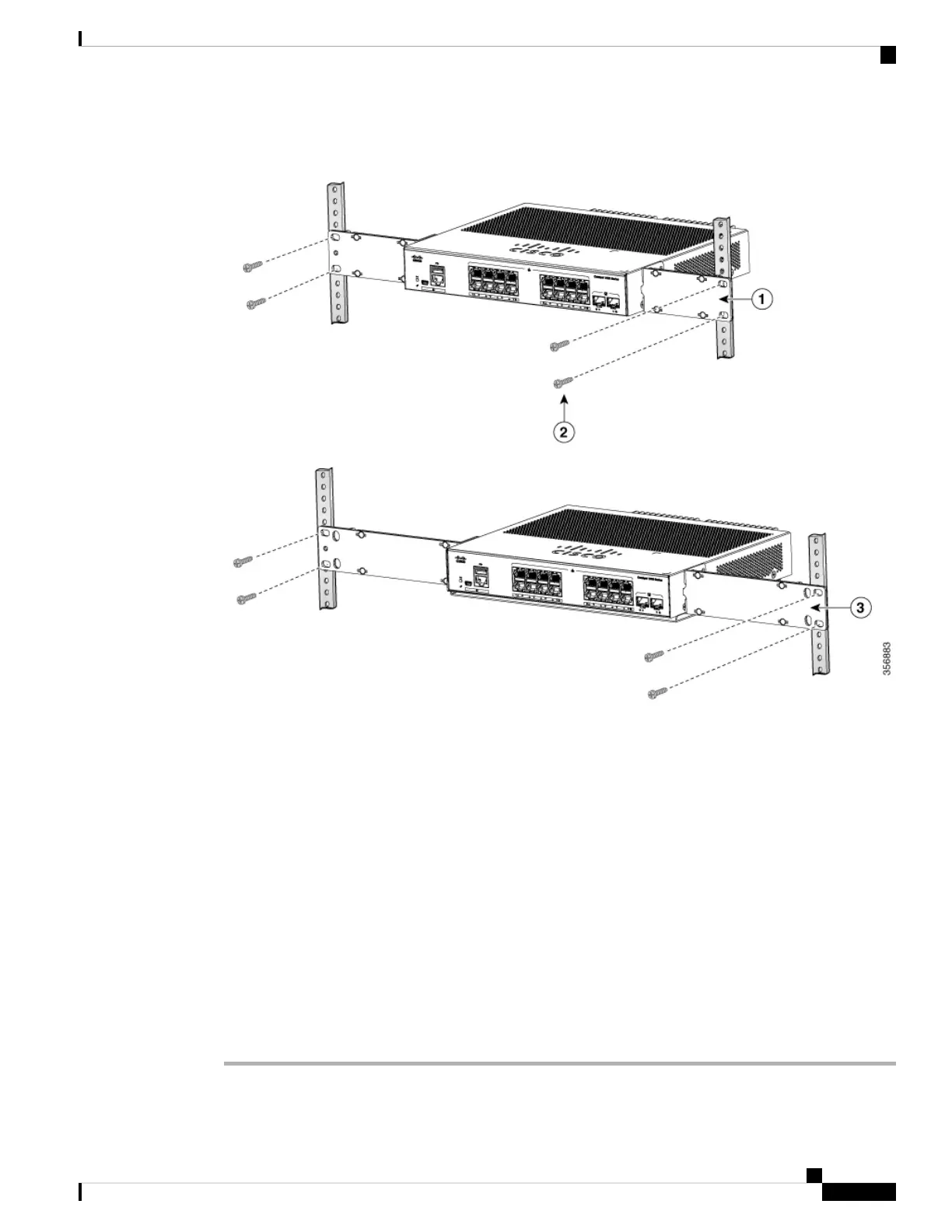

Figure 16: Mounting the Switch in a Rack
On a DIN Rail
The DIN-mount kit (part number CMPCT-DIN-MNT=) is optional only with Cisco Catalyst 1000 16-port
switch models. You can order it when you order your switch.
The DIN-mount kit contains:
• Two number-10 Phillips pan-head screws
• DIN rail mount
To install the switch on a DIN rail, follow the instructions described in these sections:
Attaching the DIN-Mount Tray to the Switch
Procedure
Step 1 Place the switch on the DIN rail mount.
Cisco Catalyst 1000 Series 8-Port and 16-Port Switch Hardware Installation Guide
25
Switch Installation
On a DIN Rail
