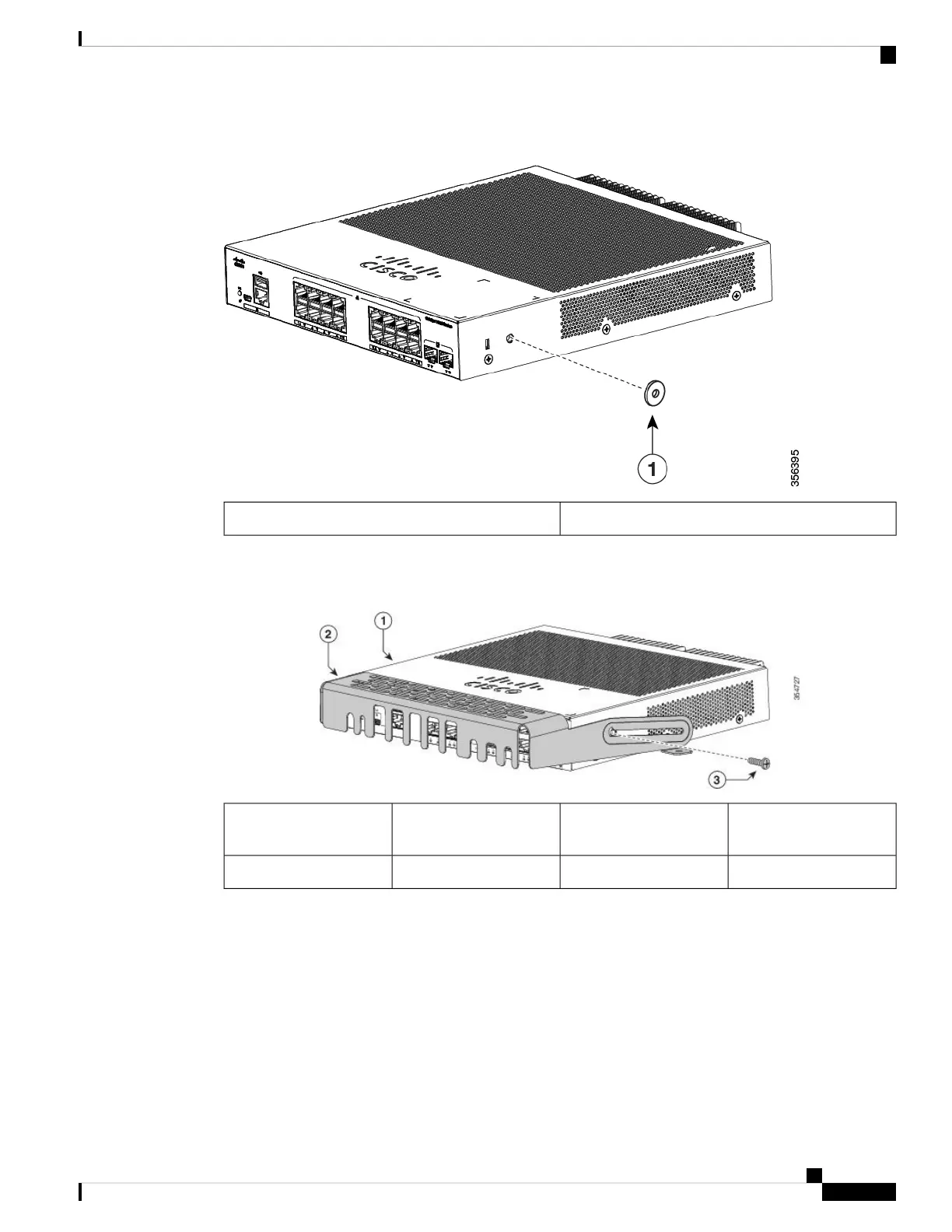

Figure 26: Using the Washer
Washer1
Step 2 Use the supplied number-10 pan-head screws to attach the cable guard to the switch.
Figure 27: Attaching the Cable Guard to the Switch
Two number-10 Phillips
pan-head screws
3Switch1
Cable Guard2
Step 3 Loosen the number-10 Phillips pan-head screws, slide the cable guide out, and pivot it upwards so that you
can install the cables.
Cisco Catalyst 1000 Series 8-Port and 16-Port Switch Hardware Installation Guide
33
Switch Installation
Installing the Cable Guard (Optional)
