Cisco C1111 8P Series User Manual

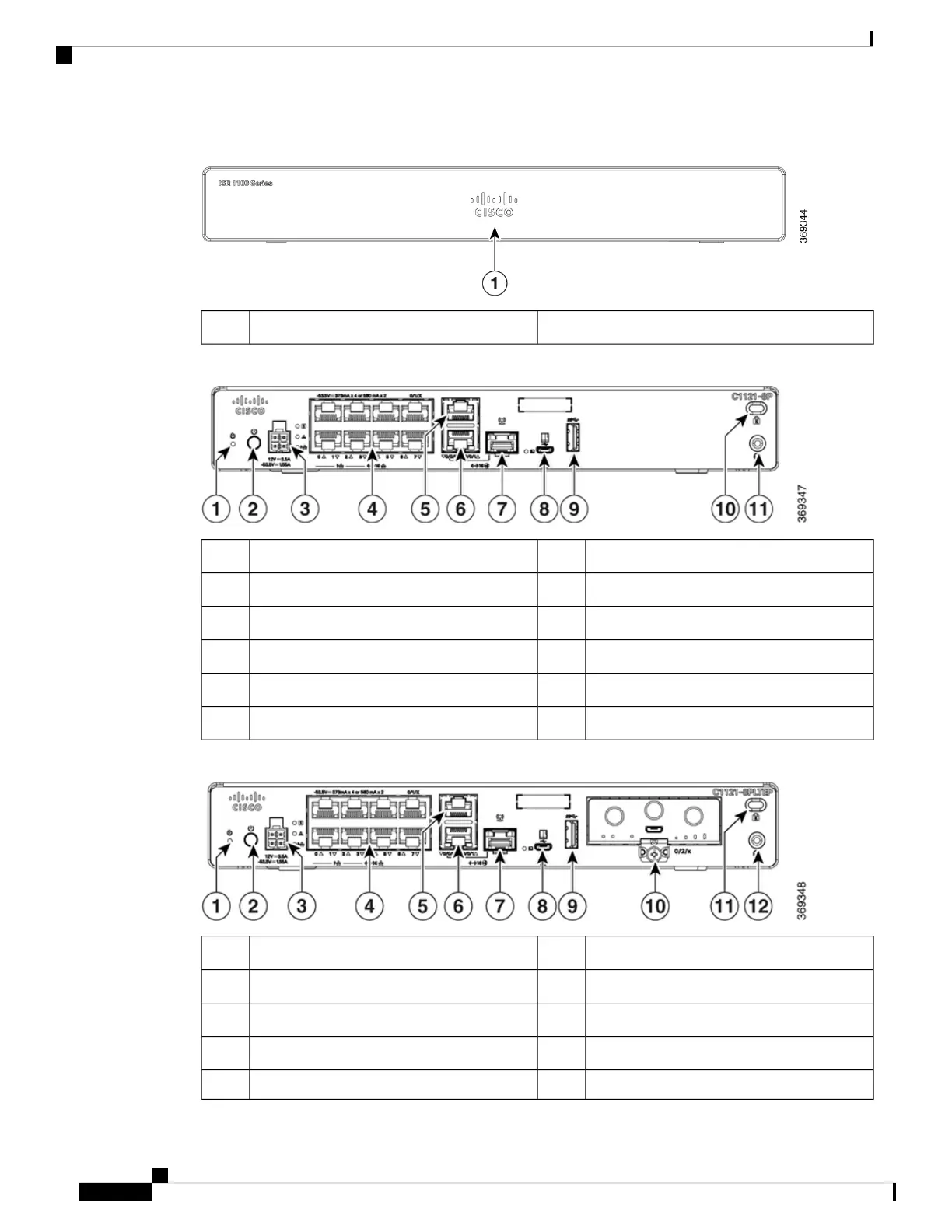

Figure 13: C1121(X)-8P - Bezel View
Non-illuminated Cisco logo1
Figure 14: C1121(X)-8P I/O View
Power Switch2Reset Button1
Ethernet Switch44-pin Power Connector3
GE WAN 0/0/0 -RJ456RJ-455
Micro-USB console8GE WAN 0/0/0 -SFP7
Kensington Lock Slot10USB 3.09
Grounding11
Figure 15: C1121-8PLTEP I/O View
Power Switch2Reset Button1
Ethernet Switch44-pin Power Connector3
GE WAN 0/0/0 -RJ456GE 0/0/15
Micro-USB console8GE WAN 0/0/0 -SFP7
Pluggable10USB 3.09
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
10
Overview of Cisco 1000 Series Integrated Services Routers
Chassis Views

Cisco C1111 8P Series Specifications

General

Product Series	Cisco 1100 Series
Model	C1111-8P
Form Factor	Desktop
Integrated Wi-Fi	No
Wireless	No
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Category	Router
WAN Ports	1 x GE
LAN Ports	8 x GE
Operating Temperature	32°F to 104°F (0°C to 40°C)
Remote Management Protocol	SNMP, HTTP, HTTPS
Features	Quality of Service (QoS), VLAN
