Wall Mount of the Antenna

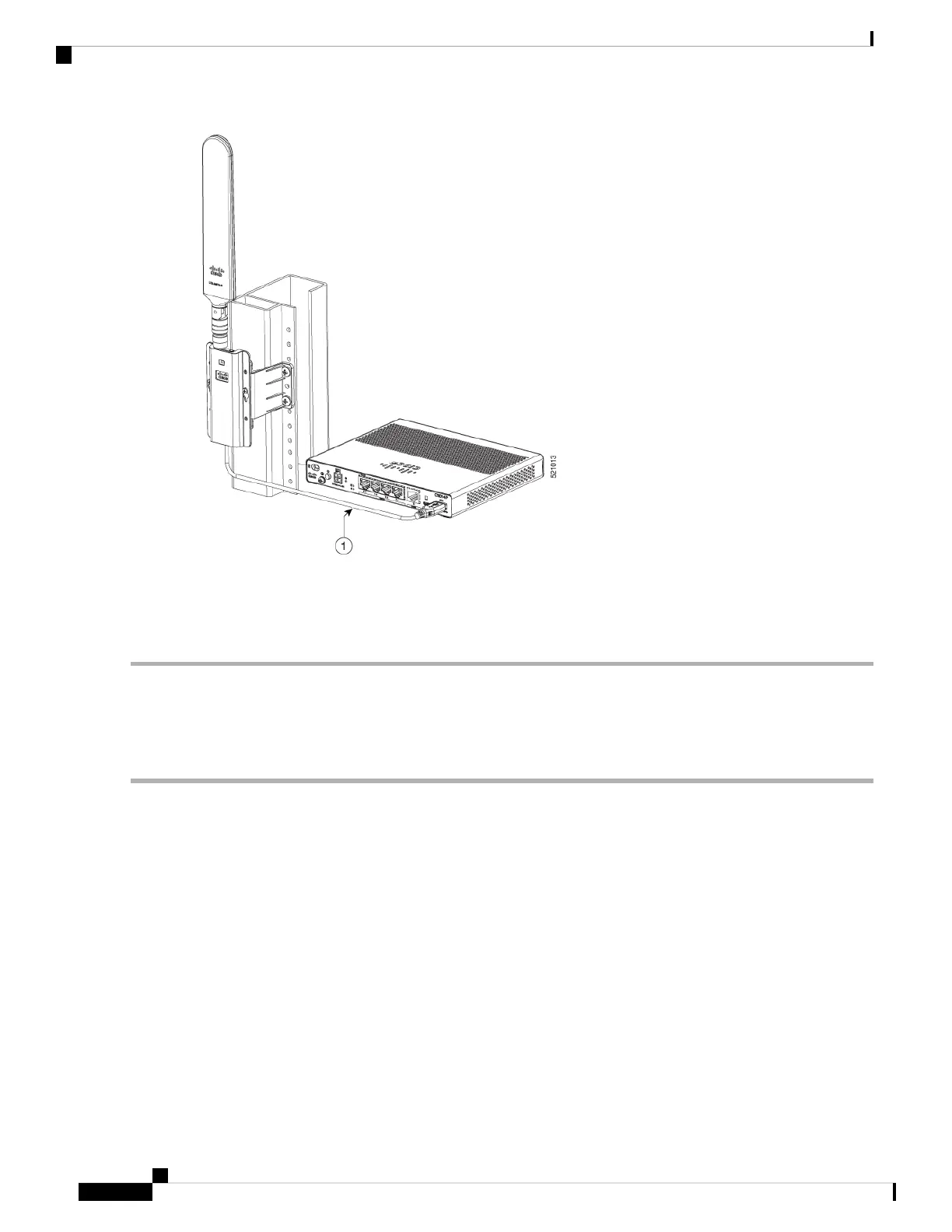

To install the antenna on a wall, do these steps:
Step 1 Pick up the C-Bracket (700-121628-01), place the bracket and then fix it on the wall using four screws.
Step 2 Assemble the USB cable (74-122795-01), dongle and antenna (07-100470-01) together. Pick up the wall-mount bracket
(700-121609-01), two SCREWS (48-0580-01). Align and fasten the screws (recommended torque is 10-12 in-lb), the
wall-mount is complete.
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
74
Install and Upgrade Internal Modules and Field Replaceable Units
Wall Mount of the Antenna

Cisco C1111 8P Series Specifications

General

Product Series	Cisco 1100 Series
Model	C1111-8P
Form Factor	Desktop
Integrated Wi-Fi	No
Wireless	No
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Category	Router
WAN Ports	1 x GE
LAN Ports	8 x GE
Operating Temperature	32°F to 104°F (0°C to 40°C)
Remote Management Protocol	SNMP, HTTP, HTTPS
Features	Quality of Service (QoS), VLAN
