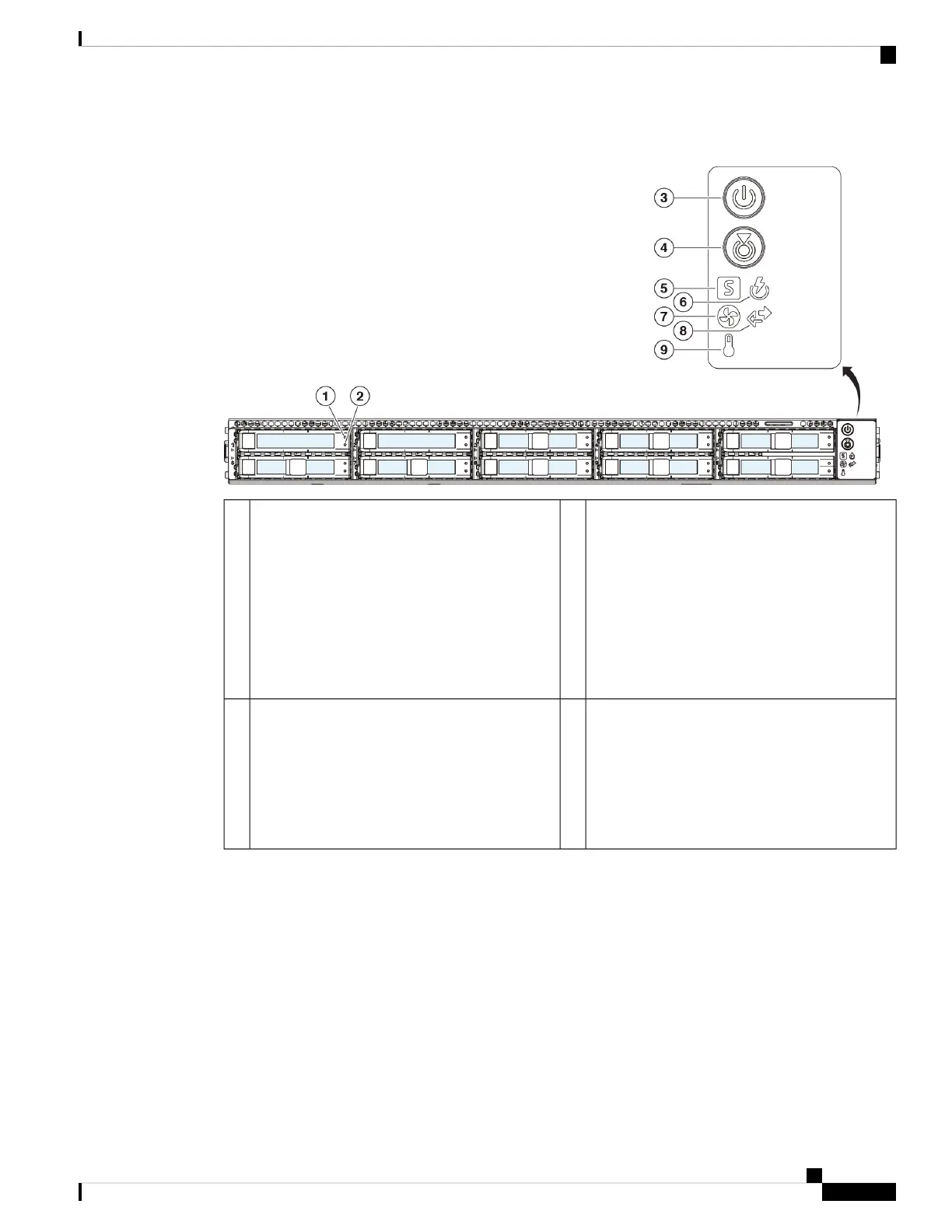

Figure 7: Front Panel LEDs and Their States
Drive activity LED:
• Off—There is no drive in the drive tray (no
access, no fault).
• Green—The drive is ready.
• Green, flashing—The drive is reading or
writing data.
2Drive fault LED:
• Off—The drive is operating properly.
• Amber—Drive fault detected.
• Amber, flashing—The drive is rebuilding.
• Amber, flashing with 1-second
interval—Drive locate function activated in
the software.
1
Unit identification LED:
• Off—The unit identification function is not
in use.
• Blue, flashing—The unit identification
function is activated.
4Power LED:
• Off—There is no AC power to the chassis.
• Amber—The chassis is in standby mode.
• Green—The chassis is in main power mode.
Power is supplied to all components.
3
Cisco Email Security Appliance C195, C395, C695, and C695F Hardware Installation Guide
9
Overview
Front Panel LEDs
