Serial console port (Console)
RJ-45 connector that directly connects a computer
to the appliance.
6RPC port (RPC)5
770-W AC power supply (PSU 1)8Unit identification button7
Threaded holes for dual-hole grounding lug
Use is optional. The supported AC power supplies
have internal grounding, so no additional chassis
grounding is required.
10770-W AC power supply (PSU 2)9
Gigabit Ethernet customer data interface (DATA
2)
12Gigabit Ethernet customer data interface (DATA
1)
11
Gigabit Ethernet customer data interface (DATA
4)
14Gigabit Ethernet customer data interface (DATA
3)
13
—Riser handle
Not supported
15

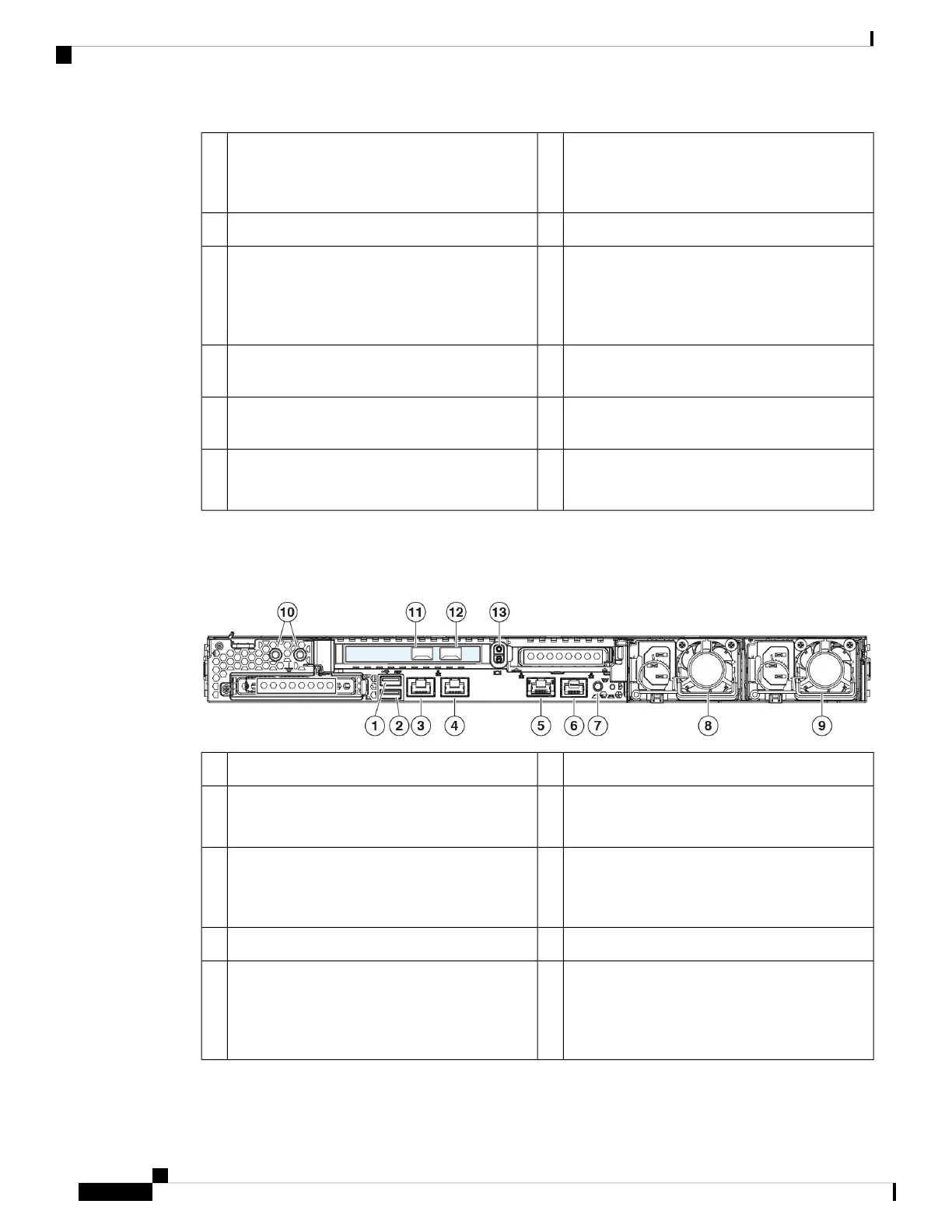

The following figure shows the rear panel of the ESA C695F. See Rear Panel LEDs, on page 13 for a
description of the LEDs.
Figure 10: C695F Rear Panel
USB 3.0 Type A (USB 2)2USB 3.0 Type A (USB 1)1
Data interface (DATA 1)4Management interface (MGMT)
Restricted to management use only
3
Serial console port (Console)
RJ-45 connector that directly connects a computer
to the appliance.
6RPC port (RPC)5
770-W AC power supply (PSU 1)8Unit identification button7
Threaded holes for dual-hole grounding lug
Use is optional. The supported AC power supplies
have internal grounding, so no additional chassis
grounding is required.
10770-W AC power supply (PSU 2)9
