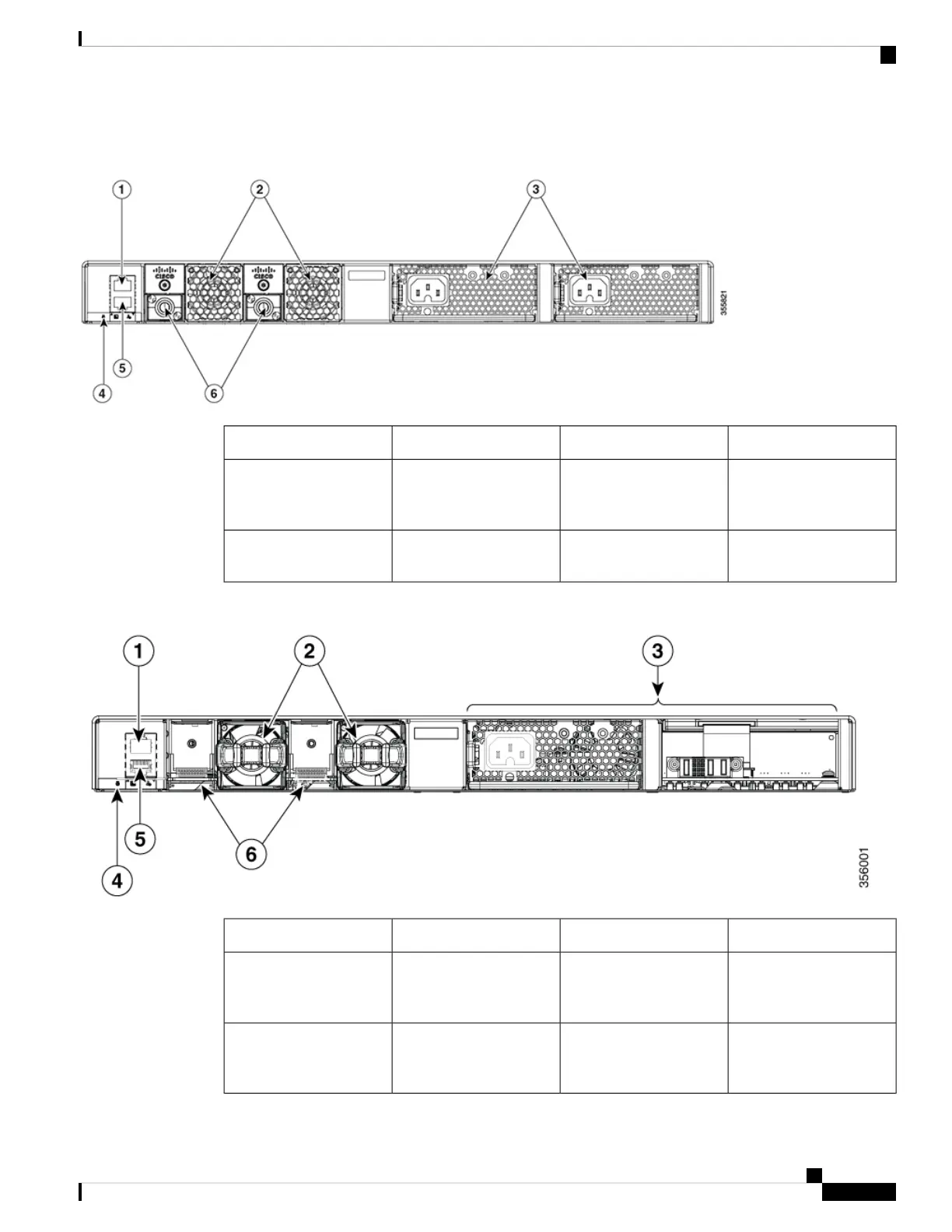

Figure 5: Rear Panel of a C9200L Switch
Blue Beacon LED4RJ-45 console port1
MGMT (RJ-45
10/100/1000 management
port)
5Fixed fan modules on
C9200L switches
2
StackWise-80 port
connectors
6Power supply module
slots
3
Figure 6: Rear Panel of a C9200 Switch
Blue Beacon LED4RJ-45 console port1
MGMT (RJ-45
10/100/1000 management
port)
5Modular fan modules on
C9200 switches
2
StackWise-160 port
connector slots with stack
blanks installed
6Power supply module
slots
3
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
7
Product Overview
Rear Panel

Cisco C9200L-24P-4G Specifications

General

Model	C9200L-24P-4G
Category	Switch
Ports	24 x 10/100/1000 (PoE+)
Switching Capacity	128 Gbps
Power Budget	370W
Layer	Layer 3
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Power Over Ethernet (PoE)	PoE+
RAM	4 GB
Flash Memory	4 GB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Routing Protocol	OSPF, EIGRP, BGP, IS-IS, RIP
Remote Management Protocol	SNMP 1, SNMP 3, CLI, HTTP, SSH
Features	VLAN support, DHCP support, Quality of Service (QoS), IGMP snooping
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.1s, IEEE 802.1w
Operating Temperature	0 to 45 °C
Operating Humidity	5% to 95% (non-condensing)
