Cisco C9200L-24P-4G User Manual

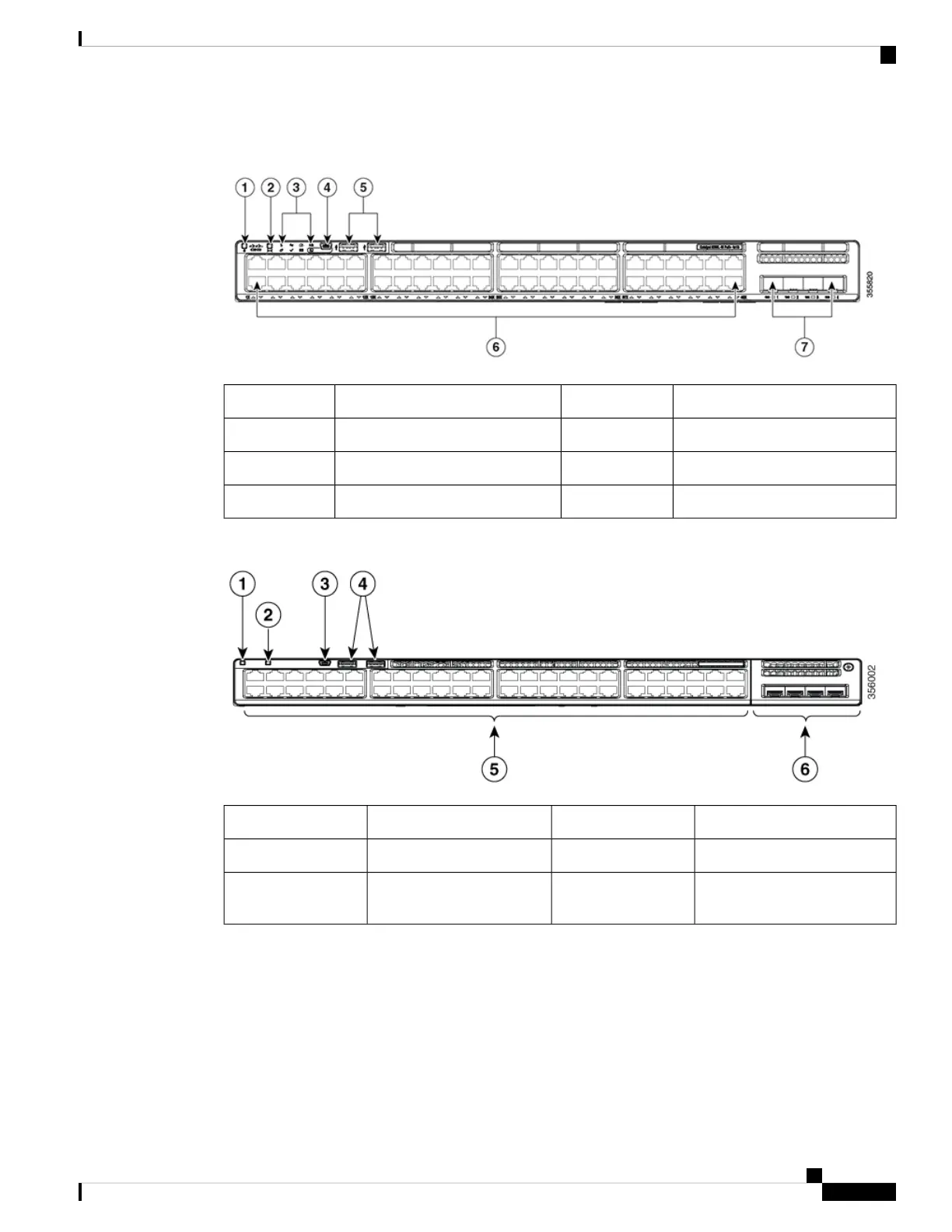

Figure 1: Front Panel of a C9200L Switch
USB Type A storage ports5Blue Beacon (UID button)1
10/100/1000 PoE+ ports6Mode button2
Fixed uplink ports7Status LEDs3
USB mini-Type B (console) port4
Figure 2: Front Panel of a C9200 Switch
USB Type A storage ports4Blue Beacon (UID button)1
10/100/1000 PoE+ ports5Mode button2
Network Module with uplink
ports
6USB mini-Type B (console)
port
3
10/100/1000 Ports
The 10/100/1000 ports use RJ-45 connectors with Ethernet pinouts. The maximum cable length is 328 feet
(100 meters). The 100BASE-TX and 1000BASE-T traffic requires twisted pair (UTP) cable of Category 5
or higher. The 10BASE-T traffic can use Category 3 cable or higher.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
3
Product Overview
10/100/1000 Ports

Cisco C9200L-24P-4G Specifications

General

Model	C9200L-24P-4G
Category	Switch
Ports	24 x 10/100/1000 (PoE+)
Switching Capacity	128 Gbps
Power Budget	370W
Layer	Layer 3
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Power Over Ethernet (PoE)	PoE+
RAM	4 GB
Flash Memory	4 GB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Routing Protocol	OSPF, EIGRP, BGP, IS-IS, RIP
Remote Management Protocol	SNMP 1, SNMP 3, CLI, HTTP, SSH
Features	VLAN support, DHCP support, Quality of Service (QoS), IGMP snooping
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.1s, IEEE 802.1w
Operating Temperature	0 to 45 °C
Operating Humidity	5% to 95% (non-condensing)
