Cisco C9200L-24P-4G User Manual

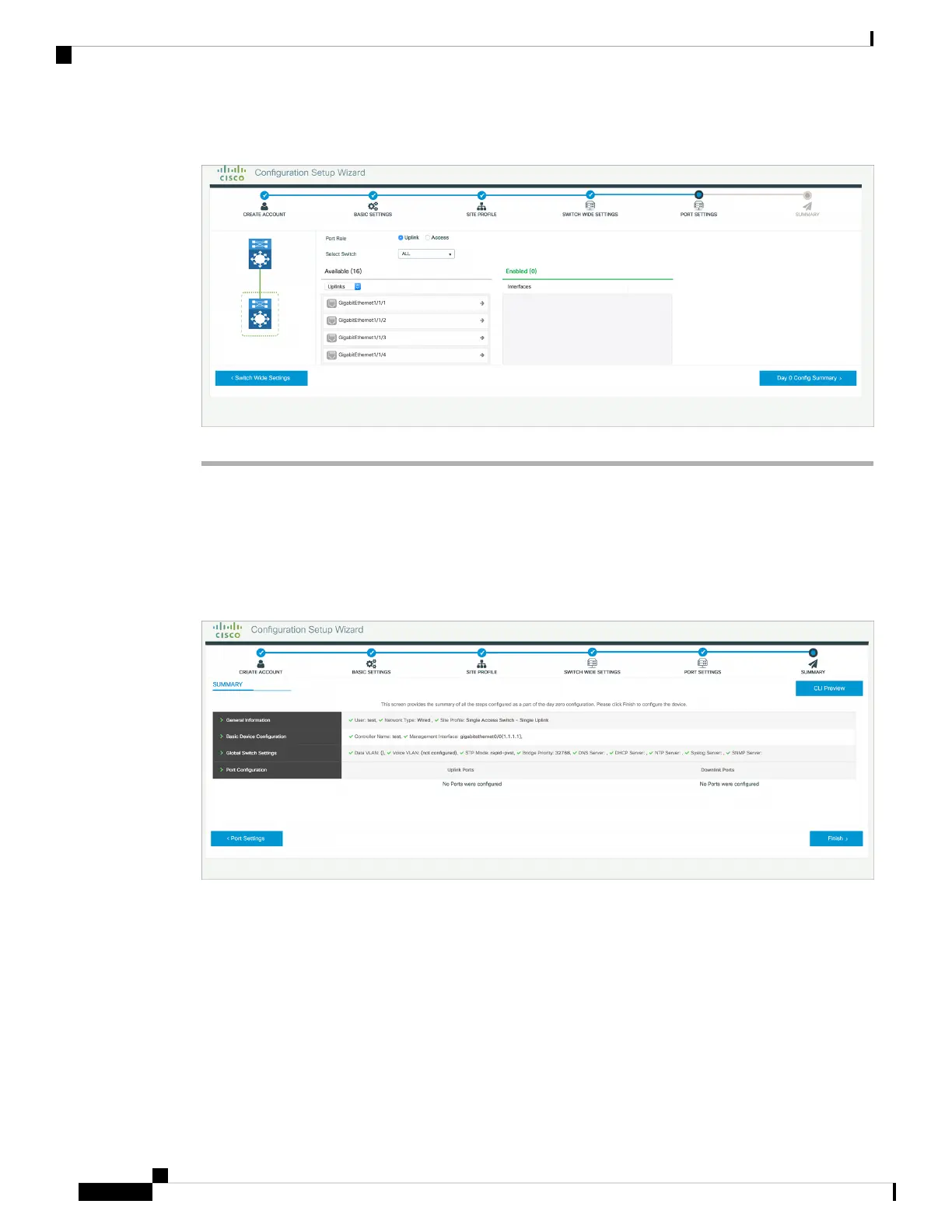

Figure 44: Port Settings
What to do next
• Click Day 0 Config Summary to verify your setup.
• Click Finish.
Figure 45: Day 0 Config Summary
Configuring the Switch Using the CLI
Accessing the CLI Through the Console Port
You can access the CLI on a configured or unconfigured switch by connecting the RJ-45 console port or USB
console port of the switch to your PC or workstation and accessing the switch through a terminal emulation
program.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
62
Configuring the Switch
Configuring the Switch Using the CLI

Cisco C9200L-24P-4G Specifications

General

Model	C9200L-24P-4G
Category	Switch
Ports	24 x 10/100/1000 (PoE+)
Switching Capacity	128 Gbps
Power Budget	370W
Layer	Layer 3
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Power Over Ethernet (PoE)	PoE+
RAM	4 GB
Flash Memory	4 GB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Routing Protocol	OSPF, EIGRP, BGP, IS-IS, RIP
Remote Management Protocol	SNMP 1, SNMP 3, CLI, HTTP, SSH
Features	VLAN support, DHCP support, Quality of Service (QoS), IGMP snooping
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.1s, IEEE 802.1w
Operating Temperature	0 to 45 °C
Operating Humidity	5% to 95% (non-condensing)
