Cisco Catalyst 2960-L User Manual

Mounting on a Wall
For the best support of the switch and cables, make sure that the switch is attached securely to wall studs or
to a firmly attached plywood-mounting backboard. Mount the switch with the front panel facing down.
Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware
or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
Statement 378
Warning
Following safety regulations, wall-mount the switch with its front panel facing down.
Caution

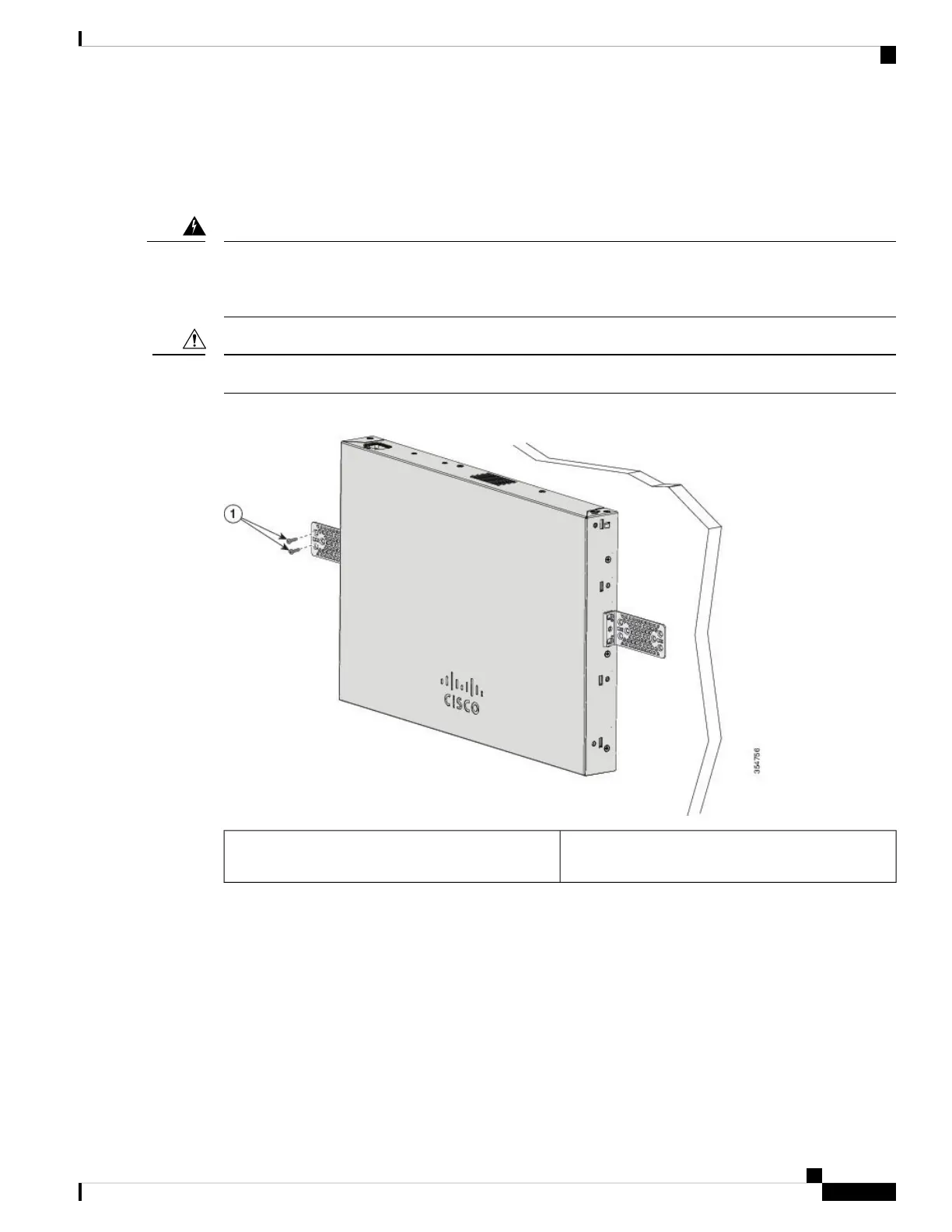

Figure 6: Mounting on a Wall
User-supplied screws (for example, you can use # 6
wood screws with a washer head 1-inch long).
1
When you complete the switch installation, see After Switch Installation, on page 12 for information on
switch configuration.
Installing the Switch on a Table or Shelf
SUMMARY STEPS
1. To install the switch on a table or shelf, locate the adhesive strip with the rubber feet in the mounting-kit
envelope.
2. Attach the four rubber feet to the four circular etches on the bottom of the chassis.
Switch Installation
11
Switch Installation
Mounting on a Wall

Cisco Catalyst 2960-L Specifications

General

Subtype	Gigabit Ethernet
Power Device	Internal power supply
Stacking	Not supported
Model	Catalyst 2960-L
Uplink Interfaces	4 x Gigabit SFP
Power Supply	Internal
Device Type	Switch
Routing Protocol	Static IP routing
Features	VLAN support, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1w, IEEE 802.1s
Memory	256 MB Flash
Dimensions	1.73 in x 17.5 in x 9.4 in
Operating Temperature	32 to 113°F (0 to 45°C)
