Wall-Mounting
Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware
or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
Statement 378
Warning
Attaching the Brackets for Wall-Mounting
SUMMARY STEPS
1. Attach a 19-inch bracket to one side of the switch.
2. Follow the same steps to attach the second bracket to the opposite side.
DETAILED STEPS
Step 1 Attach a 19-inch bracket to one side of the switch.
Step 2 Follow the same steps to attach the second bracket to the opposite side.

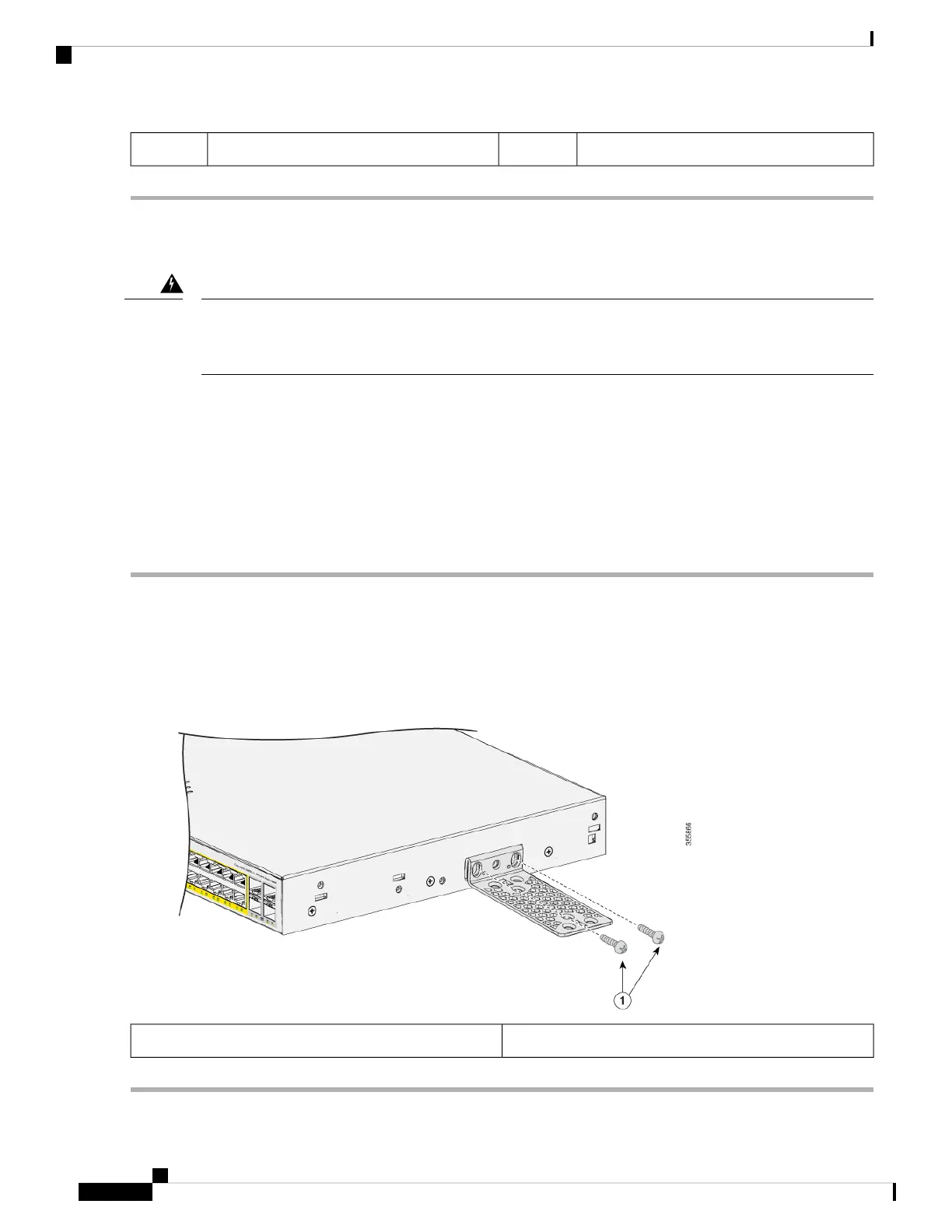

Figure 5: Attaching the 19-inch Brackets for Wall-Mounting
Number-8 phillips flat-head screws (48-2927-01)1
