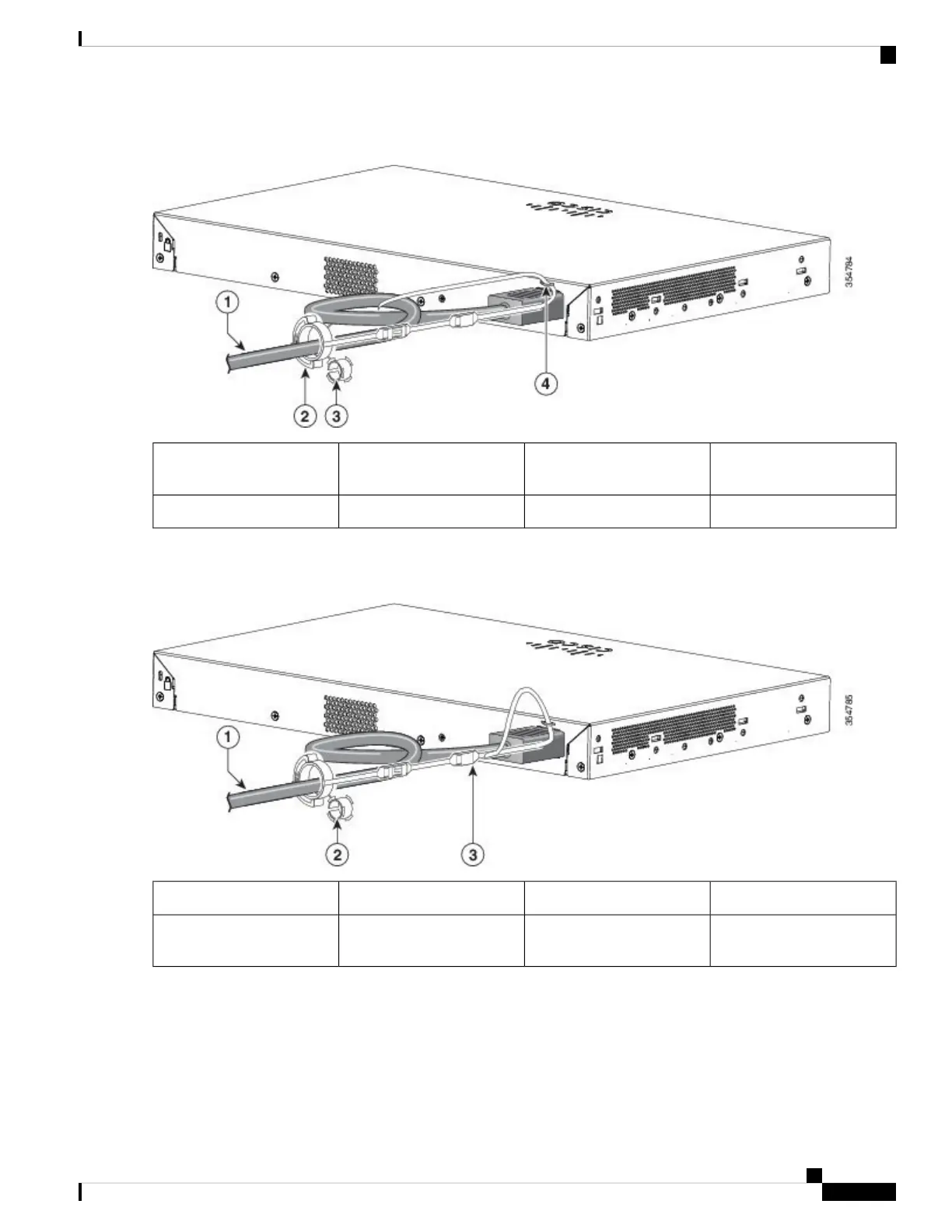

Figure 7: Inserting the Retainer Through the Lanced Loop
Sleeve for thinner power
cords
3AC power cord1
Loop4Power cord retainer2
Step 3 Slide the retainer through the first latch.
Figure 8: Sliding the Retainer Through the Latch
Latch3AC power cord1
Smaller sleeve for thin power
cords
2
Step 4 Slide the retainer through the other latches to lock it.
Switch Installation
13
Switch Installation
Installing the Power Cord Retainer (Optional)
