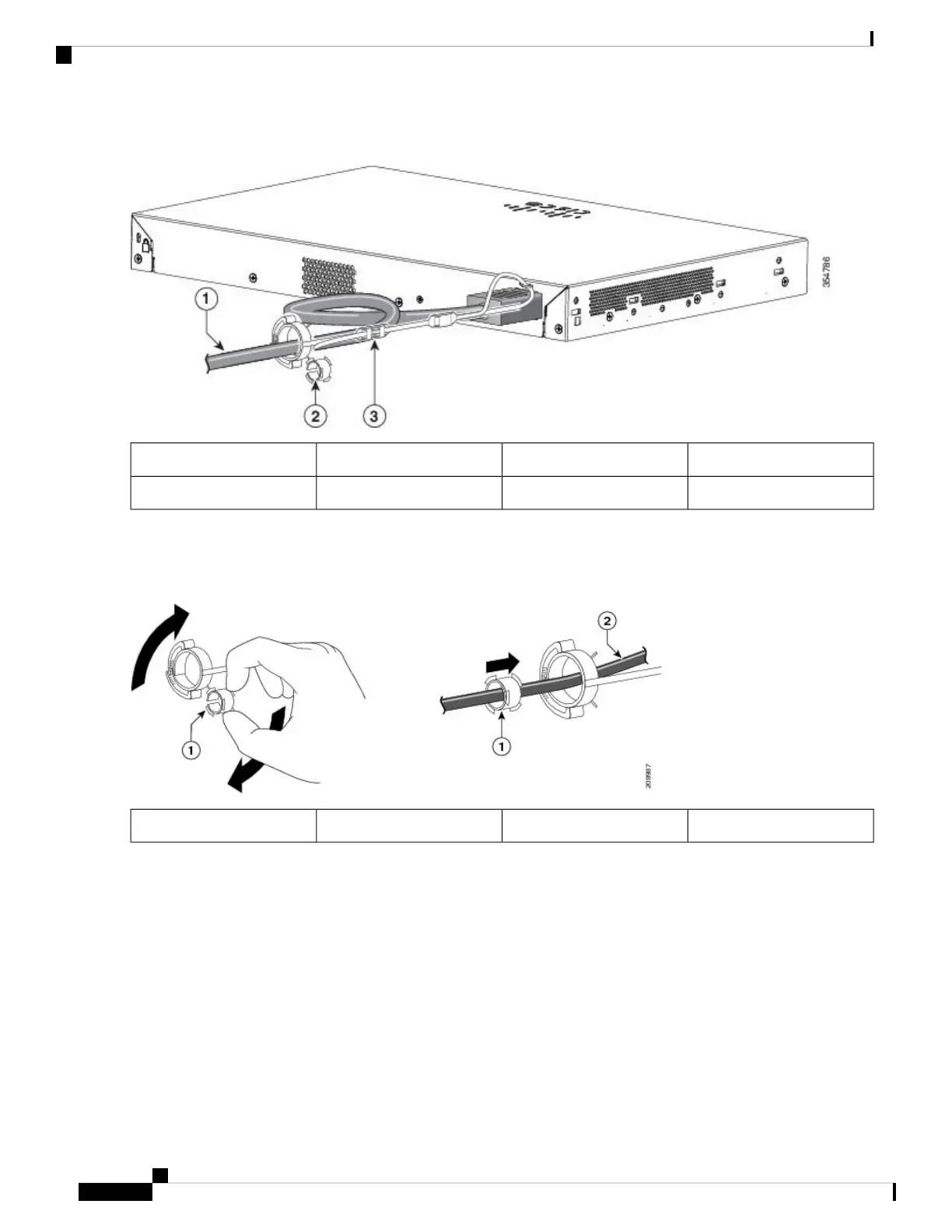

Figure 9: Locking the Retainer
Latches3AC power cord1
Sleeve for thin power cords2
Step 5 (Optional) Use the small sleeve for thin power cords. Use the small sleeve to provide greater stability for thin cords.
Detach the sleeve, and slide it over the power cord.
Figure 10: Sleeve Around the Power Cord
AC power cord2Sleeve for thin power cords1
Step 6 Secure the AC power cord by pressing on the retainer.
Switch Installation
14
Switch Installation
Installing the Power Cord Retainer (Optional)
