Step 5 From the I/O Module Tasks menu, click Configuration.
Step 6 In the I/O Module Configuration section, click the bay number that corresponds to the
location of the I/O module (switch module) that you are configuring. The applicable bay
number appears in the window, followed by other related I/O-module information, including
the IP address. The I/O-module information is divided into two sections: Current IP
Configuration and New Static IP Configuration (Figure 7).

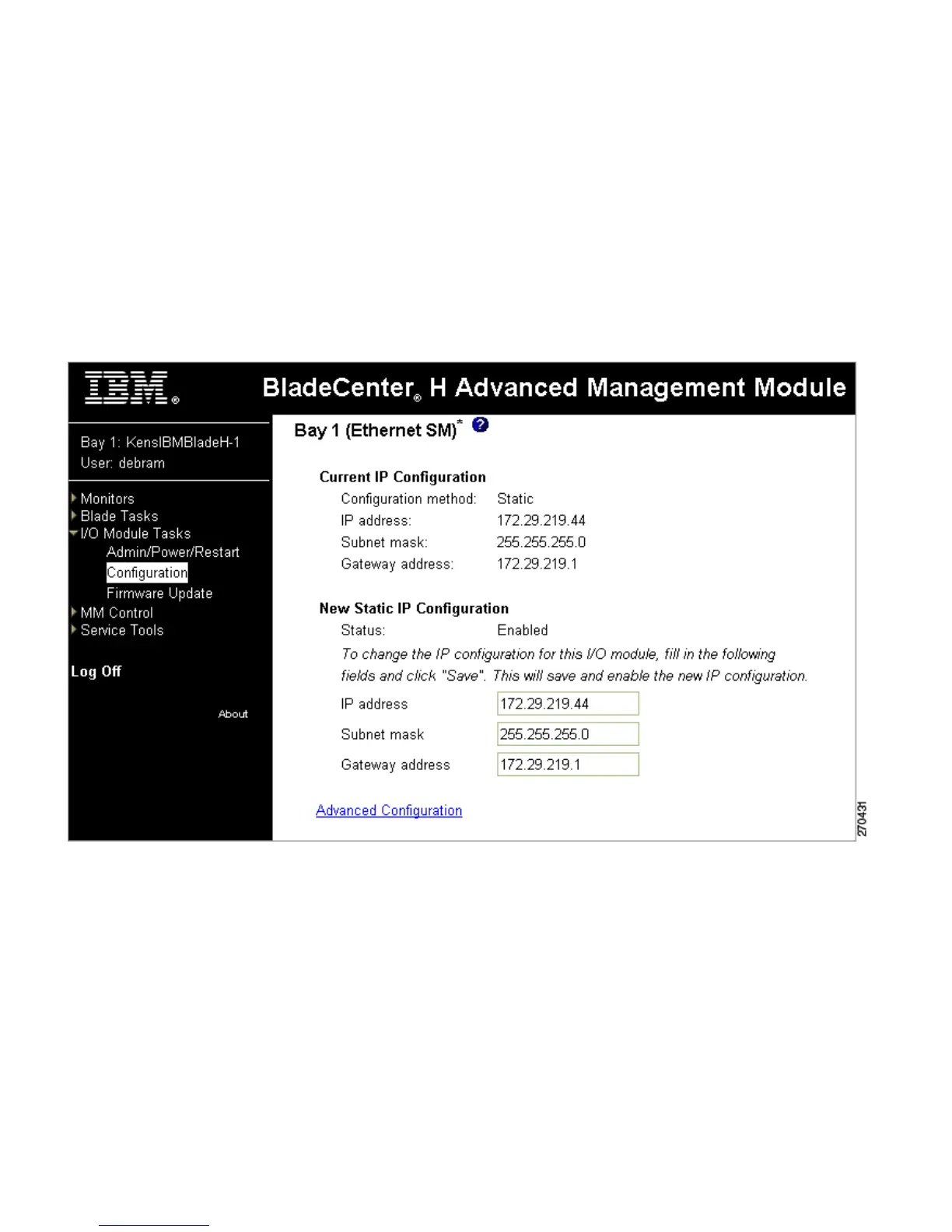

Figure 7 AMM I/O Module Configuration Window
Step 7 In the New Static IP Configuration section, enter the new IP address, the subnet mask, and
the gateway address. Click Save.
The IP address for the I/O module must be on the same subnet as the management module.
The management module does not check for invalid IP addresses.
