CW9166I Top View

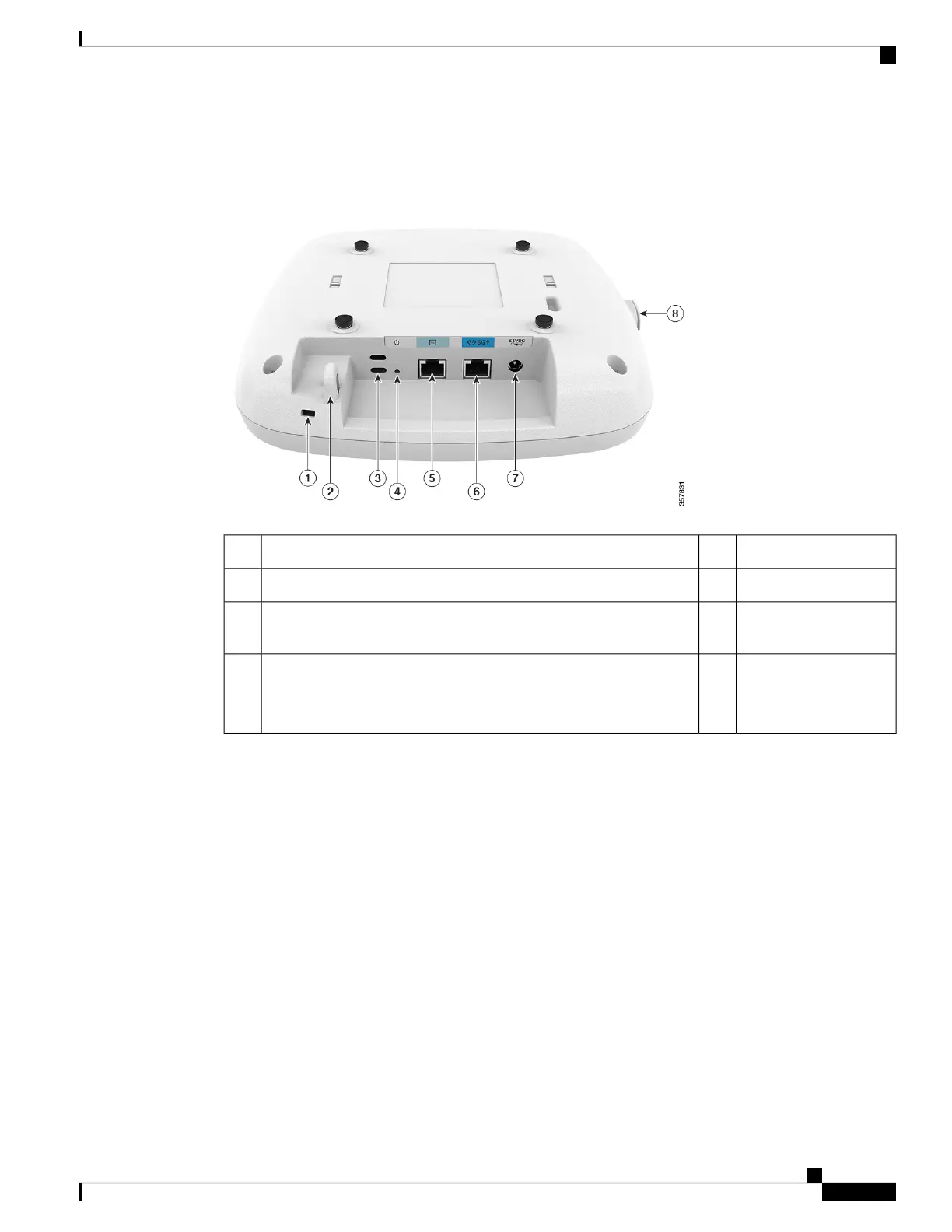

Figure 2: CW9166I Top View with Connectors and Ports
RJ-45 console port5Kensington lock slot1
5GbE port6Security hasp for padlocking AP to mounting bracket2
DC 54V power input
port
7Environment Sensor vents3
USB 2.0 port8Mode button
For information on how to use the Mode button, see the Using the
Mode Button section
4
CW9166I (Internal Antenna) Radiation Patterns
The following illustrations show the CW9166I model with internal antenna radiation patterns:
