Cisco Catalyst 9200CX Compact Series User Manual

Procedure
Step 1 Place the DIN rail mount on the DIN rail, making sure that the top of the DIN rail mount clip hooks over the
top of the DIN rail.
Step 2 Sliding the release tab downwards, hook the clip on to the rail and release the tab until the rail mount clip
locks into place with a click.

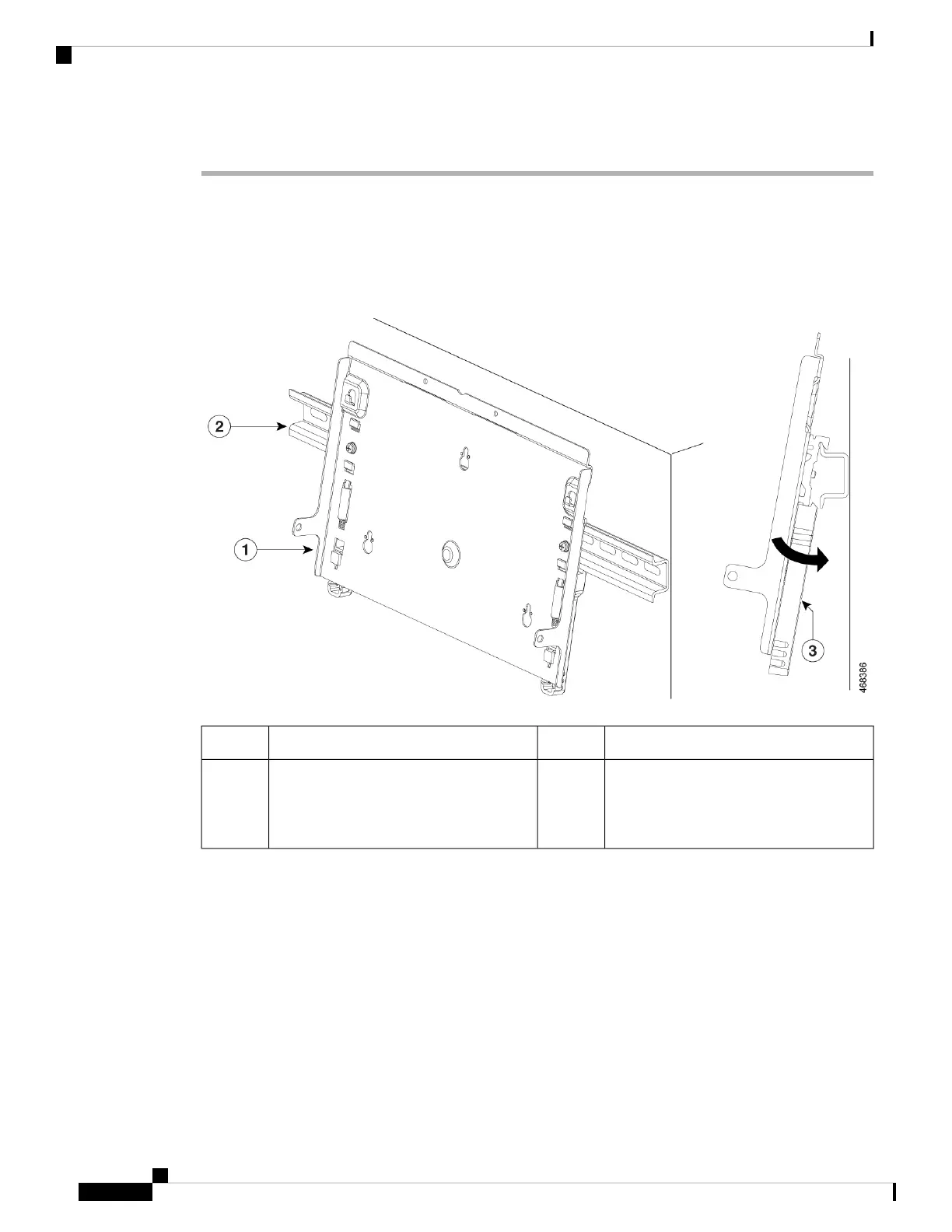

Figure 17: Attaching the DIN Rail Mount to the DIN Rail
Release tab3DIN rail mount1
--DIN rail
Note that the DIN rail is not
part of the DIN Rail Mount kit.
Note
2
Step 3 Place the switch on to the DIN rail mount and secure it using the two 10-32 Phillips pan-head screws.
Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide
36
Installing a Compact Switch
Mounting the Switch on a DIN Rail

Cisco Catalyst 9200CX Compact Series Specifications

General

Model	Cisco Catalyst 9200CX Compact Series
Software	Cisco IOS XE
Power over Ethernet (PoE)	No
Stacking	Not supported
Weight	5.0 lb (2.3 kg)
Form Factor	Compact
Management	WebUI, CLI, SNMP, Cisco DNA Center
Power Supply	Internal power supply
Memory	4 GB DRAM
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	5% to 90% noncondensing
Ports	8, 12, or 24 10/100/1000BASE-T ports
Dimensions	1.73 x 10.5 x 9.45 in. (4.4 x 26.7 x 24 cm)
