Procedure
Step 1 Place one side of the magnet against the bottom of the mounting tray.

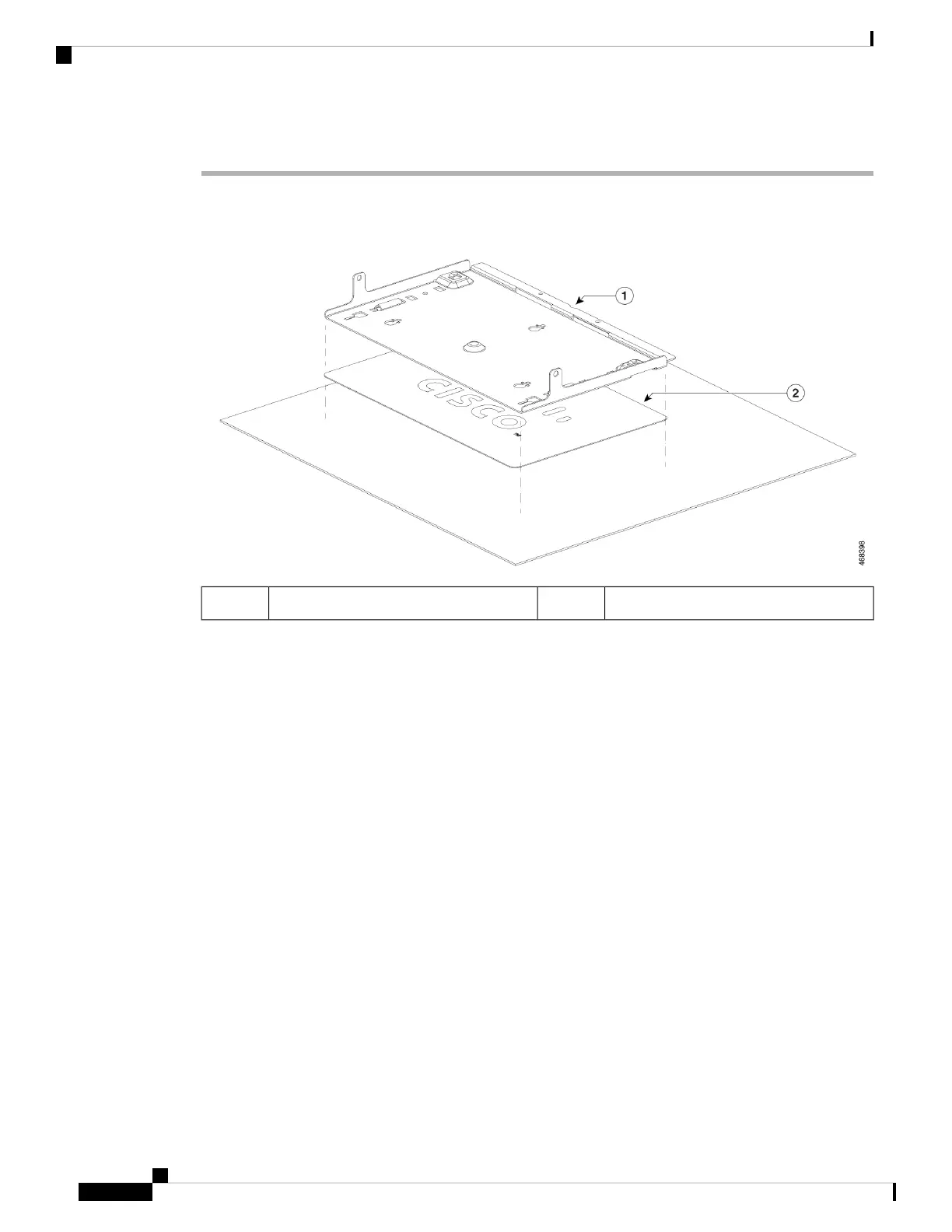

Figure 5: Placing the Mounting Tray on the Magnet
Magnet2Mounting tray1
Step 2 Slide the switch slightly forward after placing on to the mounting tray so that the mounting tray hooks engage
with the switch.
Installing a Compact Switch
8
Installing a Compact Switch
Mounting using the Mounting Tray and Magnet
