Cisco Catalyst 9606R

AC Power Supply Module

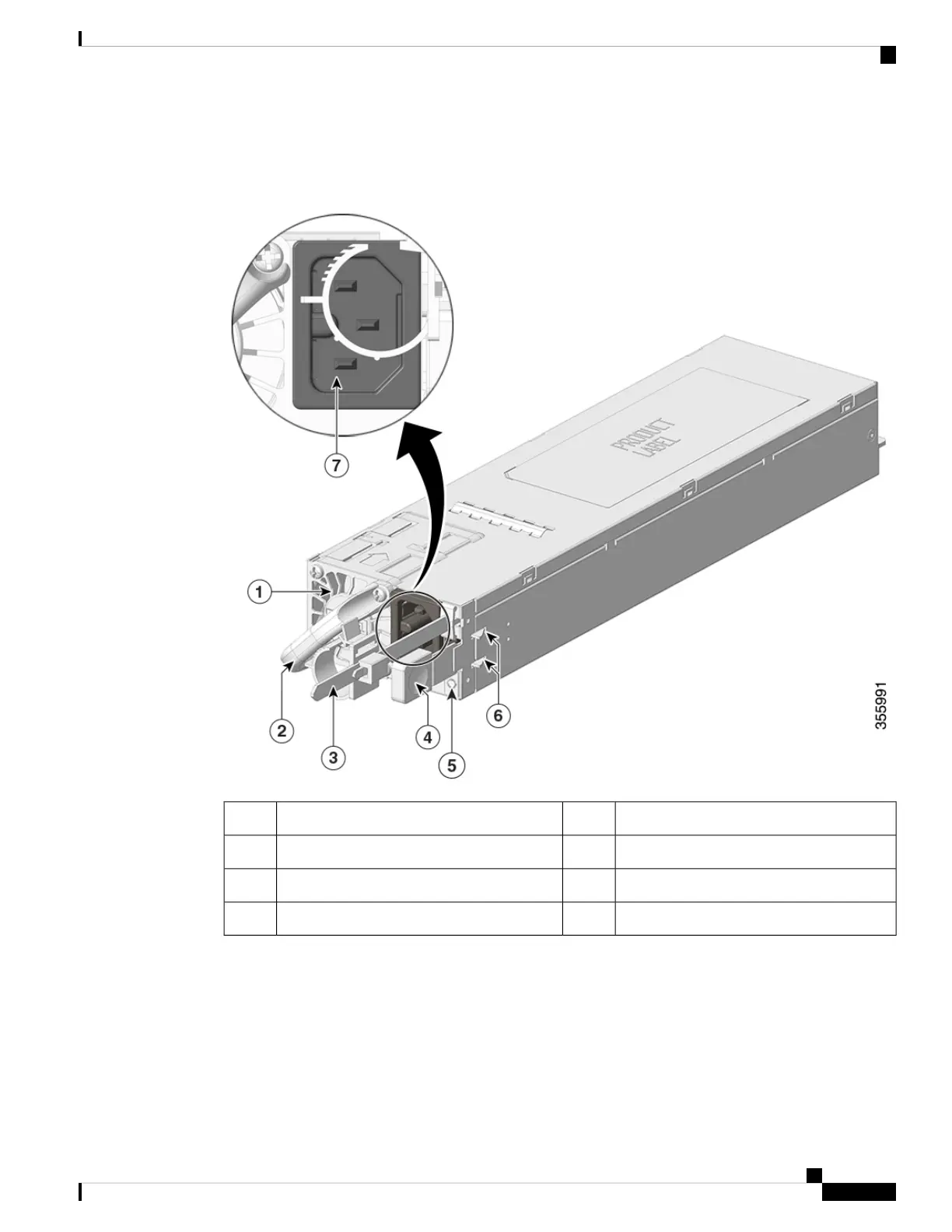

Figure 4: Cisco Catalyst 9600 Series 2000W AC Power Supply
Status LED5PSU fan1
Retainer clips6Release handle2
Power cord connector7Power cord retainer3
--Release latch4
The following are the features supported by a Cisco Catalyst 9600 Series AC power supply module:
• Self-cooling, with a minimum airflow of 17 cubic feet per minute (CFM) at 100 percent load.
• Supports only single-phase source AC. Source AC can be out of phase between multiple power supplies
or multiple AC-power plugs on the same power supply because all AC power supply inputs are isolated.
• Has a release latch and cord-retention mechanism on the front panel of the module, to avoid accidental
removal of the module or the attached power cord.
