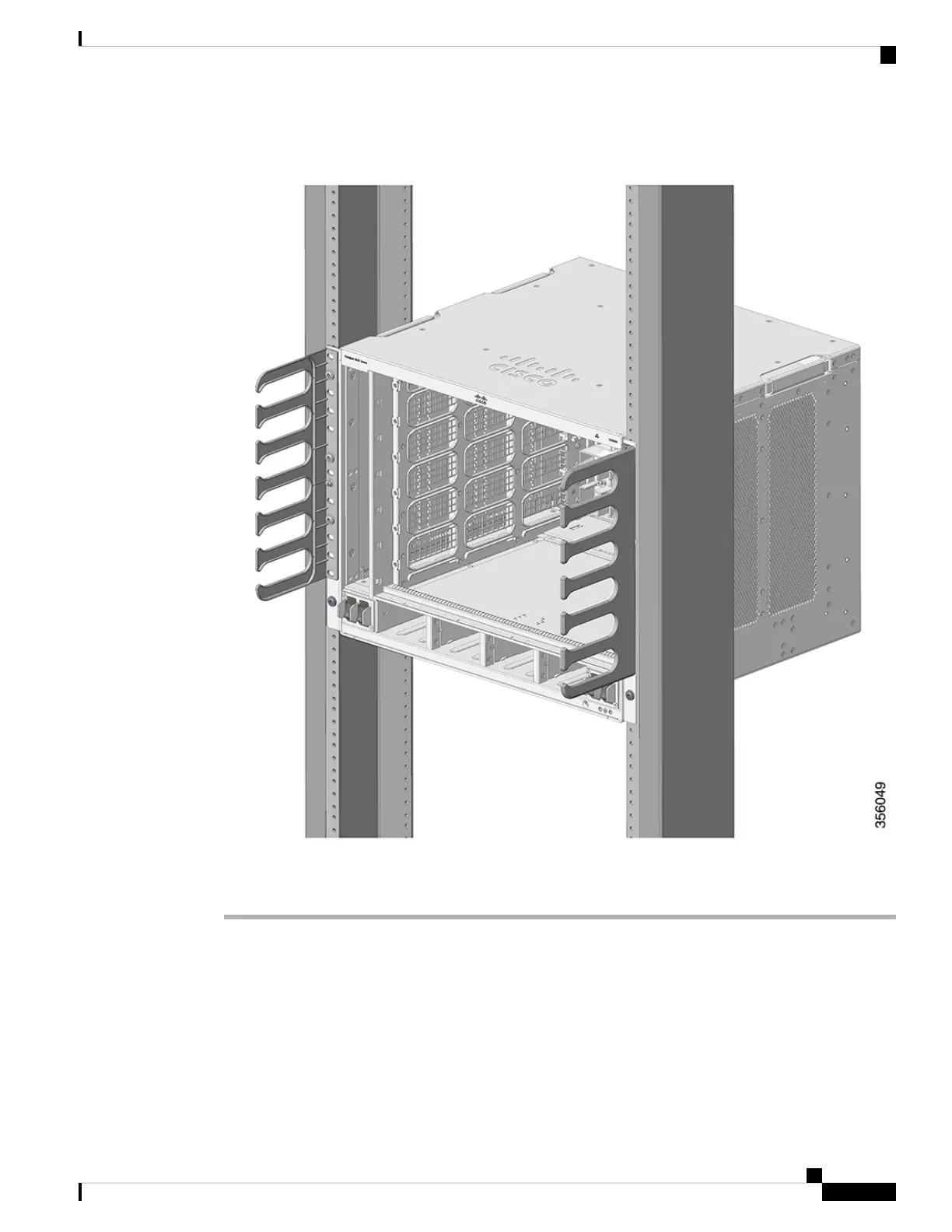

Figure 11: Chassis Secured to the Rack Posts
Step 4 4. Use a tape measure and level to ensure that the chassis is installed straight and level..
What to do next
After installing the chassis in its location, complete the installation process by:
1. Connecting the chassis to system ground.
2. Installing and connecting the power supplies to the power source.
3. Connecting the network interface cables to the supervisor module and line card modules. This may involve
installing transceivers before you attach the network interface cables.
Cisco Catalyst 9600 Series Switches Hardware Installation Guide
35
Installing the Switch
Rack-Mounting the Chassis as Shipped
