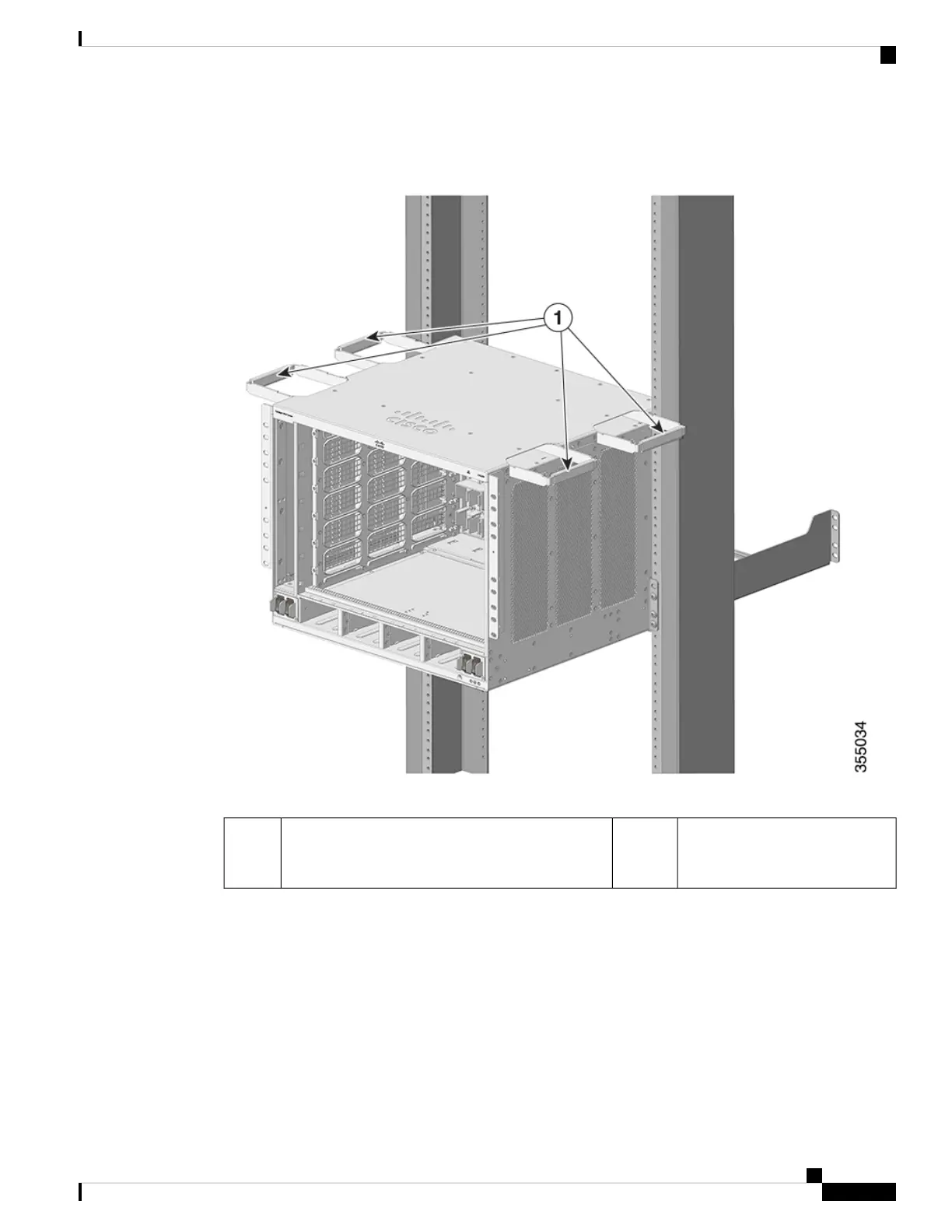

Figure 19: Chassis handholds
--All four of the chassis handholds pulled out and the
back end of the chassis resting on the edges of the
shelf bracket rails.
1
Step 2 With a person standing at each side of the chassis, insert one hand into each handhold. Slowly lift the chassis.
Avoid sudden twists or moves to prevent injury.
Step 3 Rest the back end of the chassis on the edges of the shelf bracket rails and slide it in until the first pair of
handles on both sides of the chassis are near the rack posts.
Step 4 Push in the handholds that are closest to the rack posts.
Cisco Catalyst 9600 Series Switches Hardware Installation Guide
45
Installing the Switch
Rack-Mounting the Chassis
