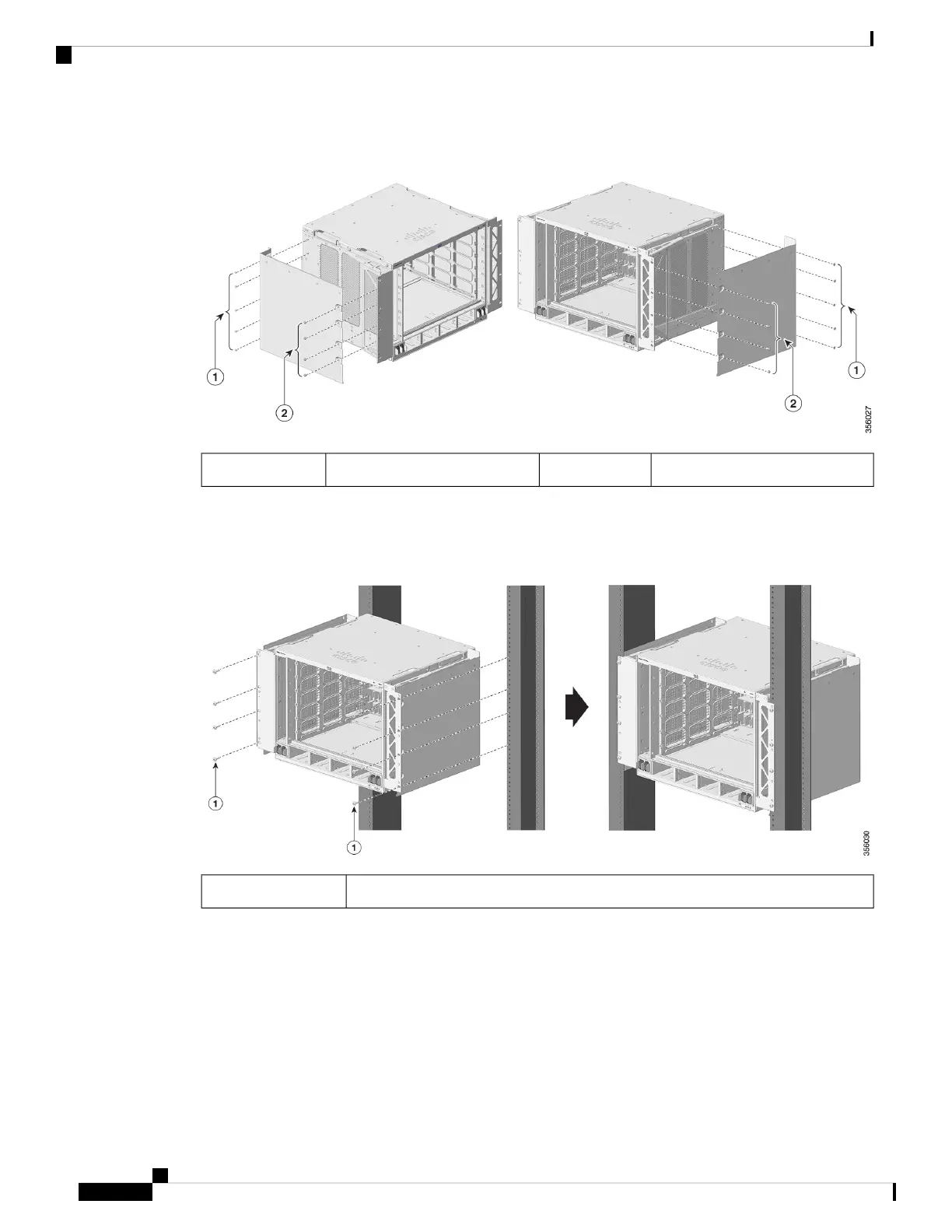

Figure 27: Install the Wall Covers
M4x12mm pan head screws2M4x5mm flat head screws1
Step 5 Secure the chassis to the rack with either 10-32 or 12-24 pan head screws from the chassis standard accessory
kit.
Figure 28: Secure the Chassis to Rack
10-32 or 12-24 pan head screws1
Step 6 Align the air filter with the top and the bottom edges of the air filter slot.
Cisco Catalyst 9600 Series Switches Hardware Installation Guide
54
Installing the Switch
Rack-Mounting the Chassis in NEBS-Compliant Mode
