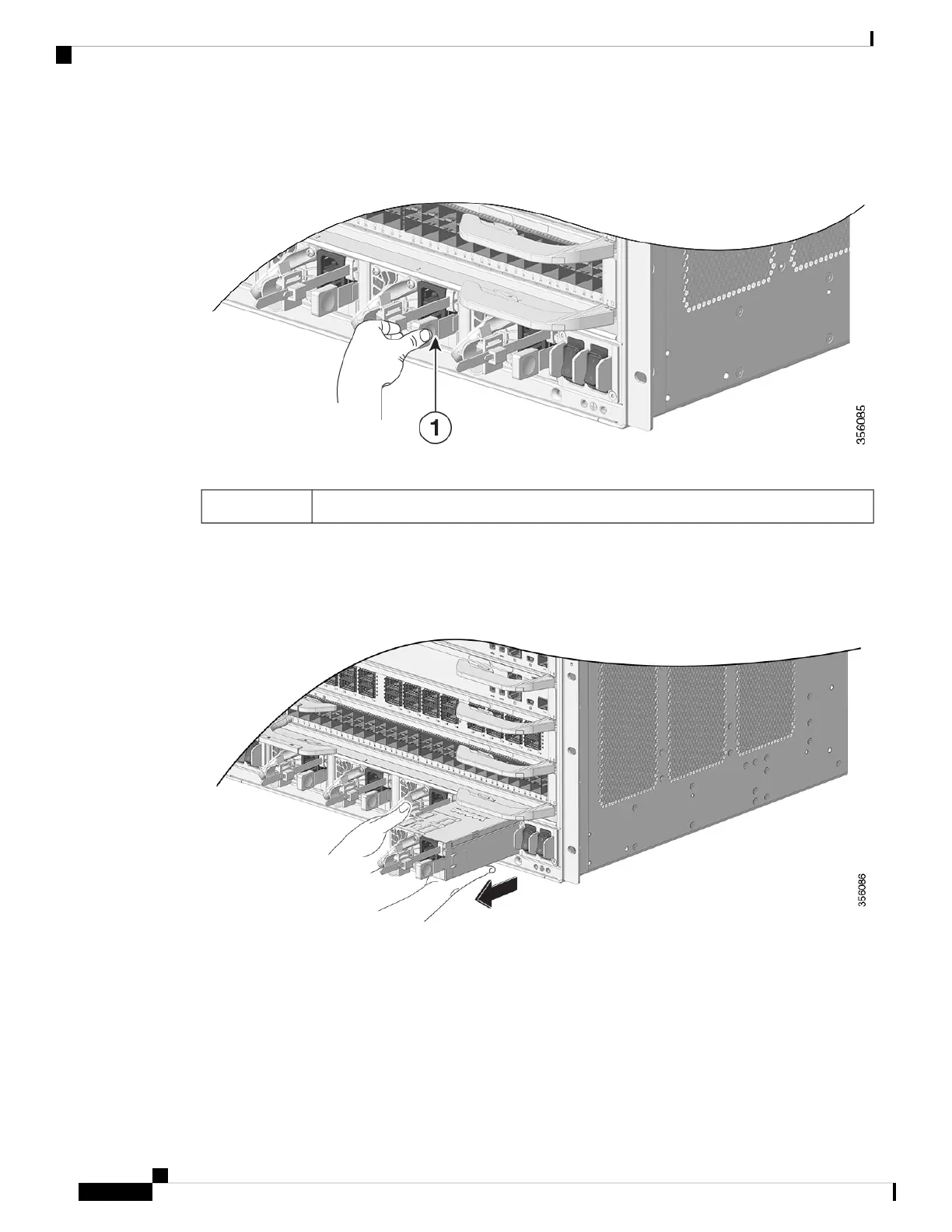

Figure 39: Detaching the Power Supply Module from the Slot
Release latch1
Step 5 Grasp the power supply module handle with one hand; place your other hand underneath to support the bottom
of the power supply. Slide the power supply module out fully.
Figure 40: Sliding the Power Supply Module Out
Do not leave any power supply slot open for any amount of time while the system is powered up.
Before inserting a new power supply unit, for instance, when replacing the unit, ensure that there
are no foreign, conductive or other objects, or debris in the slot.
Caution
Cisco Catalyst 9600 Series Switches Hardware Installation Guide
78
Installing a Power Supply Unit
Removing a Power Supply Module
