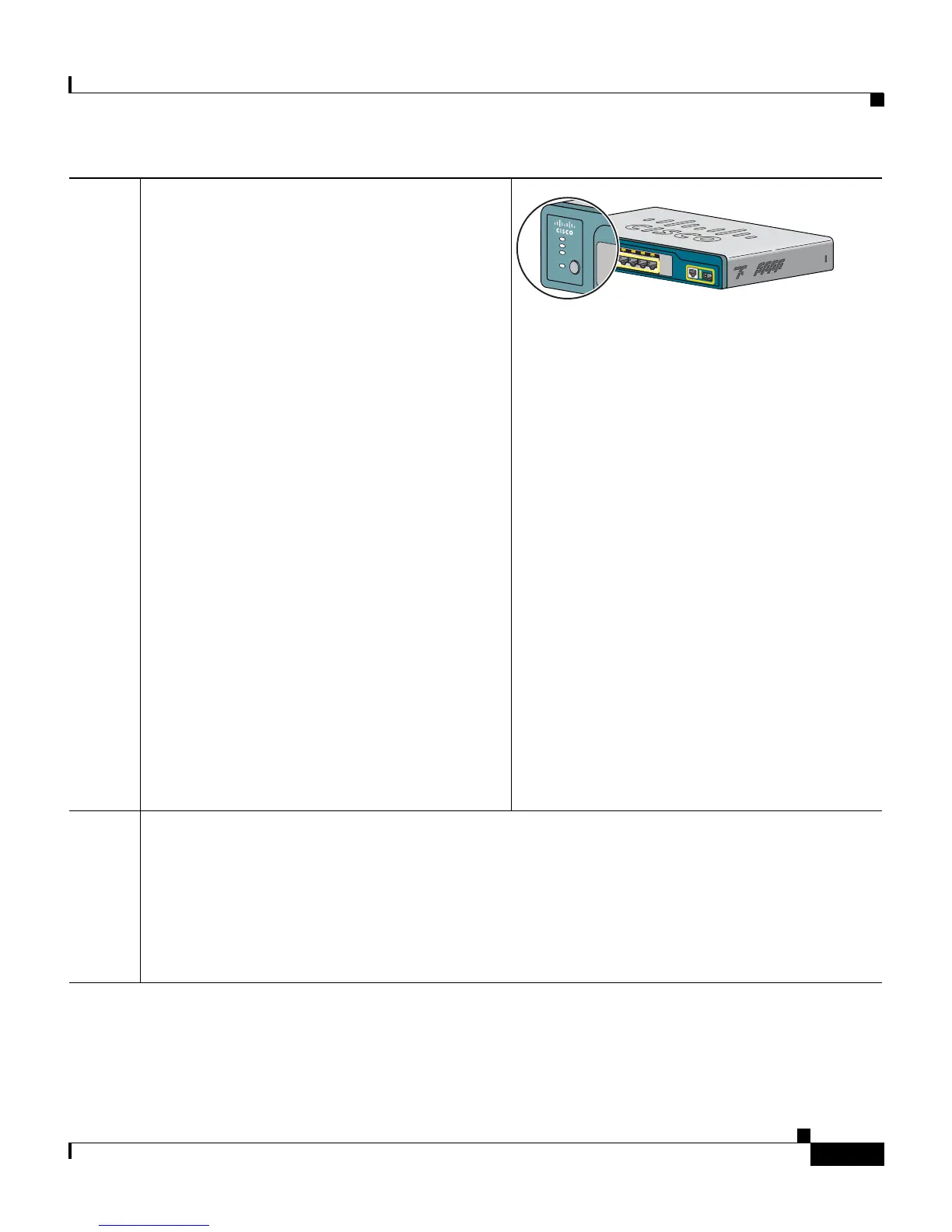

Getting Started Guide for the Catalyst Express 520 Switches
78-18063-02
Set Up the Switch
Step 6
After you click Submit, these events occur:
• The Express Setup program ends.
• The connection between the switch and
your PC or laptop ends.
• If your PC or laptop is connected to a
DHCP server, your PC or laptop loses its
IP address that was used during the initial
setup.
• Your browser session displays an error
page.
Verify that the ADMIN LED is off, which
means that the switch is configured with the
IP address that you entered in the Express
Setup window and that the initial setup is
complete.
Troubleshooting:
If the ADMIN LED continues to blink green,
it means that the switch is still not configured
with an IP address. Repeat Step 1 to Step 5.
If the problem persists:
1. Disconnect the Ethernet cable from the
switch.
2. Repeat Step 3 to Step 5.
Step 7
Assign an IP address to your PC or laptop. Make sure that the IP address that you assign is in
the same network as the switch IP address (assigned in Step 5).
To change the IP address of your PC or laptop, either
• Connect your PC or laptop to the network where a DHCP server allocates IP addresses
within the range that is assigned to your switch.
• Enter a static IP address through your PC or laptop Control Panel.
