Cisco Catalyst Express 520 Getting Started Guide

Set Up the Switch
4
Getting Started Guide for the Catalyst Express 520 Switches
78-18063-02
Set Up the Switch
Prerequisites
• You need the hardware and software described in the “Hardware
Requirements” section and the “Software Requirements” section in Chapter 1
of the switch user guide.
• You need the Category 5 Ethernet cable that is shipped with the switch.
• You should disable any pop-up blockers or proxy settings in your browser
software and any wireless clients running on your PC or laptop.
Follow these steps:

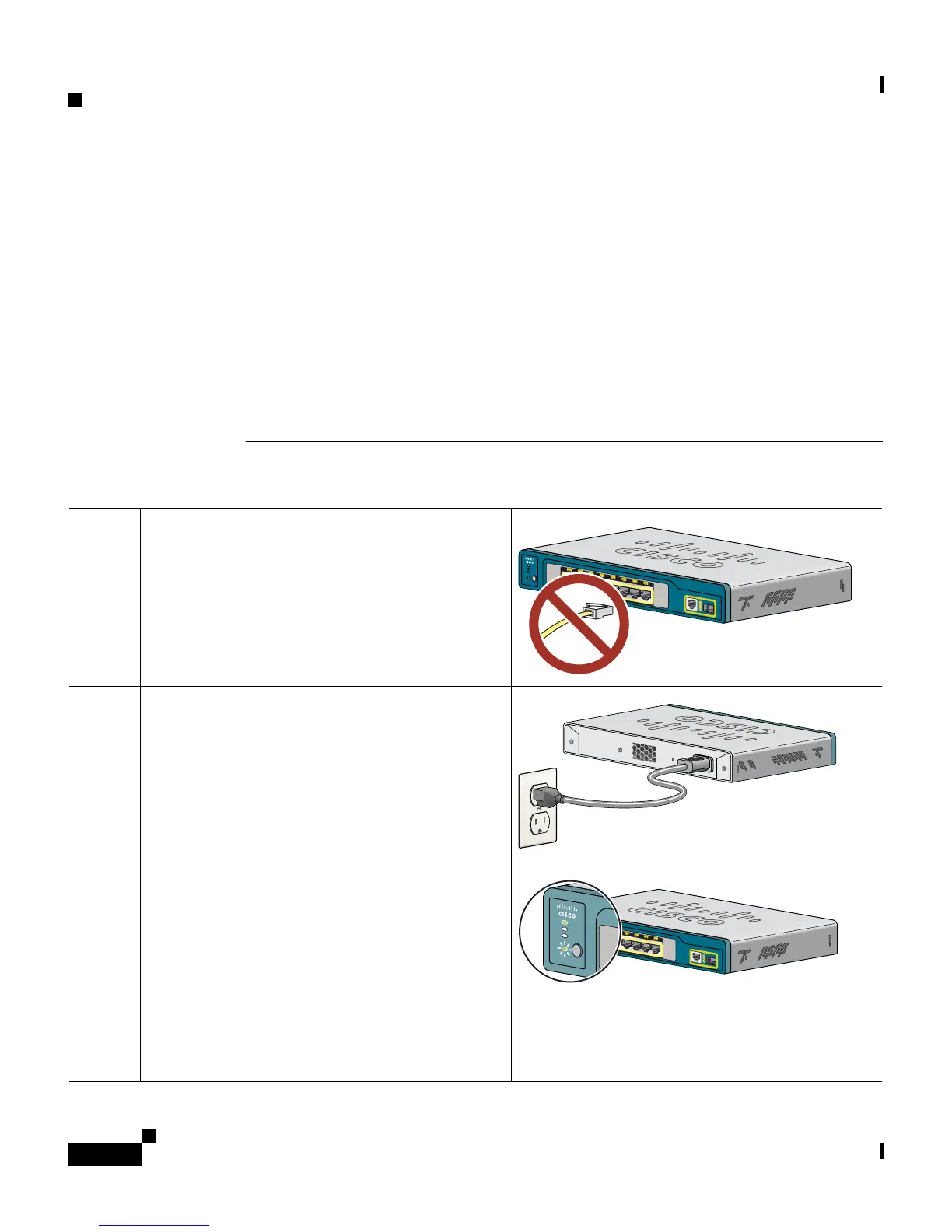

Step 1
Make sure that nothing is connected to the
switch.
Step 2
Use the supplied switch power cable to
connect the switch to an AC power source.
Before proceeding to the next step, wait until
the SYSTEM LED stops blinking green and
becomes solid green. A solid green SYSTEM
LED means that the switch is operating
properly.
The ADMIN LED should be blinking green.
A blinking green ADMIN LED means that the
switch does not have an IP address yet.
Troubleshooting:
If the SYSTEM LED does not blink green, does
not turn solid green, or turns amber, contact
your Cisco representative or reseller. The switch
failed the power-on self-test (POST).
