7
Getting Started and Product Document of Compliance for the Cisco Catalyst IW6300 Heavy Duty Series Access Points

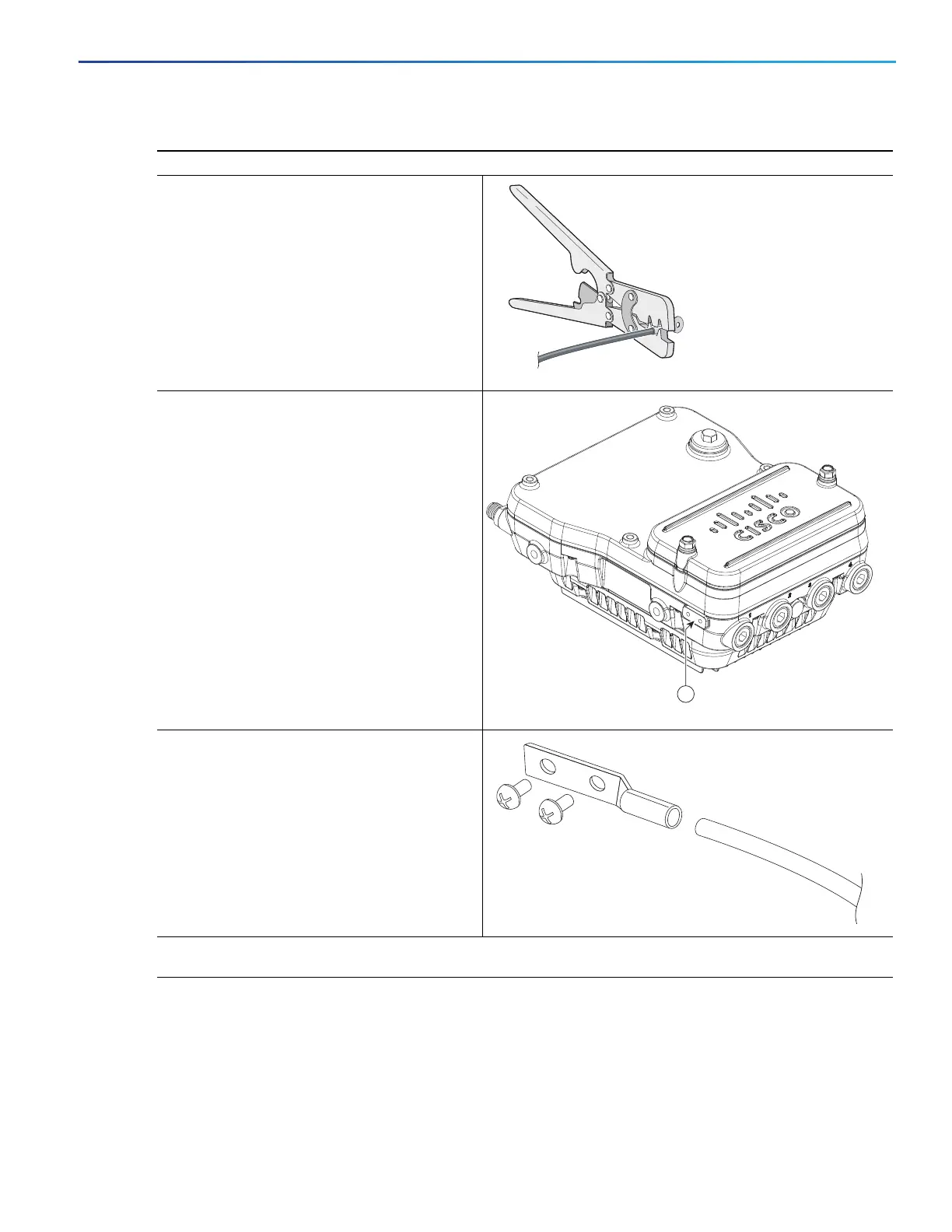

Grounding the Device
1. If using insulated 6-AWG (13.3 mm
2
) copper ground wire, strip the insulation as required for the grounding lug.
2. Use the appropriate crimping tool to crimp the
bare 6-AWG (13.3 mm
2
) copper ground wire to
the supplied grounding lug.
Note: The grounding lug and hardware used
must comply with local and national electrical
codes.
3. Open the anti-corrosion sealant (supplied), and
apply a liberal amount over the metal surface,
called the Ground Pad, where the ground strap
screw holes are located.
1—Ground pad
4. Connect the grounding lug to the access point
grounding screw holes using the supplied two
Phillips head screws (M4 x10 mm) with lock
washers. Tighten the grounding screw to 22 to
24 lb-in (2.49 to 2.71 Nm).
5. If necessary, strip the other end of the ground wire and connect it to a reliable earth ground, such as a grounding
rod or an appropriate grounding point on a metal streetlight pole that is grounded.
