Chapter 1 Product Overview
Router Overview
1-4
Cisco 837 Router and SOHO 97 Router Hardware Installation Guide
78-14781-02
Front Panels

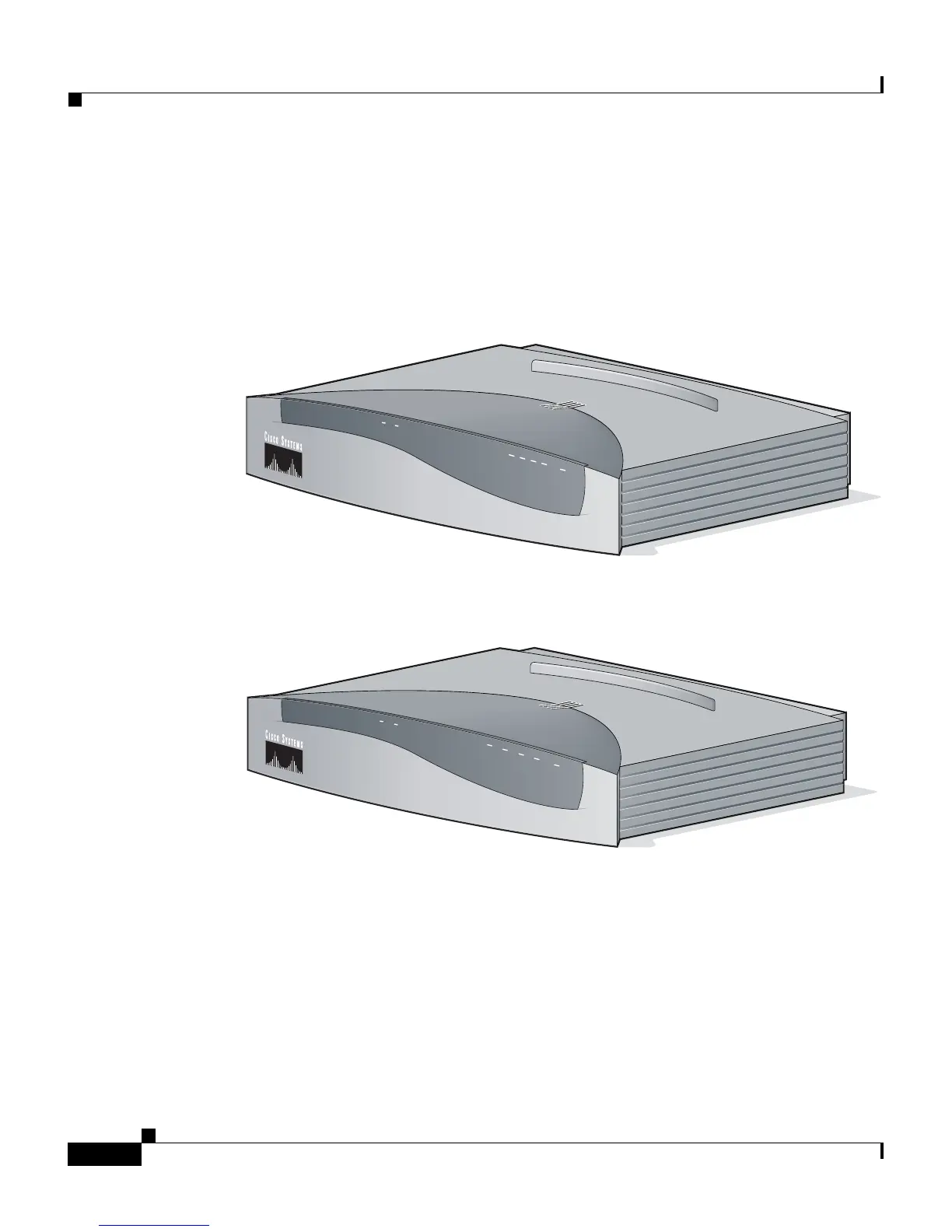

Figure 1-1 and Figure 1-2 show the front panels of the Cisco 837 and SOHO 97
routers.
Figure 1-1 Cisco 837 Front Panel
Figure 1-2 SOHO 97 Front Panel
OK
4
3
2
1
ADSL
ETHERNET
TXD
RXD
CD
RXD
TXD
CISCO 800
SERIES
82005
OK
4
3
2
1
ADSL
ETHERNET
TXD
RXD
CD
RXD
TXD
CISCO SOHO
SERIES
82006
