Cisco 837 Router and SOHO 97 Router Hardware Installation Guide
78-14781-02
Chapter 2 Installation
Installing the Router

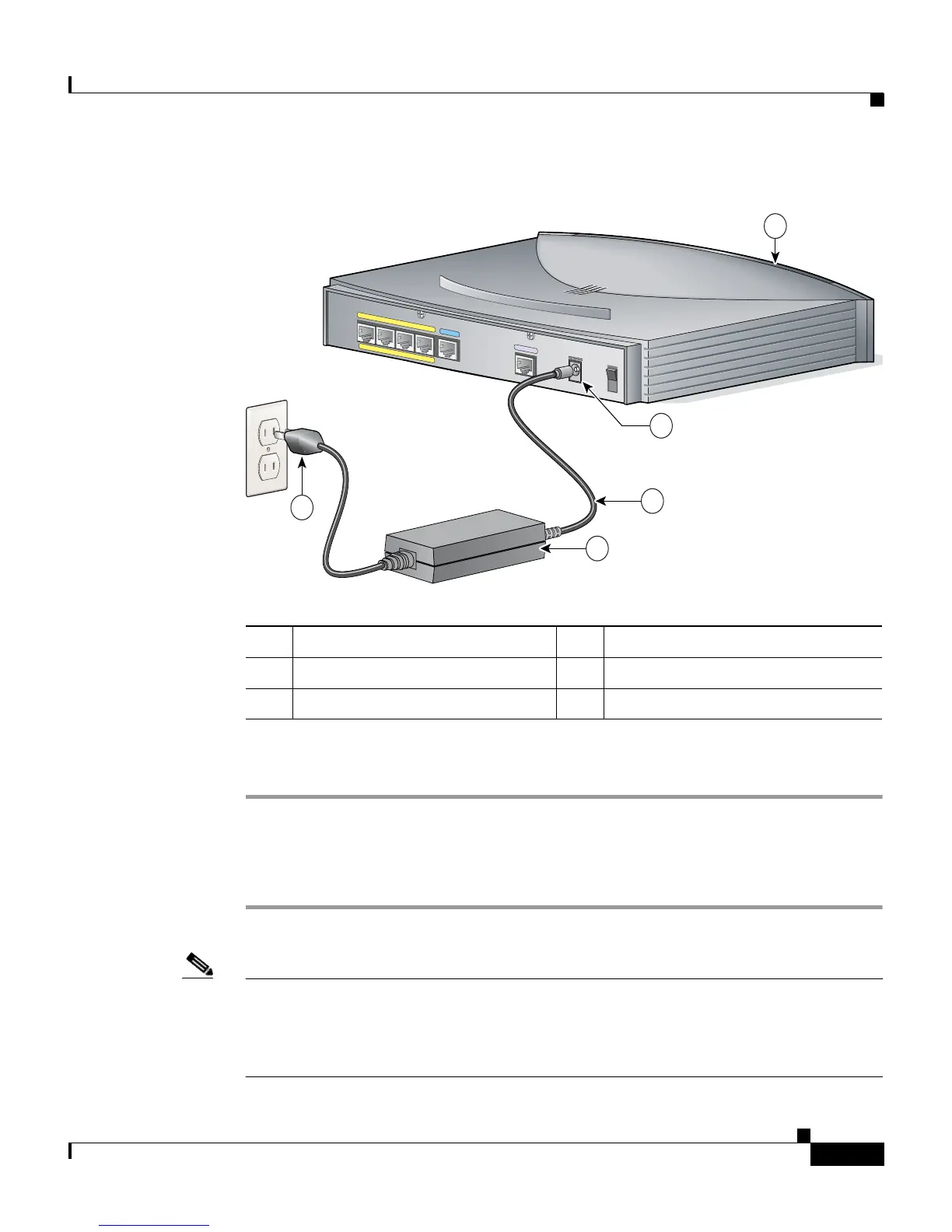

Figure 2-6 Connecting the AC Adapter
Perform the following steps to connect the router to the AC adapter:
Step 1 Connect one end the power supply cable to the router’s input jack.
Step 2 Connect the other end of the power supply cable to the desktop power adapter.
Step 3 Plug the power cord of the desktop power adapter into an electrical outlet.
Note Be sure to use the power supply that was shipped with your router. Although you
may be able to connect another Cisco power supply to your router, that power
supply may not provide all the features that are provided by the power supply that
shipped with your router.
1 Cisco 837 router 4 Desktop power supply
2 Router input jack 5 Power cord plug
3 Power cord
E
TH
ER
N
ET
4
3
2
1
Cisco 837
ADS
L
+18 VD
C
CO
NSOLE
2
1
3
5
4
ON
OFF
