B-4
Cisco Physical Security Multiservices Platform Series User Guide
OL-21838-03
Appendix B Recovering from a Hard Drive Failure
Replacing a Hard Drive

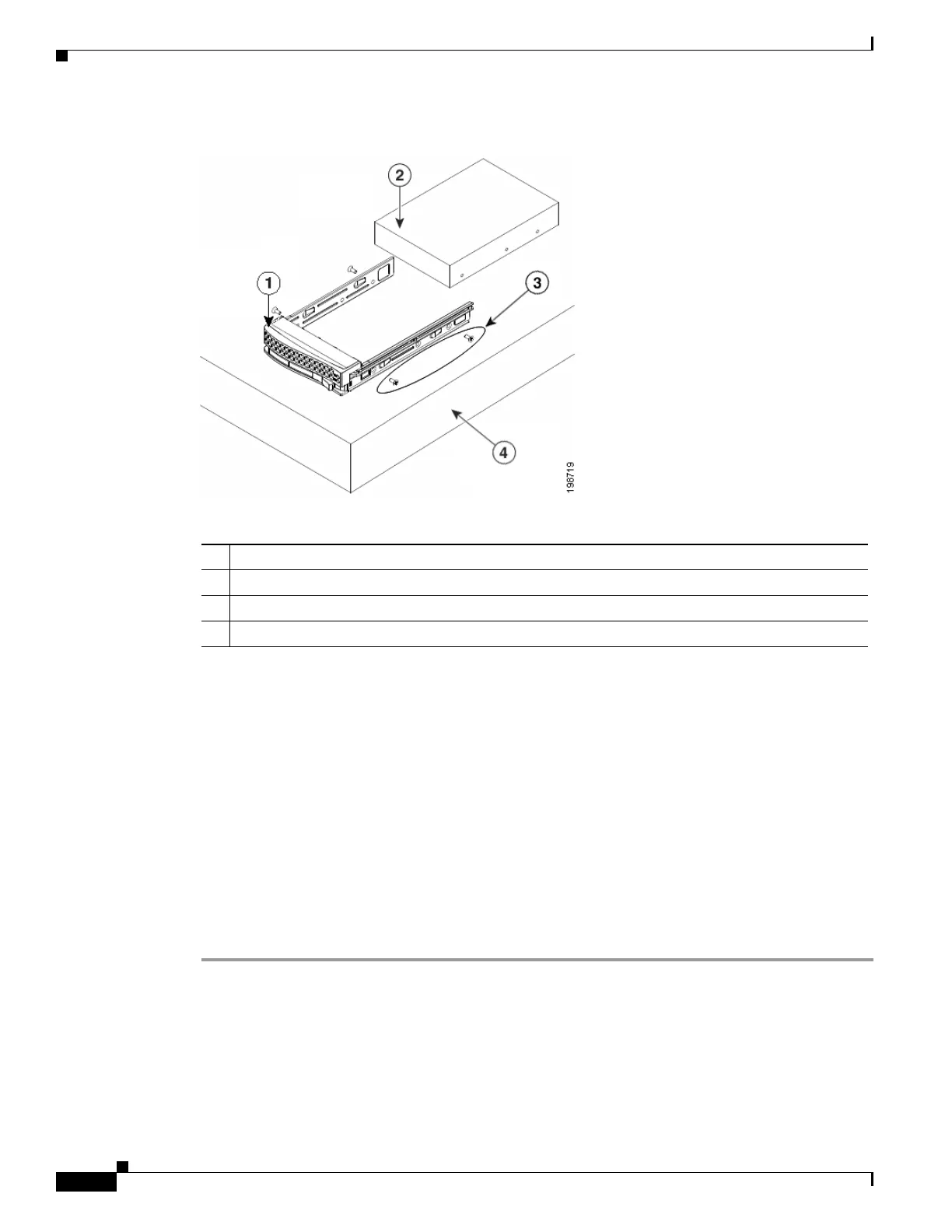

Figure B-1 Hard Drive and Hard Drive Bay
a. Place the hard drive bay on a flat, stable surface such as a desk, table, or workbench.
b. Remove the drive retaining screws and slide the hard drive away from the hard drive bay.
Step 3 To put a new hard drive into a hard drive bay, see Figure B-1 and take these actions:
a. Place the hard drive bay on a flat, stable surface such as a desk, table, or workbench.
b. Slide the hard drive into the hard drive bay.
The printed circuit board side of the hard drive must face down.
c. Align the mounting holes of the hard drive bay with the hard drive.
Make sure that the bottom of the hard drive and the bottom of the hard drive bay are flush.
d. Secure the hard drive retaining screws.
Step 4 Replace the hard drive bay in the chassis by pushing it into the chassis and pressing the drive bay handle
to lock it in place.
1 Drive bay
2 Hard drive
3 Hard drive retaining screws
4 Flat, stable surface
