Appendix E 16 x D1 and 8 x D1 Video Capture Cards
Understanding Video Channel Numbers
Figure E-6 shows the location of the video cards, and the corresponding connections to the BNC
breakout panels.

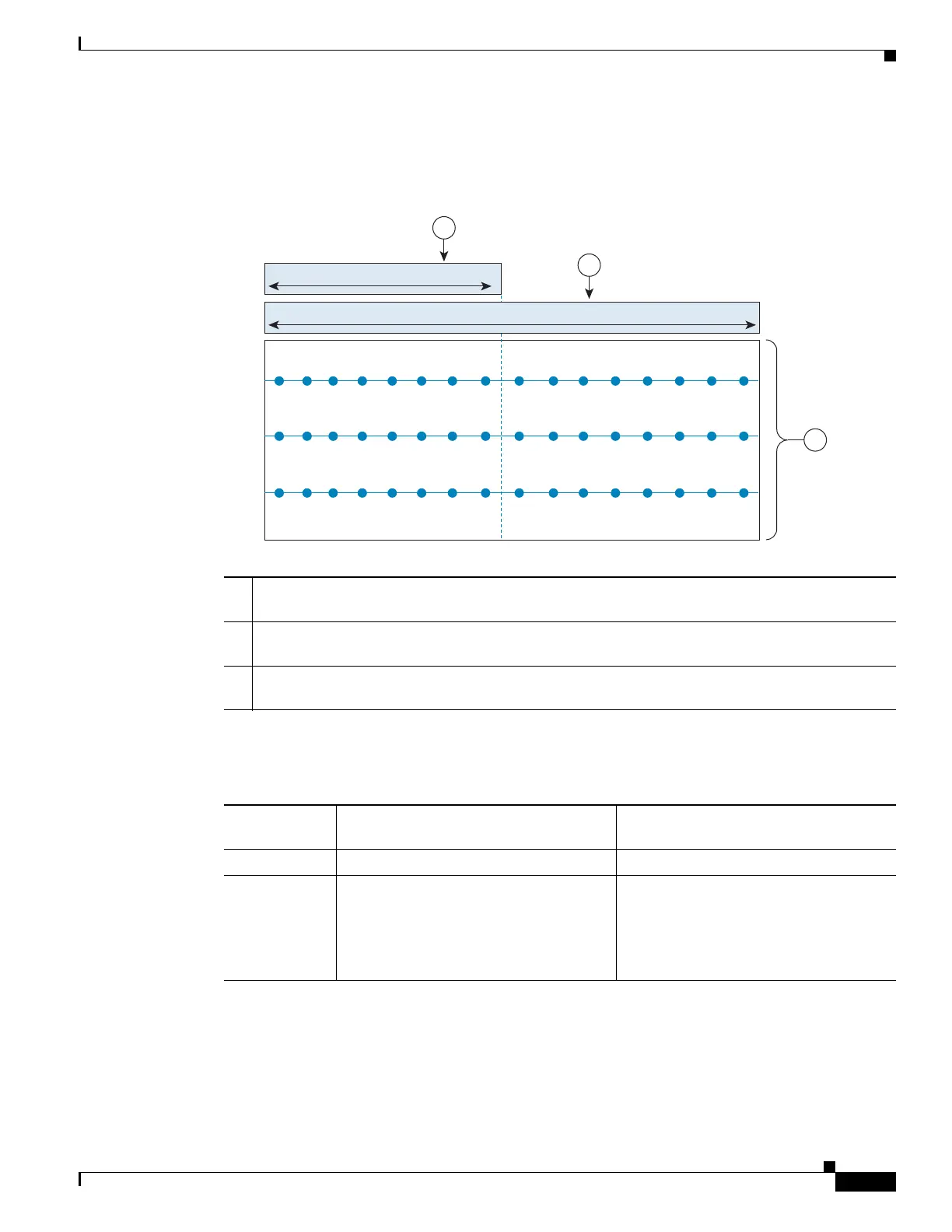

Figure E-6 Channel Numbers for the 2-RU Multi Services Platform Series Device
Table E-2 shows the possible video capture card combinations in a 2-RU Multiservices Platform Series.
1 2-RU Multiservices Platform Series video card slots. Each dot represents a supported channel for
cards installed in that slot.
2 16 channel cards support all 16 channels in a slot. The channel numbers are defined by the server
slot in which the card is installed.
3 8 channel cards support the first 8 channels in each slot. The channel numbers are defined by the
server slot in which the card is installed.
278673
Slot 1
Slot 2
Slot 3
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
17 19 20 2118 22 23 25 27 28 3026 2924 31 32
33
35
36 3734 38 39
41
43 44 4642
45
40 47 48
Channel numbers for 16 port cards
Channel numbers for 8 port cards
3
2
1
Ta b l e E-2 Channel Configurations in a 2-RU Multi Services Platform Series Device
Total Number
of Channels
Installed Video Capture Cards
Channel Numbers in Cisco VSM Software
Configuration
8 Top slot: 8 channel card 1 through 8
16 Top slot: 16 channel card
or
Top slot: 8 channel card
Middle slot: 8 channel card
Top slot: 1 through 16
or
Top slot: 1 through 8
Middle slot: 17 through 24
