Cisco D9800 Configuration Guide

DVB-ASI Output
The D9800 receiver has one DVB-ASI output. This output can be used as an input for a DVB-T transmitter
or other types of DVB-ASI reception equipment.
MPEGoIP Output
The MPEGoIP output provides a number of output modes including the capability of carrying a decrypted
program for digital tier distribution. This helps ensure that compressed video programs are efficiently distributed
to households equipped with digital set-top boxes. Digital Program Insertion (DPI) information will also be
available along with the video and audio PIDs (Packet Identifiers) for external ad-insertion in compressed
digital format.

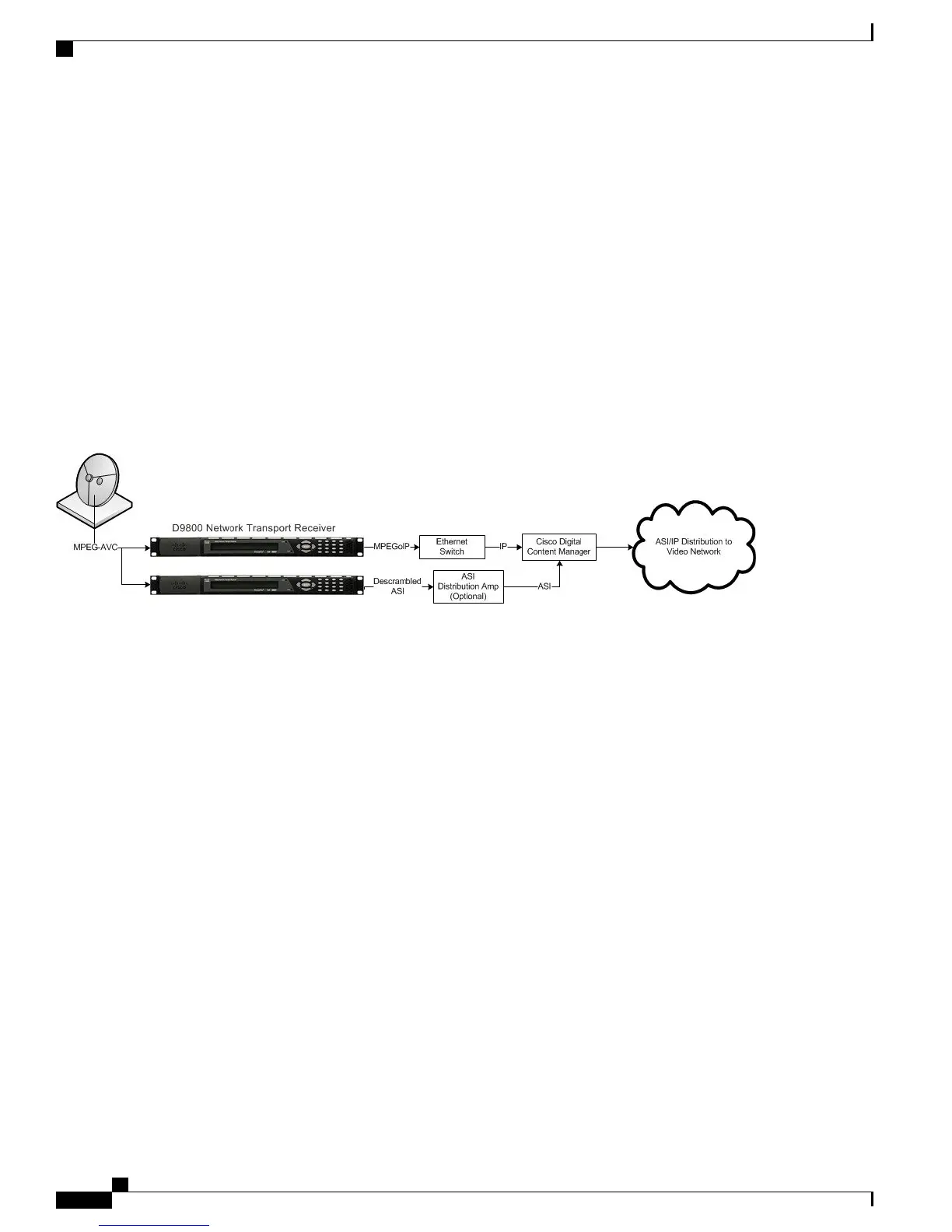

The diagram below shows an example of the D9800 receiver used in an MPEGoIP application.
MPE Output
The Multiprotocol Encapsulation (MPE) output provides a means to carry packet oriented IP protocols on top
of a transport stream. The MPE output receives IP packets from the transport stream and the IP data can be
sent through an Ethernet switch to an IP router or directly to a receiving device.
The diagram below shows an example of the D9800 receiver used in an MPE application.
Cisco D9800 Network Transport Receiver Version 3.01 Installation and Configuration Guide
2
Configuring the Transport Stream Information
DVB-ASI Output

Cisco D9800 Specifications

General

Brand	Cisco
Model	D9800
Category	Receiver
Language	English
