Cisco D9800 Installing Manual

Connecting the Balanced Audio Output
Step 1
Each row of the terminal blocks has a removable plug. Press down on the appropriate spring loaded terminal release
detent on the plugs and insert wire as required. Release the detent to secure wire.
Step 2
Connect the AUD1 and AUD 2 and AUD 3 and AUD 4 balanced audio outputs to monitoring equipment and/or downstream
equipment. Use a multi-conductor, pluggable cable from the audio 1, 2, 3, and 4 of the receiver (Left and Right) terminals
to your equipment, as shown below.

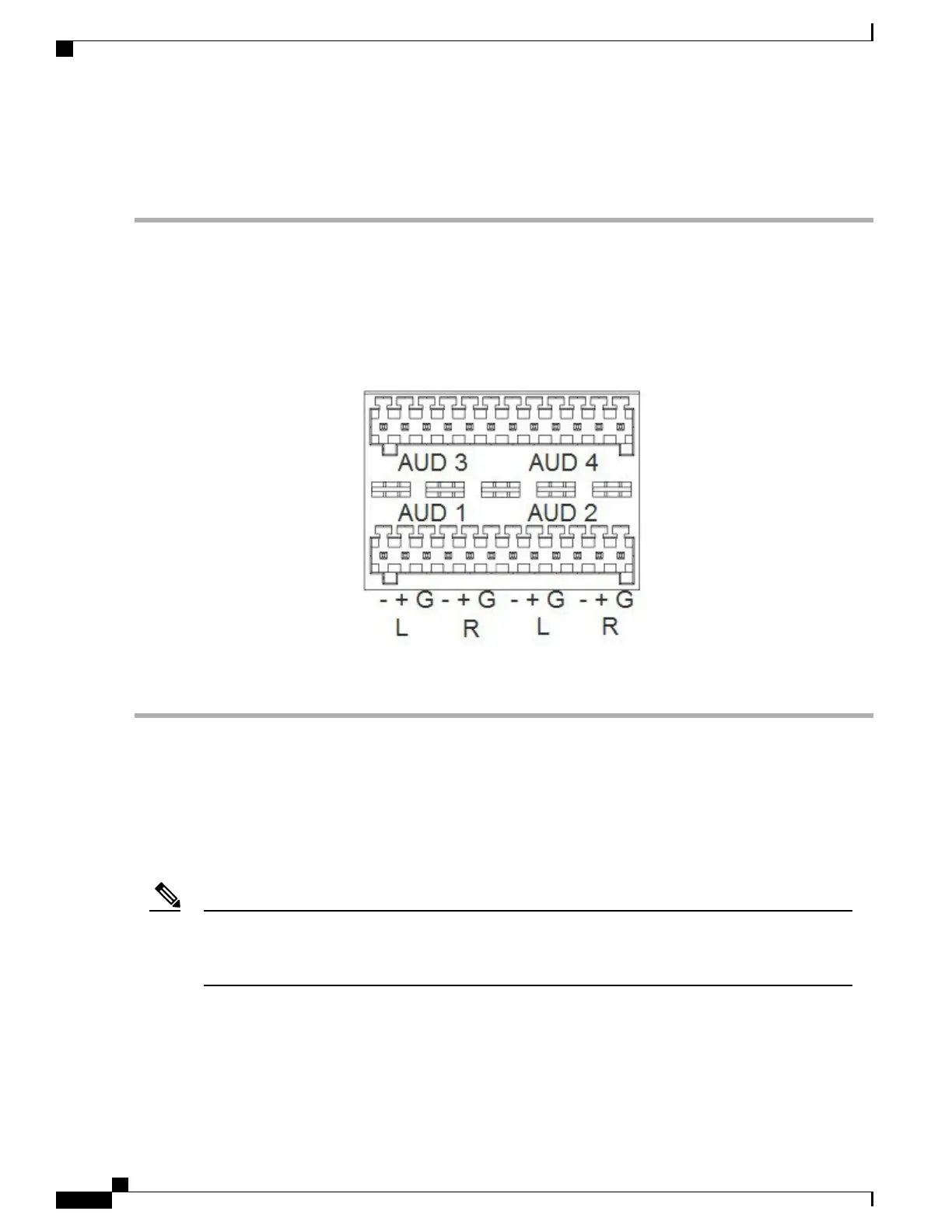

Figure 3: Balanced Audio Output Terminal Block Connector
Audio 3 and 4 requires the SDI option
(D9800-3G-SDI).
Note
Connecting the IP TS Input/Output
The RJ-45 interface DATA1 and DATA2, and DATA3 and DATA4 (on multi-stream units only) are
100/1000BASE-T Ethernet connectors. They are intended for the MPEGoIP input and output. The MPEGoIP
output of the transport stream is encapsulated in the IP packets to a groomer for distribution.
For reliable Ethernet operation; to run over a maximum segment length of 100 m and up to 100BASE-T,
the cable has to comply with the EIA/TIA Category 5 (or higher) wire specifications, and for 1000BASE-T,
Category 6 is required.
Note
Connect an RJ-45 cable between the Ethernet connector (DATA port only) on the D9800 receiver and the
Ethernet port of the equipment after the D9800 receiver. The equipment after the D9800 receiver could be an
IP router or a switch.
Cisco D9800 Network Transport Receiver Version 3.11 Installation and Configuration Guide
8
Installing the D9800 Network Transport Receiver
Connecting the IP TS Input/Output
