This document details the steps a property manager should take to install Digital Transport Adapters (DTAs). DTAs are small,
digital devices that will allow TVs to show programming delivered by Charter’s digital network. Any TVs that are not connected to
a digital device (either a DTA or other digital receiver) will not be able to view programming from Charter’s network.
DTAs that are connected to Charter’s network will remain active. However, when a DTA is disconnected from the network, it will
timeout after 30 days and require remote activation from Charter when it is reconnected to the network.
This DTA install process should take approximately 10 minutes per device. Please contact Customer Care at 1-800-314-7195 with
any questions.
PRIOR TO BEGINNING THE INSTALLATION PROCESS, ENSURE THAT YOU HAVE THESE
ITEMS FOR EACH TV:
• DTA
• RF/HDMI cable(s)
• Power cord
• Remote control
• Batteries
• Velcro
1. Connect Cable to Your DTA
a. Please write the room or unit location where the DTA is being installed on the DTA label.
b. Locate the cable that currently runs from the cable wall outlet to the back of the TV. Leave the cable connected to the
wall, but disconnect the other end from the back of the TV.
c. Reconnect this end of the cable to the "Cable In" input on the back of the DTA.
Charter Equipment. Do not Room #
remove from property. Contact
Property Management for return.

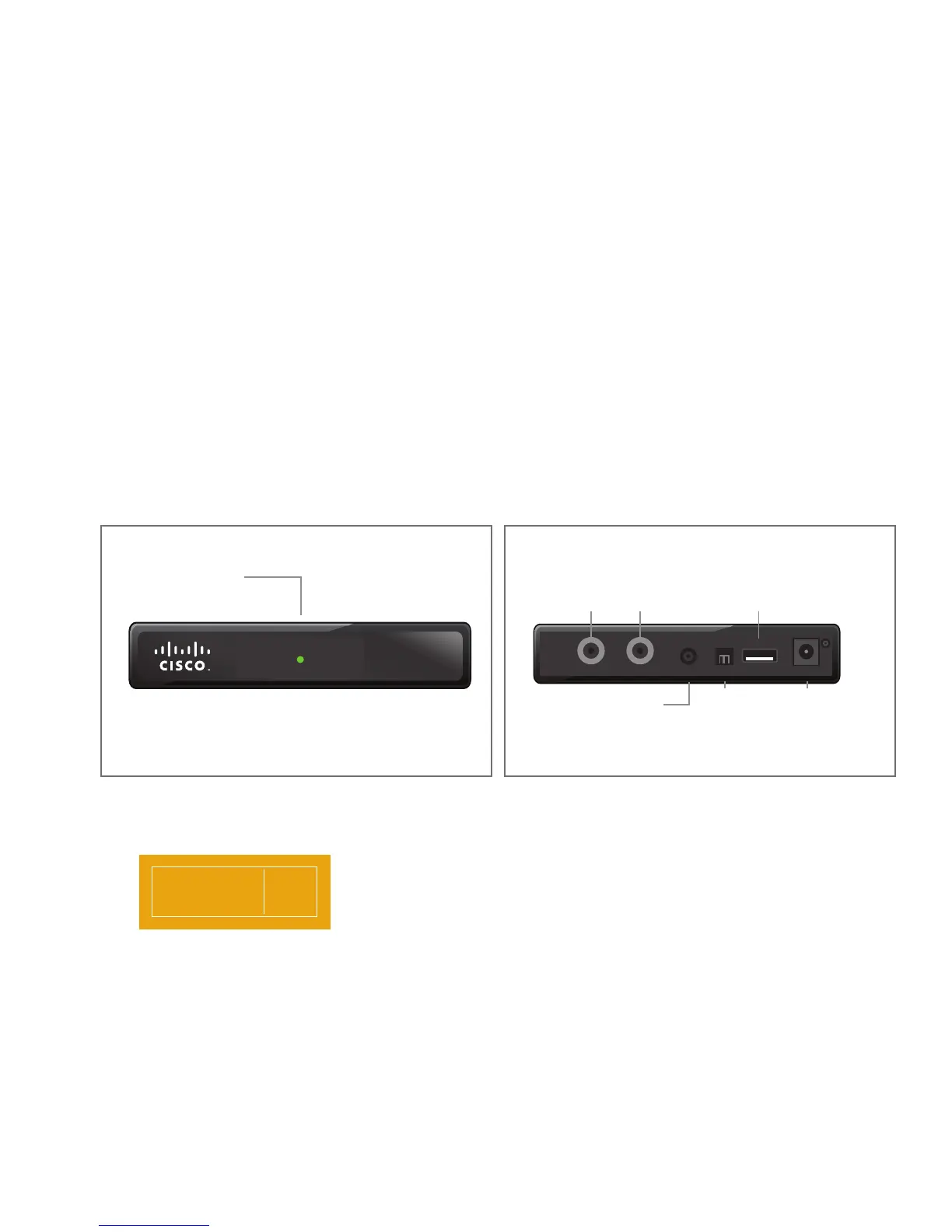

DTA Front Panel DTA Back Panel
POWER LED
Lights when your
digital adapter is fully on
DTA 170HD
POWER
Power
HDMI
To TVCable in
CABLE IN
From cable
TV outlet
To TV
To RF In Port
with Coax Cable
HDMI
Connects to HDMI
port on HDTV*
Power
Connects to
power supply
for DTA
IR IN
To support remote
control operation
IR IN Slide Switch
Slide Switch
For tuning your
digital adapter
to either channel
3 or 4
*HD service required for HD content.
HDMI port can still be used for HDTVs
receiving SD service.
