11. If you have other Gigabit Ethernet switch modules to install, do so now;
otherwise, go to step 12.
12. Attach any cables that are required by the Gigabit Ethernet switch
module. For the locations of the connectors on the BladeCenter unit, see
the documents that came with the BladeCenter unit. For cable
requirements, see page 6.
13. Replace the acoustic attenuation module, if applicable.
Removing a Gigabit Ethernet switch module
To remove a Gigabit Ethernet switch module, complete the following steps:
1. Read the safety information beginning on page v and “Installation
guidelines” on page 13.
2. Remove the acoustic attenuation module, if one is installed, from the rear
of the BladeCenter unit. For more information, see the documents that
came with the BladeCenter unit
3. Disconnect any cables from the Gigabit Ethernet switch module that you
are removing.

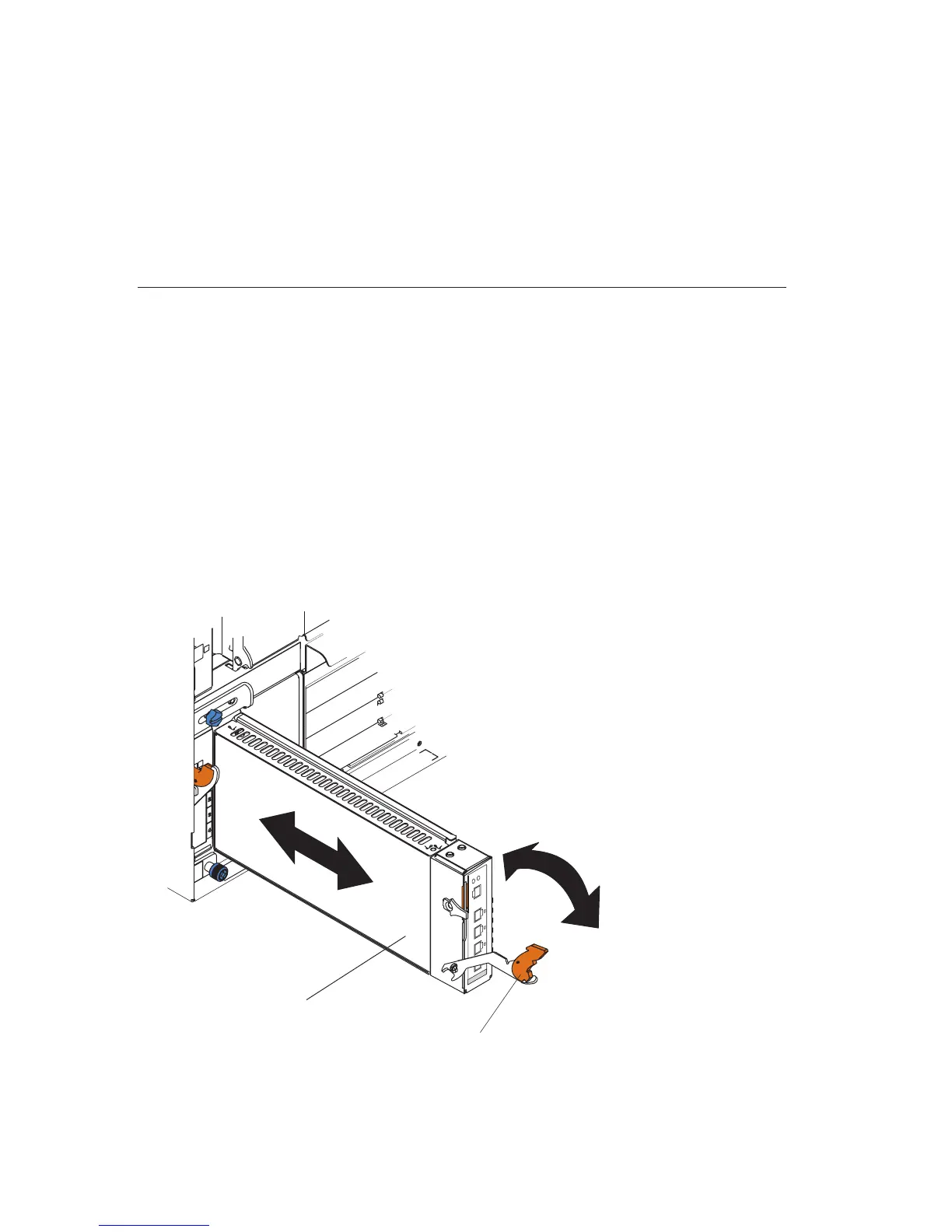

4. Pull the release latch toward the bottom of the Gigabit Ethernet switch
module as shown in the following illustration. The module moves out of
the bay approximately 0.64 cm (0.25 inch).
I/O module
Release latch
5. Slide the Gigabit Ethernet switch module out of the bay and set it aside.
6. Place either another Gigabit Ethernet switch module or a filler module in
the bay within 1 minute.
16 Cisco Systems Intelligent Gigabit Ethernet Switch Module: Installation Guide
