Cabling for the Firepower 1010

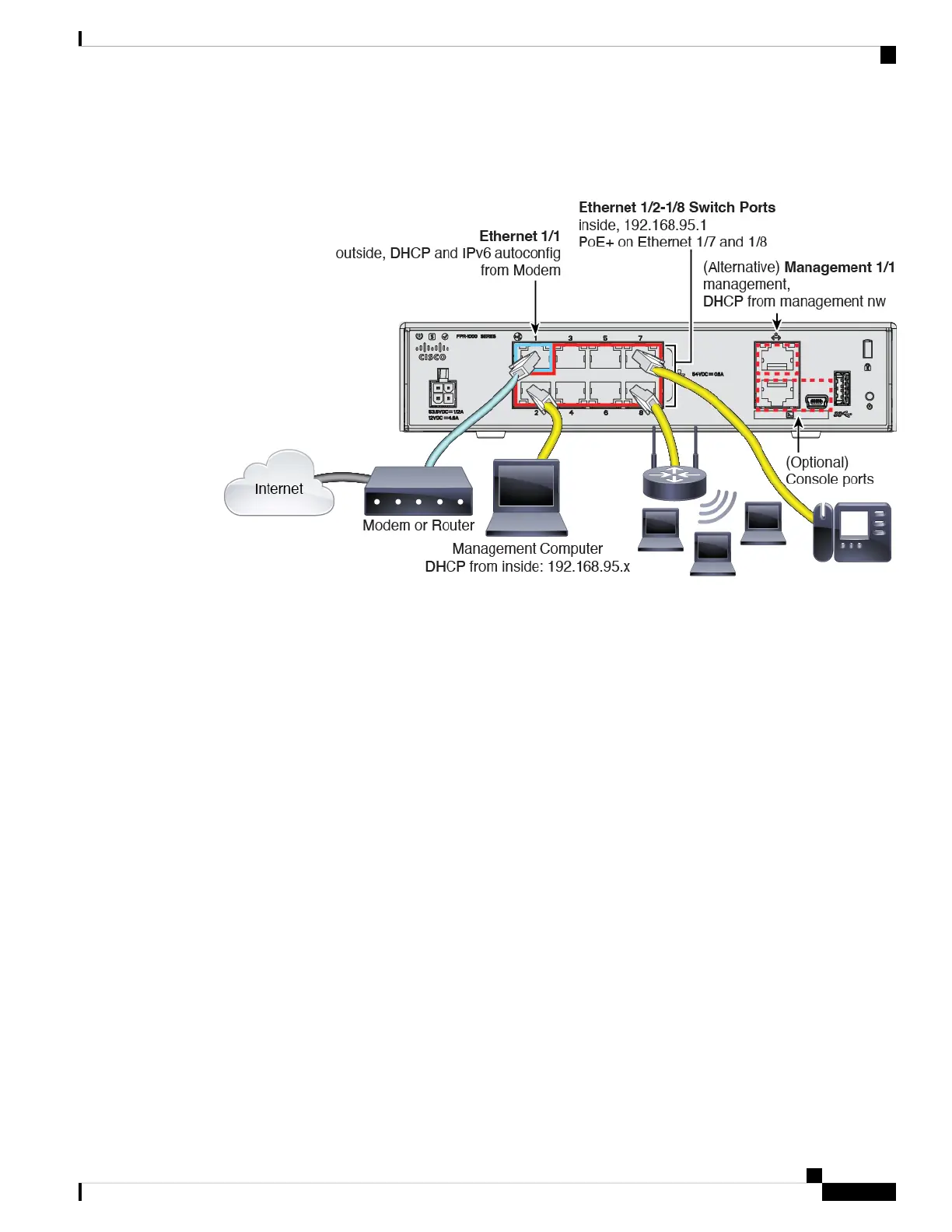

Figure 1: Cabling the Firepower 1010
• Connect your management computer to one of the following interfaces:
• Ethernet 1/2 through 1/8—Connect your management computer directly to one of the inside switch
ports (Ethernet 1/2 through 1/8). inside has a default IP address (192.168.95.1) and also runs a
DHCP server to provide IP addresses to clients (including the management computer), so make sure
these settings do not conflict with any existing inside network settings.
• Management 1/1—Connect your management computer to the management network. The
Management 1/1 interface obtains an IP address from DHCP, so make sure your network includes
a DHCP server.
If you need to change the Management 1/1 IP address from the default to configure a static IP
address, you must also cable your management computer to the console port. See (Optional) Change
Management Network Settings at the CLI, on page 21.
You can later configure management access from other interfaces.
• Connect the outside network to the Ethernet 1/1 interface.
By default, the IP address is obtained using IPv4 DHCP and IPv6 autoconfiguration, but you can set a
static address during initial configuration.
• Connect inside devices to the remaining switch ports, Ethernet 1/2 through 1/8.
Ethernet 1/7 and 1/8 are Power over Ethernet+ (PoE+) ports.
Getting Started
13
Getting Started
Cabling for the Firepower 1010
