Two-post grounding pad
The two-post grounding lug is
included in the accessory kit.
Note
4Fixed fans3
The following figure shows the rear panel of the Firepower 2130 and 2140.

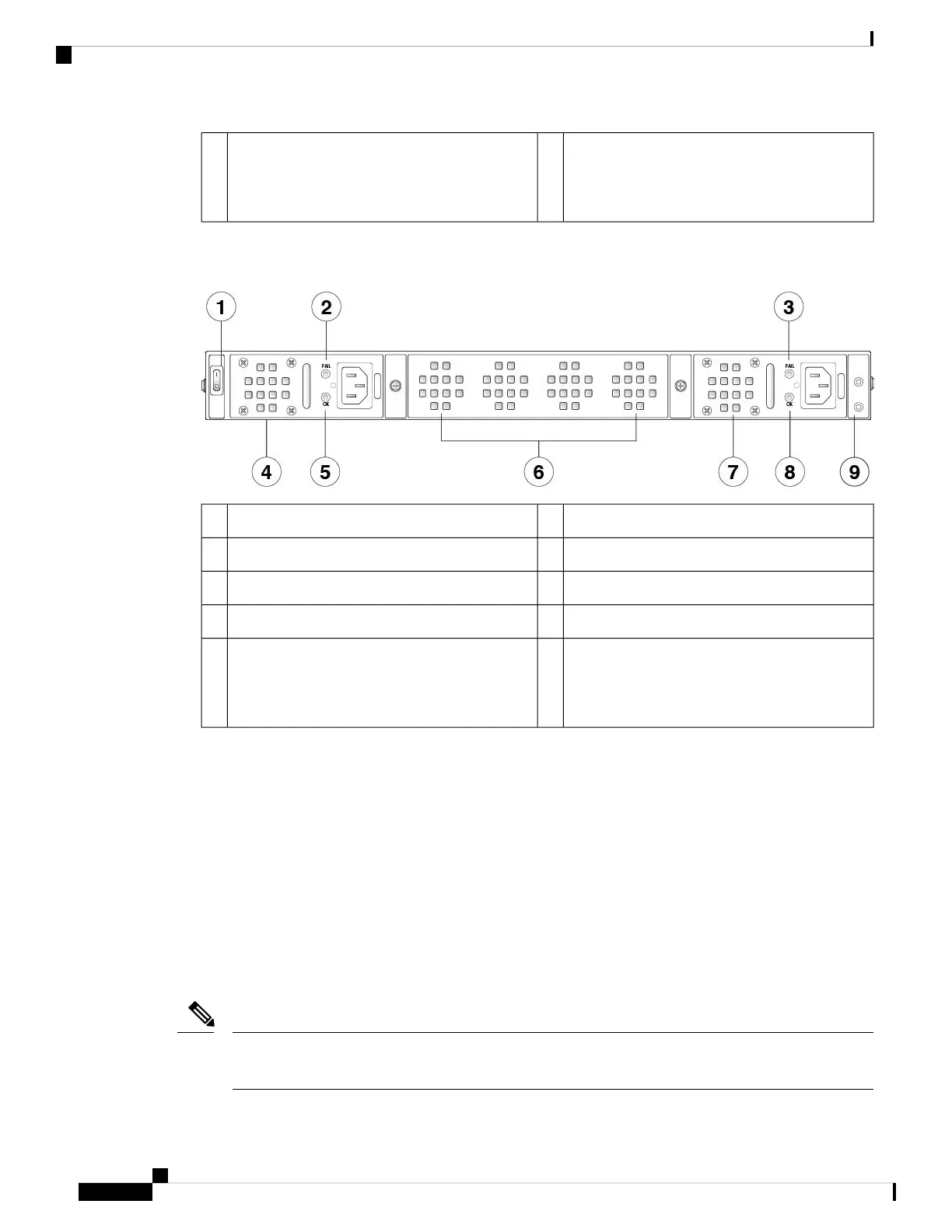

Figure 14: Firepower 2130 and 2140 Rear Panel
Power supply module 1 FAIL LED2Power on/off switch1
Power supply module 14Power supply module 2 FAIL LED3
Fan tray6Power supply module 1 OK LED5
Power supply module 2 OK LED8Power supply module 27
Two-post grounding pad
The two-post grounding lug is
included in the accessory kit.
Note
9
Power Switch
The power switch is located to the left of power supply module 1 on the rear of the chassis. It is a toggle
switch that controls power to the system. If the power switch is in standby position, only the 3.3-V
standby power is enabled from the power supply module and the 12-V main power is OFF. When the
switch is in the ON position, the 12-V main power is turned on and the system boots.
Before you move the power switch to the OFF position, use the shutdown commands so that the system
can perform a graceful shutdown. This may take several minutes to complete. After the graceful shutdown
is complete, the console displays It is safe to power off now. The front panel blue locator
beacon LED lights up indicating the system is ready to be powered off. You can now move the switch
to the OFF position. The front panel PWR LED flashes momentarily and turns off.
See Front Panel LEDs, on page 12 for the PWR LED description. See the FXOS Configuration Guide
for more information on using the shutdown commands.
On the Firepower 2130 and 2140, the OK LEDs on the rear power supplies flash after the switch is turned
off; this is expected behavior.
Note
Cisco Firepower 2100 Series Hardware Installation Guide
18
Overview
Rear Panel
