• Core files
• Ethanalyzer packet captures
• Tech-support files
• Security module log files
• Platform bundle image upload using download image usbA:
The Type A USB port does not support Cisco Secure Package (CSP) image upload support.
Network Ports
The Firepower 2100 chassis has 12 fixed RJ-45 1 G/100 M/10 M) ports. They are numbered from top
to bottom, left to right starting with 1 and are named Ethernet 1/1 through Ethernet 1/12.
The 2110 and 2120 also have four fixed SFP (1 Gb) ports, and the 2130 and 2140 have four fixed SFP+
(1 Gb/10 Gb) ports. They are fiber ports numbered left to right (1/13 through 1/16).
Each port has LEDs that represent Link/Activity status.
Front Panel LEDs
The following figure shows the Firepower 2110 and 2120 front panel LEDs.

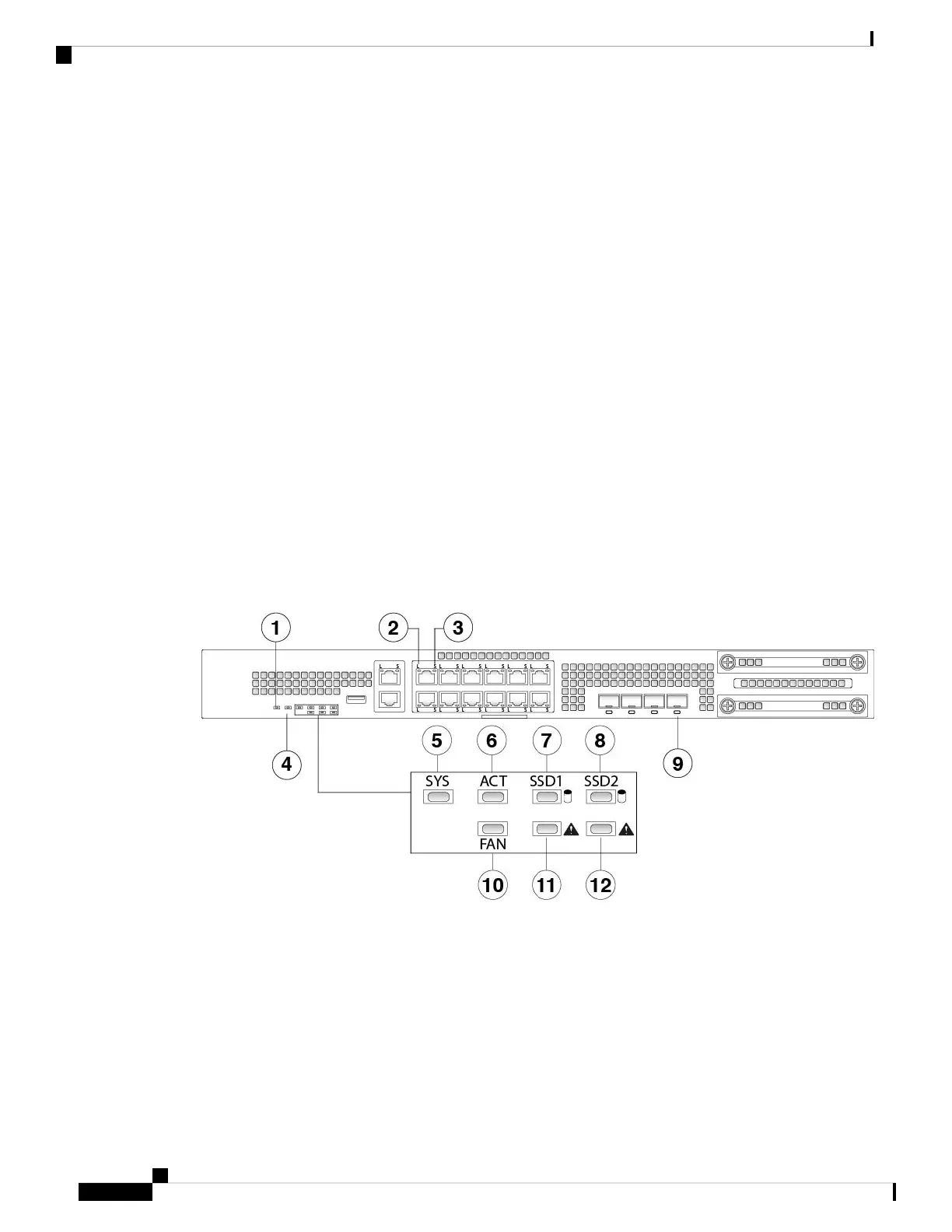

Figure 11: Firepower 2110 and 2120 Front Panel LEDs
