Cisco Firepower 2140 Hardware Installation Guide

M3x6 mm screw (1 per side)3
• (2130/2140) Align the inner rail so that the three slots on the rail line up with the three pegs on the side of the
chassis.

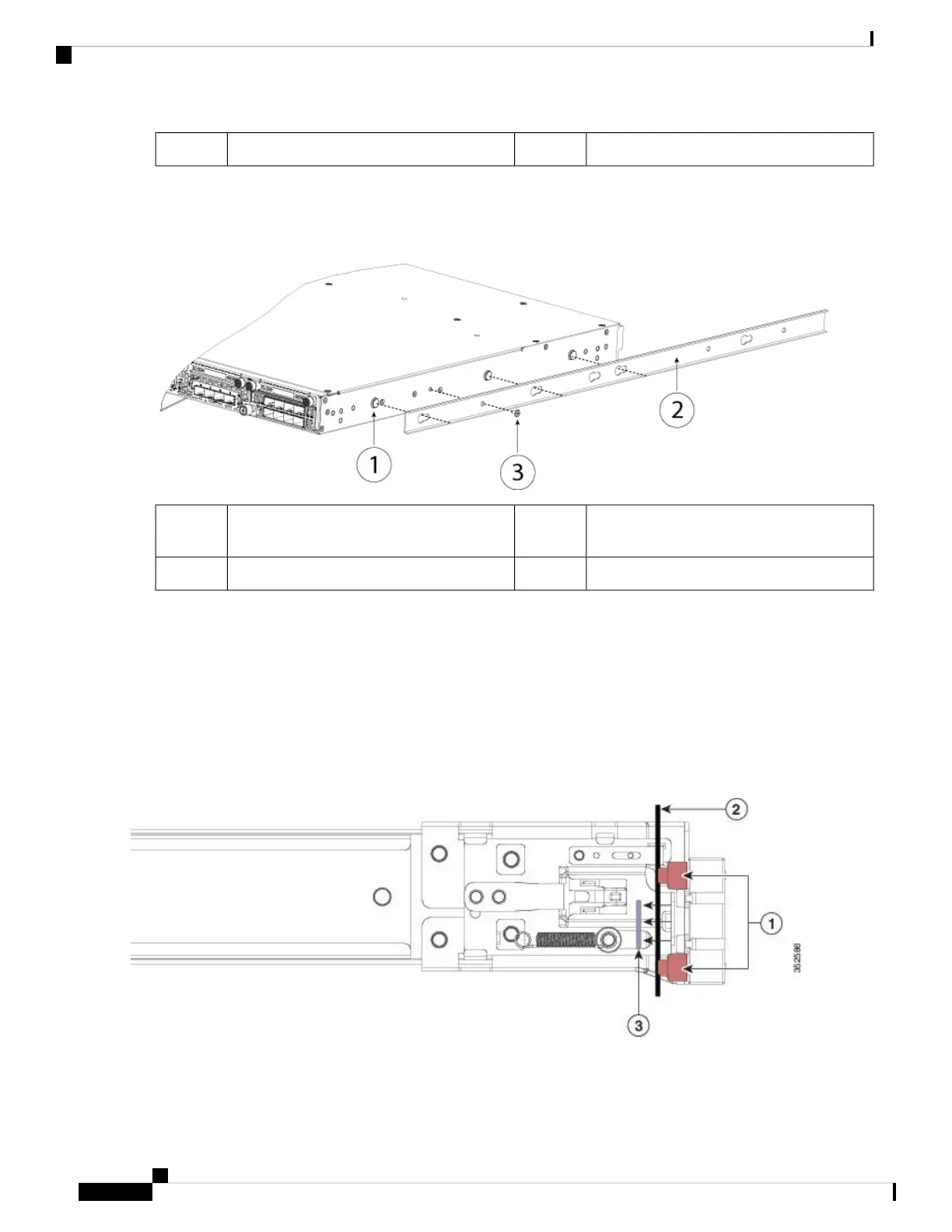

Figure 38: Line up the Inner Rail with the Pegs on the 2130/2140 Chassis
Inner rail2Mounting peg on the chassis for the keyed
slot
1
M3x6mm screw (1 per side)3
c) Set the keyed slots over the screws/pegs, and then slide the rail toward the front to lock it in place on the screw/pegs.
The rear key slot has a metal clip that locks over the screw/peg.
d) Using one M3x6mm screw, secure the inner rail to the side of the chassis to prevent sliding.
e) Install the second inner rail to the opposite side of the chassis and secure with the other M3x6mm screw.
Step 4 Open the front securing plate on both slide-rail assemblies. The front end of the slide-rail assembly has a spring-loaded
securing plate that must be open before you can insert the mounting pegs into the rack-post holes.
On the outside of the assembly, push the green arrow button toward the rear to open the securing plate.
Figure 39: Front Securing Mechanism Inside the Front End
Cisco Firepower 2100 Series Hardware Installation Guide
52
Mount and Connect
Rack-Mount the Chassis Using Slide Rails

Cisco Firepower 2140 Specifications

General

Model	Cisco Firepower 2140
Category	Firewall
Firewall Throughput	20 Gbps
Power Supply	Dual, Hot-swappable
Firewall Throughput (Maximum)	20 Gbps
Firewall Throughput (Application Visibility and Control AVC)	10 Gbps
Form Factor	1 RU
Memory	32 GB
Operating System	Cisco Firepower Threat Defense (FTD)
Maximum Concurrent Sessions	4, 000, 000
Network Interfaces	8 x 1G/10G SFP+
Concurrent Sessions	4, 000, 000
Interfaces	8 x 1G/10G SFP+
Throughput	20 Gbps
