Reconfiguring Forward Signal Routing
1x4 Forward Configuration Modules with Forward RF Injection
A single forward receiver (RCVR 1) feeds all RF output ports. The Forward Local
Injection (FLI) Module routes an RF signal from an external source to the Forward
Configuration Module which is then coupled with the input from RCVR 1.

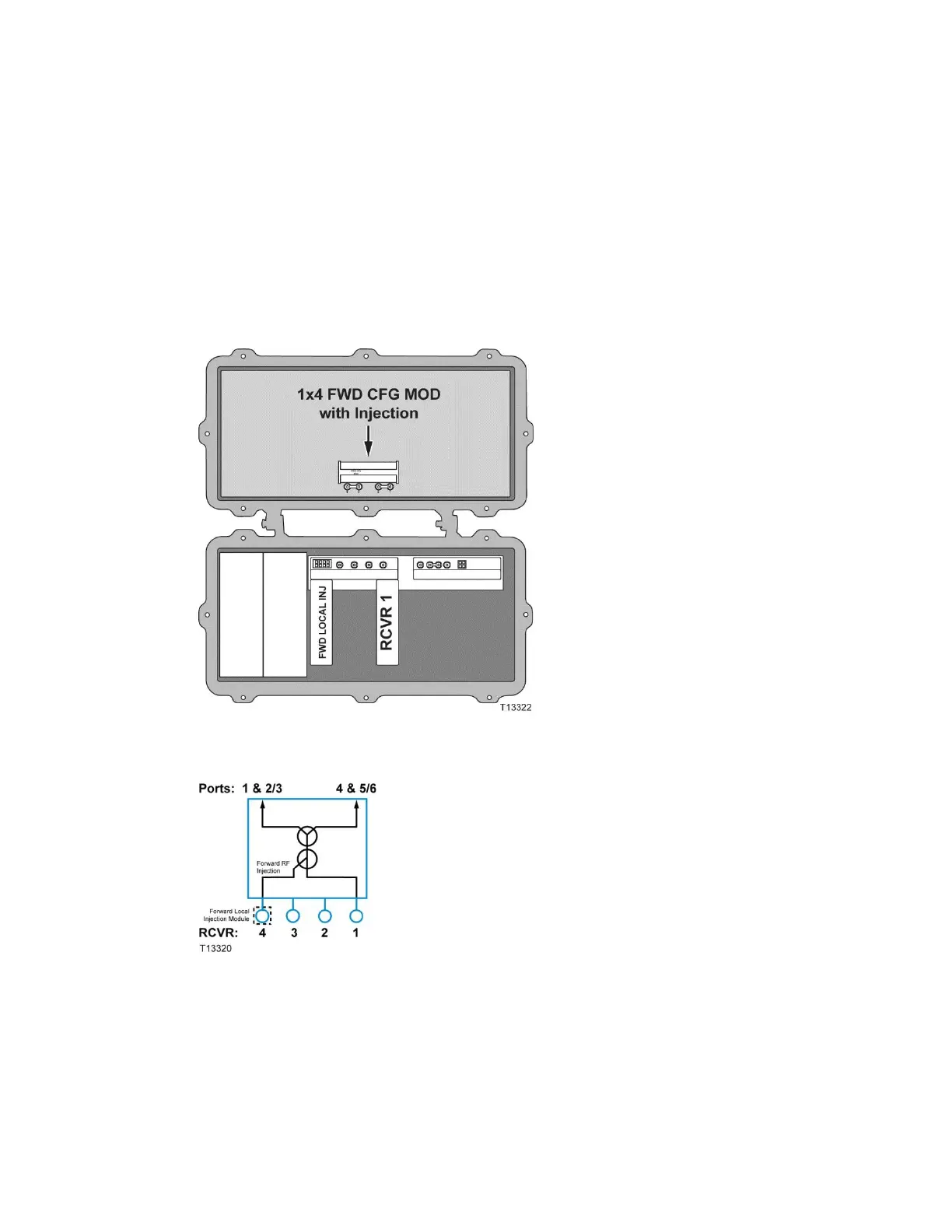

Install the receiver in RCVR 1. Install the FLI Module in the RCVR 4 position.
4-way forward segmentable node
The following diagram illustrates forward path signal flow in this configuration
module.
