Cisco GS7000 User Manual

Chapter 4 Setup and Operation
114

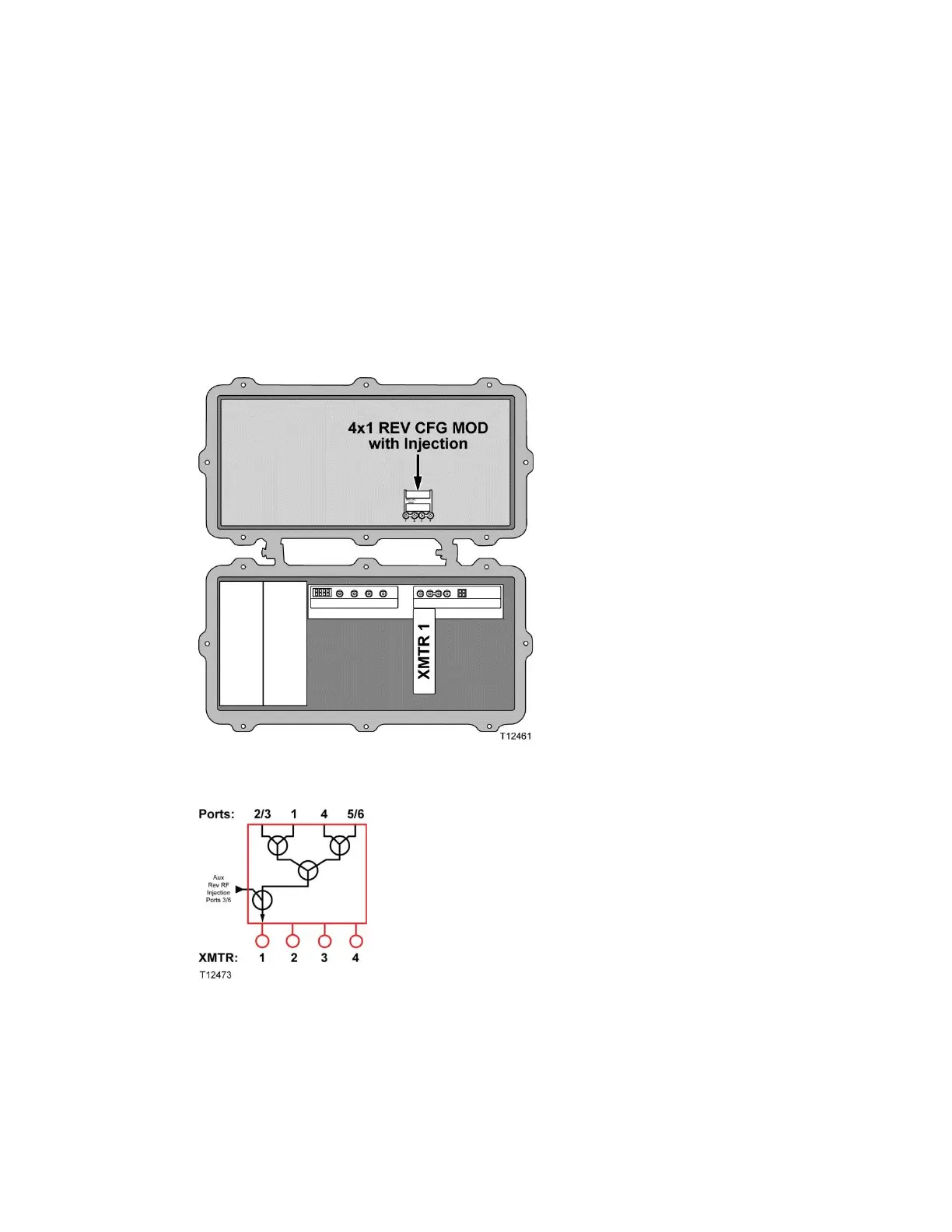

4x1 Reverse Configuration Module with Auxiliary Reverse RF Injection
All four ports are combined to a single reverse transmitter. An RF signal from an
external source can optionally be injected and coupled with the reverse RF inputs on
Ports 3/6 and routed to Transmitter 1.
Install the transmitter module in XMTR 1.
The following diagram illustrates reverse path signal flow in this configuration
module.
