Pedestal or Wall Mounting the Node
and set the bolts and strand clamps aside.
3 Position the 1.2 GHz GS7000 Node horizontally in the enclosure and allow for
free flow of air around it. Inadequate airflow could cause the node to exceed
thermal parameters. Line up the bolt holes on the bottom of the housing with the
mounting holes on the pedestal bracket provided by the pedestal manufacturer.

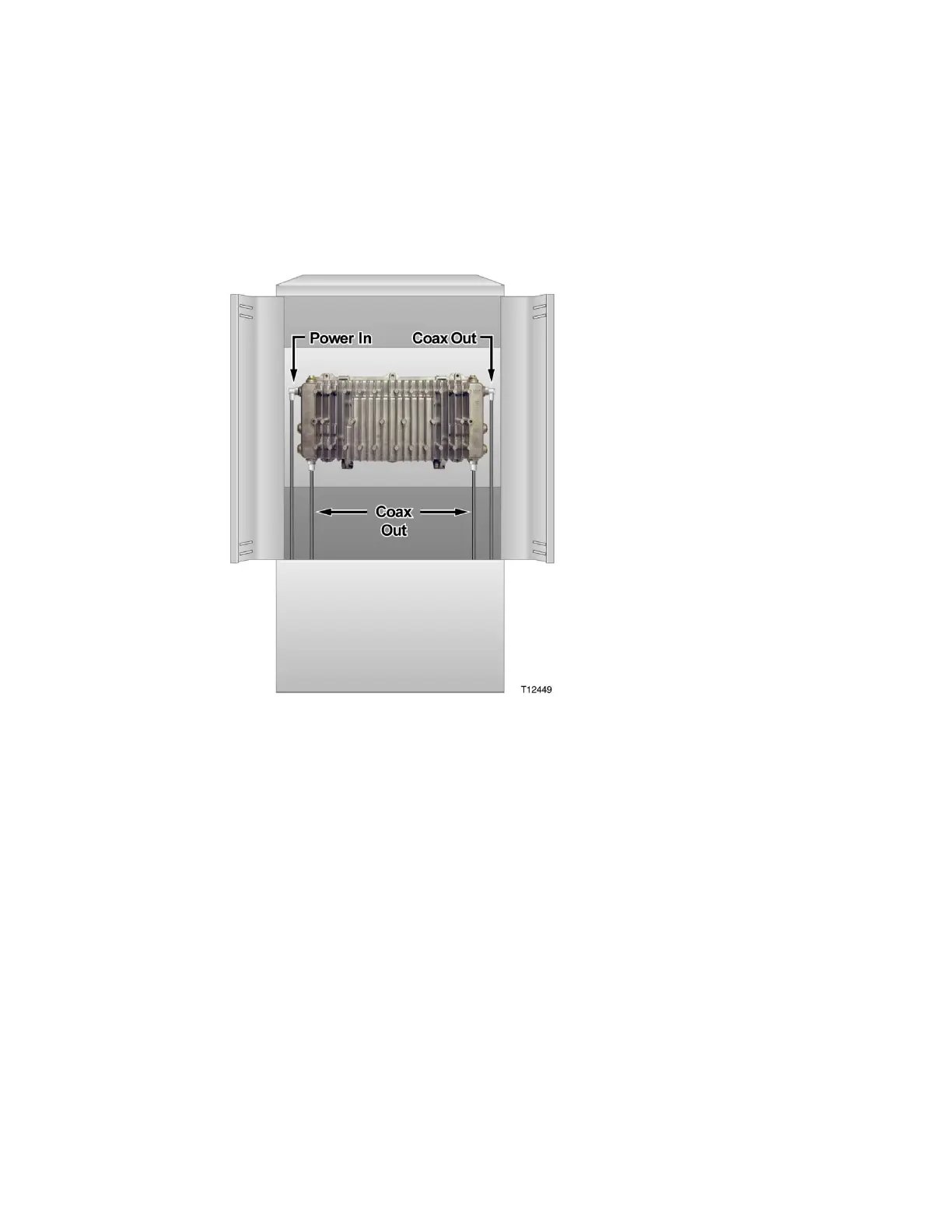

Important: The node housing must be mounted horizontally, as shown, to
ensure proper airflow over the housing cooling fins. Do NOT mount the node
housing vertically.
4 Secure the node housing to the pedestal bracket using the strand clamp bracket
bolts you removed in step 2. Insert the bolts into the mounting holes. Use the
strand clamps as spacers if necessary. Torque the bolts from 8 ft-lb to 10 ft-lb
(10.8 Nm to 13.6 Nm).
5 Connect the coaxial cable to the pin connector according to connector
manufacturer’s specifications.
6 Ground the equipment in accordance with local codes and regulations.
7 Continue to Fiber Optic Cable Installation (on page 74) and RF Cable
Installation (on page 82).
