Cisco IE 4000 Switch Hardware Installation Guide
Chapter 1 Product Overview
LEDs
LEDs
You can use the LEDs to monitor the switch status, activity, and performance. Figure 1-4 and Figure 1-
4 show the front panel LEDs.

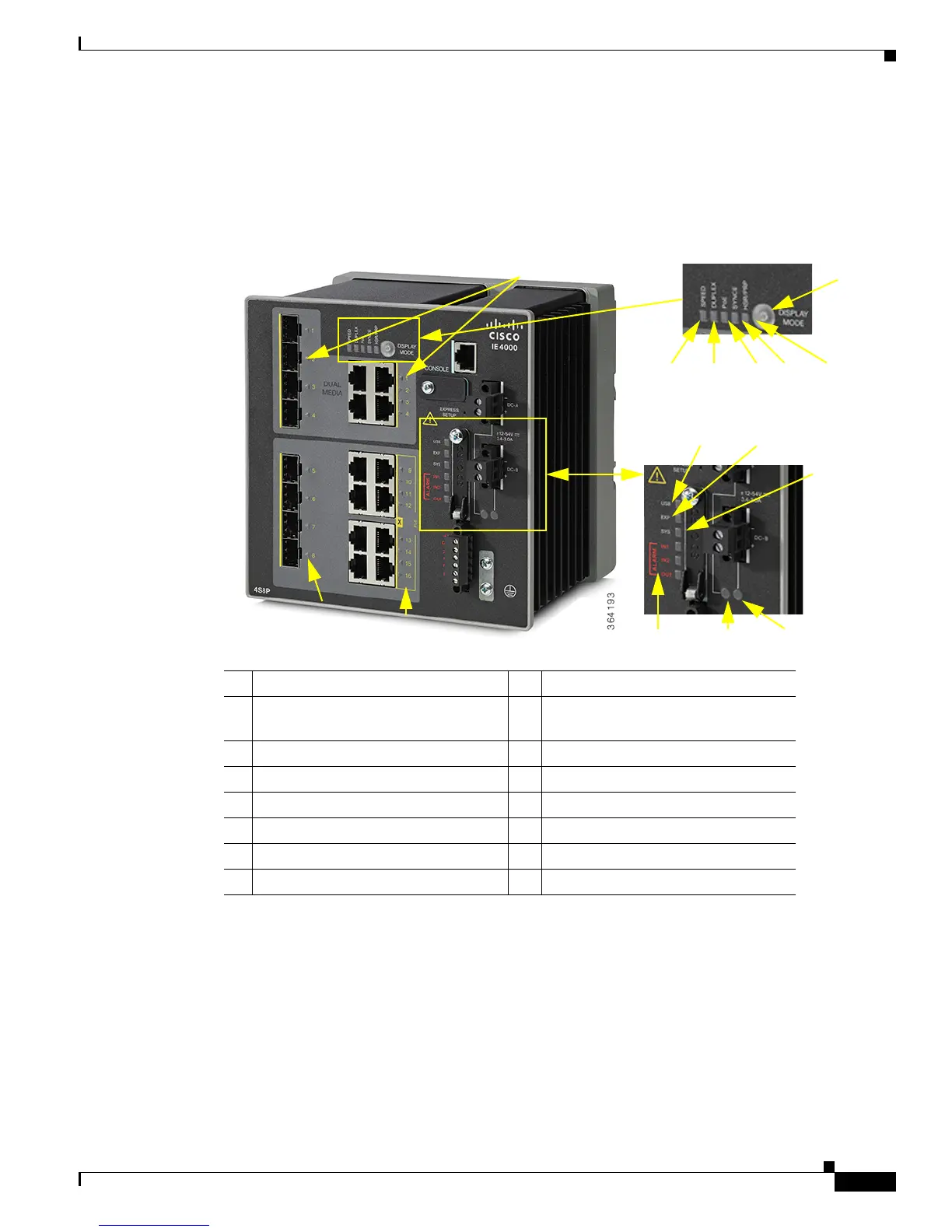

Figure 1-4 LEDs on the Cisco IE 4000 Switch
Display Mode Switch
The Display Mode Switch allows you to choose the mode you want displayed by the port LEDs (items
7,8,9 in figure 1-4 ). The LEDs to the left of the switch indicate the chosen display mode. Each time
you press the switch, the mode indicator will move from Speed, Duplex, PoE, Synce, and HSR/PRP
respectively.
7
8
9
65 4
12
3
10 11 12 13 14
15
1 USB mini-Type B (console) port LED 6 Alarm LEDs
2 Express Setup LED 7 10/100/1000 BASE-T downlink port
LEDs
3 System LED 8 SFP module slot LEDs
4 Power connector DC-B LED 9 Dual Media port LEDs
5 Power connector DC-A LED 10 Speed
11 Duplex LED 12 POE port status LED
13 SYNCE LED 14 HSR/PRP
15 Display Mode Switch
