C-2
Cisco IE 4000 Switch Hardware Installation Guide
.
Appendix C Cable and Connectors
Connector Specifications
SFP Module Connectors

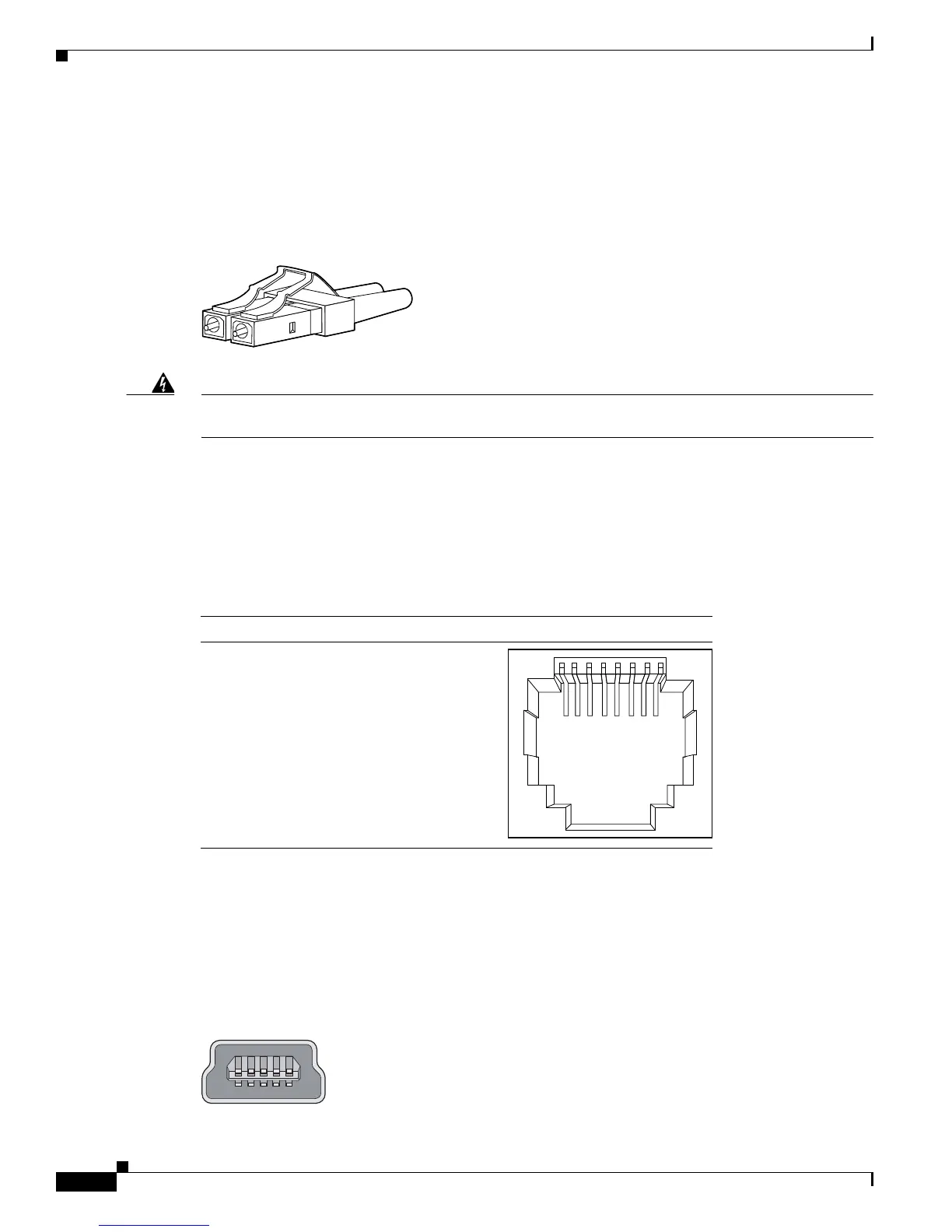

Figure C-2 shows a MT-RJ style connector that is used with the SFP Module slots. It is a fiber-optic
cable connector.
Figure C-2 Fiber-Optic SFP Module LC Connector
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into
beams or view directly with optical instruments. Statement 1051
Dual-Purpose Ports
The 10/100/1000 Ethernet ports on the dual-purpose ports use RJ-45 connectors. Figure C-3 shows the
pinouts.
Figure C-3 10/100/1000 Port Pinouts
Console Port
The switch has two console ports: a USB 5-pin mini-Type B port on the front panel (see Figure C-4) and
an RJ-45 console port on the rear panel.
Figure C-4 USB Mini-Type B Port
58476
60915
231 45678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
253163
