Cisco IE-4000-4TC4G-E - Cable Pinouts

C-7
Cisco IE 4000 Switch Hardware Installation Guide
.
Appendix C Cable and Connectors
Cables and Adapters
Cable Pinouts

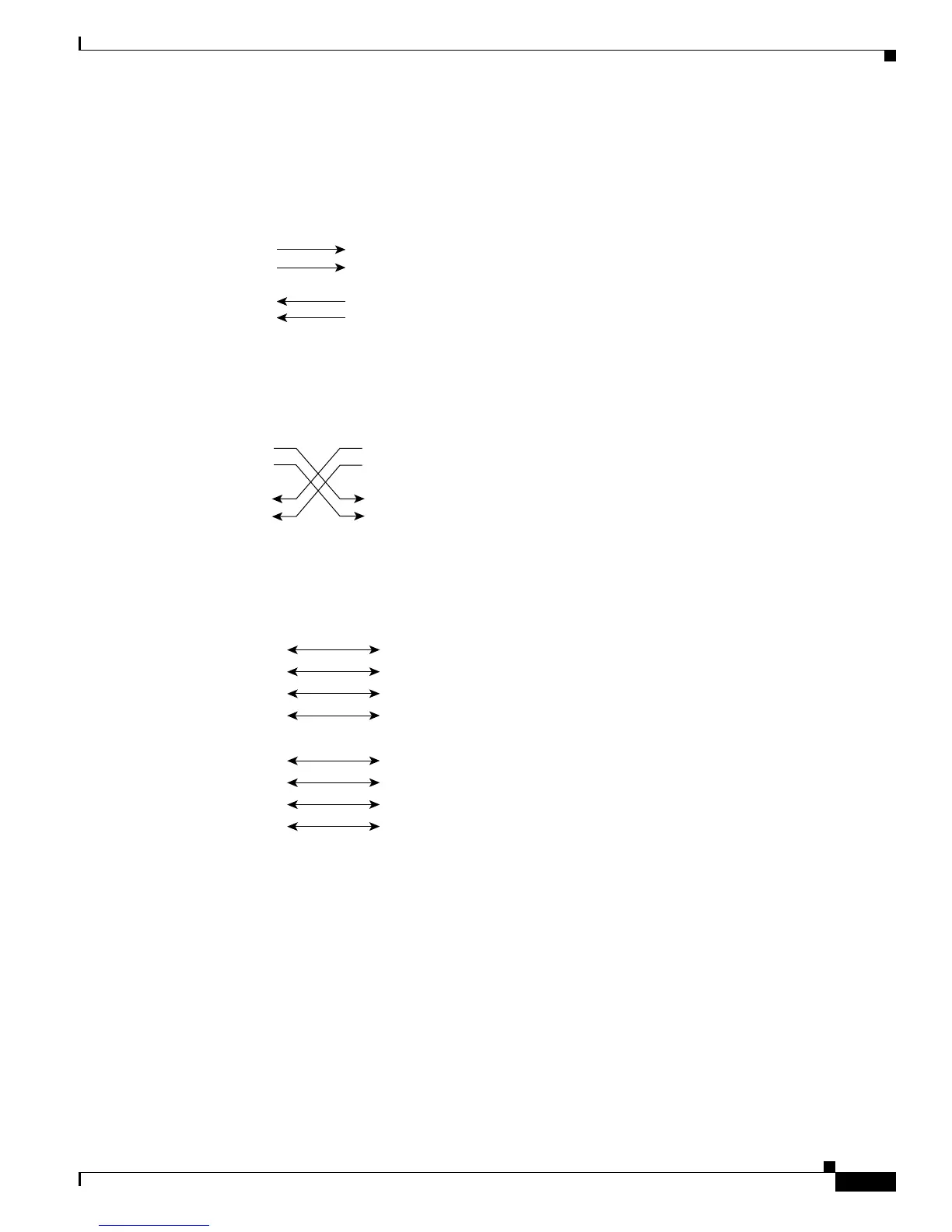

Figure C-6 Two Twisted-Pair Straight-Through Cable Schematic for 10/100 Ports
Figure C-7 Two Twisted-Pair Crossover Cable Schematic for 10/100 Ports
Figure C-8 Four Twisted-Pair Straight-Through Cable Schematic for 1000BASE-T Ports
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Router or PC
3 RD+
6 RD–
1 TD+
2 TD–
H5578
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Switch
3 TD+
6 TD–
1 RD+
2 RD–
H5579
1 TP0+
2 TP0-
3 TP1+
6 TP1-
1 TP0+
2 TP0-
3 TP1+
6 TP1-
Switch Router or PC
4 TP2+
5 TP2-
7 TP3+
8 TP3-
4 TP2+
5 TP2-
7 TP3+
8 TP3-
65271
