Cisco IP 7942 Series User Manual

| CISCO IP PHONE 7942 SERIES | Instructional & Information Technology Services | 12/15/2010 P.4
Programmable Buttons
Remote Call on Hold
Another phone that shares
your line has put a call on
hold
Remote in Use
Another phone that shares
your line has connected a call
Reverting Call
A holding call is reverting to
your phone

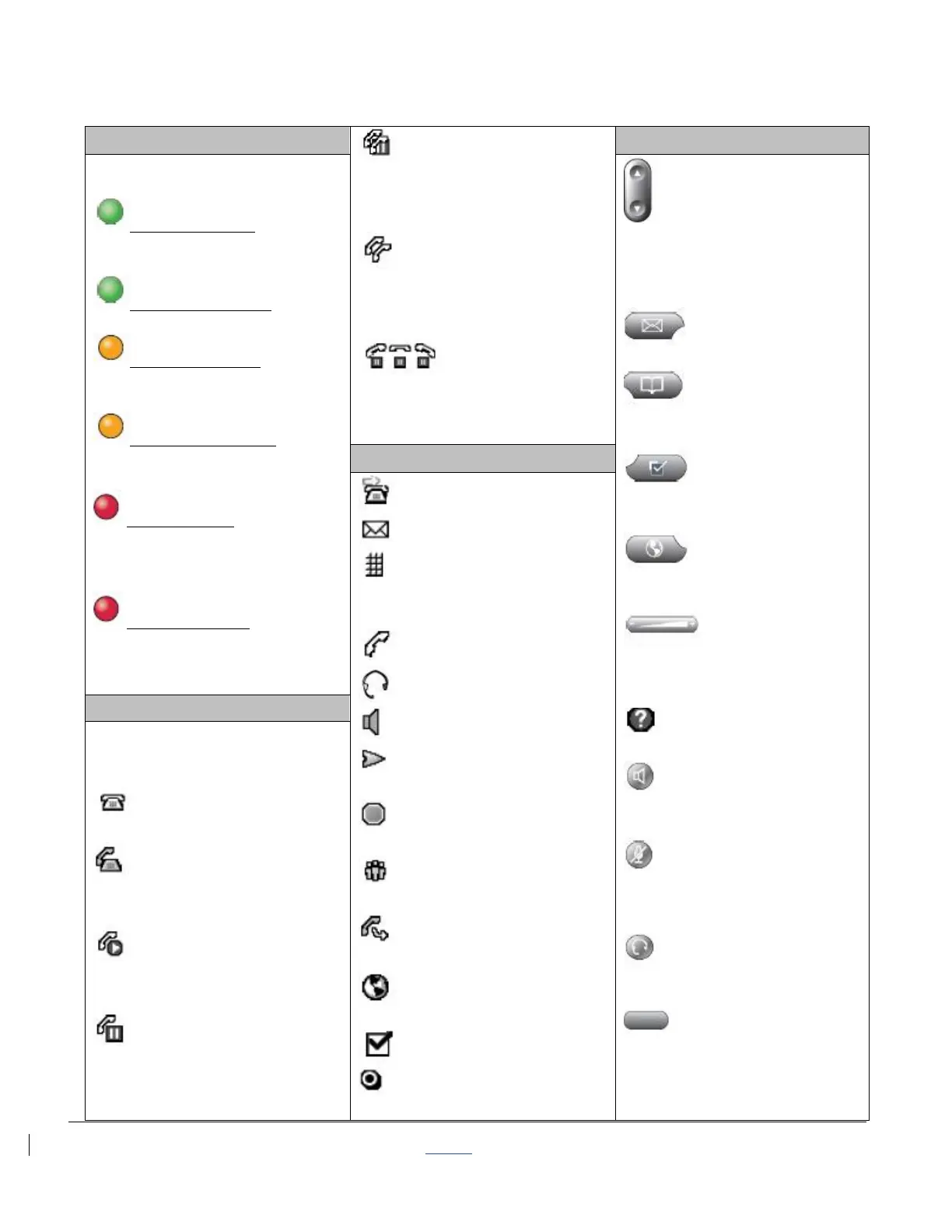

Button Icons
Buttons illuminate to indicate
status:
Green, Steady:
Active call or Two-way
Intercom call
Green, Flashing:
Held call
Amber, Steady:
Privacy in use, One-way
Intercom call, DND active
Amber, Flashing:
Incoming call or
Reverting Call
Red, Steady:
Remote line in use
(shared line or BLF
status)
Red, Flashing:
Remote call on hold
Navigation
Scroll through menus and
highlight items. Displays phone
numbers from your Placed
Calls log.
Messages
Auto-dials your voice mail.
Directories
Use it to access call logs and
directories.
Settings
Use it to control phone screen
contrast and ring sounds.
Services
Use it to access the bus
schedule and other services.
Volume
Controls the handset, headset,
speakerphone volume and
ringer volume.
Help
Activates the Help menu.
Speaker
Toggles the speakerphone on
(button is lit) or off.
Mute
When the microphone
(speakerphone) is muted, the
button is lit.
Headset
Toggles the headset on
(button is lit) or off.
Soft key
Each activates a soft key
option (displayed on your
phone screen).
Phone Screen Icons
Call Forward Enabled
Message Waiting
Speed dial, call log or
directory listing (line
status unknown)
Handset in Use
Headset in Use
Speakerphone in Use
Feature Assigned to
Button
Hold Assigned to
Button
Conference Assigned
to Button
Transfer Assigned to
Button
Phone Service URL
Assigned to Button
Option Selected
Feature Enabled
Line and Call Icons
Your phone displays icons to
help you determine the call
and line state.
On Hook Line
No call activity on this line
Off Hook Line
You are dialing a number or
an outgoing call is ringing
Connected Call
You are currently connected
to the other party
Call on Hold
You have put the call on hold

Cisco IP 7942 Series Specifications

General

Line Buttons	2
Speakerphone	Yes
Protocols	SIP, SCCP
Ethernet Switch	10/100BASE-T Ethernet connection through 2 RJ-45 ports
Power Options	IEEE 802.3af Power over Ethernet (PoE)
Audio Codec Support	G.711, G.729a, G.729ab, G.722
Weight	1 kg
