Cisco IR1101 Getting Started

6
Getting Started and Product Document of Compliance for the Cisco IR1101 Industrial Integrated Services Router

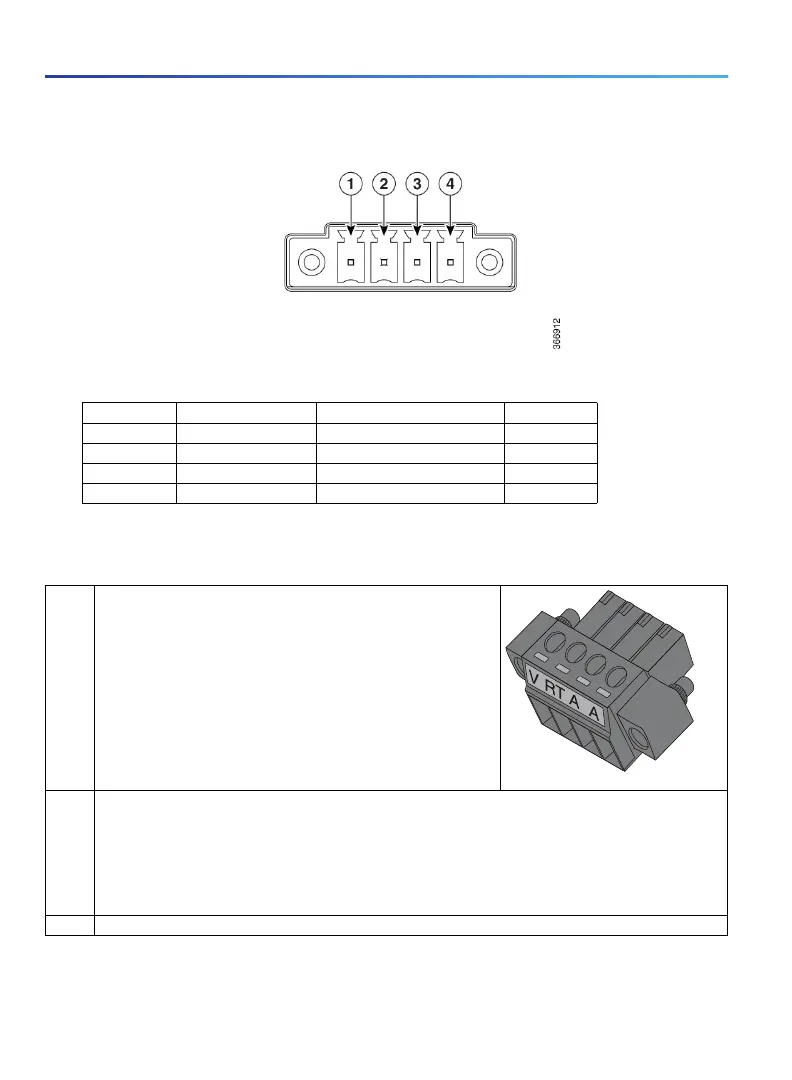

Figure 1 Power Connector Pin-outs
Table 1 Power connector Descriptions
Wiring the DC Power
To connect the DC power on your Cisco IR1101, follow these steps:
Pin Number Name Description Color
1 DC In + DC Power Positive Input Red
2 DC In - DC Power Return (GND-) Black
3AC Alarm Common N/A
4AI Alarm Input N/A
1. Locate the power and alarm connector on the router front panel.
NOTE: Your connector may not have the labels V RT A A.
In the labeled connector, the pins are:
V—Positive DC power connection
RT— Return DC power connection
A— Alarm Common
A— Alarm Input
2. Identify the connector positive and return DC power connections. The connections left to right are:
 1—Positive DC power connection
 2—Return DC power connection
 3—Alarm Common
 4—Alarm Input
3. Measure two strands of twisted-pair copper wire (18-to-20 AWG) long enough to connect to the DC power source.
391920

Cisco IR1101 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
SIM card slot	-
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1D, IEEE 802.1Q
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
USB version	2.0
USB ports quantity	2
Combo SFP ports quantity	1
Ethernet LAN (RJ-45) ports	4
Output voltage	12 - 48 V
Power source type	DC
Power consumption (typical)	9.8 W
Operating altitude	-152.4 - 1524 m
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 95 %
Safety	UL 60950-1, 2nd edition; CAN/CSA C22.2 No. 60950-1, 2nd edition, EN 60950-1, 2nd edition; CB to IEC 60950-1, 2nd edition
Flash memory	8000 MB
Storage media	Flash
Internal memory	4096 MB
Internal memory type	DRAM
Electromagnetic compatibility	47 CFR Part 15 B, EN 55032:2015, CISPR 32 Edition 2, CNS13438: 2006, EN 300 386 V1.6.1, ICES-003 Issue 6: 2016, KN 32: 2015, TCVN 7189: 2009, V-2/2015.04, V-3/2015.04, AS/NZ CISPR32, EN 61000-4-2, 3, 4, 5, 6, 8, 9, 16, 17, 18, and 29, CISPR24: 2010 + A1: 2015, EN 300 386 V1.6.1, EN 55024: 2010 + A1: 2015, EN 55035:2017, KN35: 2015, TCVN 7317:2003, QCVN 18:2014
Product color	Black
Routing protocols	BGP, EIGRP, HSRP, RIP-1, RIP-2
Data link protocols	IPv4, IPv6
Supported protocols	SCADA, DNP3, T101-104, Raw Socket TCP, UDP
Mobile network generation	Not supported
VPN support	Cisco Easy VPN Solution client and server NAT transparency Dynamic Multipoint VPN (DMVPN) Tunnel-less Group Encrypted Transport VPN Flex VPN
Firewall security	Cisco IOS
Security algorithms	256-bit AES, HTTPS, IPSec, SSL/TLS
Authentication method	Secure HTTP (HTTPS), FTP, Telnet Authentication Proxy
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	124.9 mm
Width	132.5 mm
Height	60 mm
Weight	1020 g
