Getting Started and Product Document of Compliance for the Cisco IR1101 Industrial Integrated Services Router

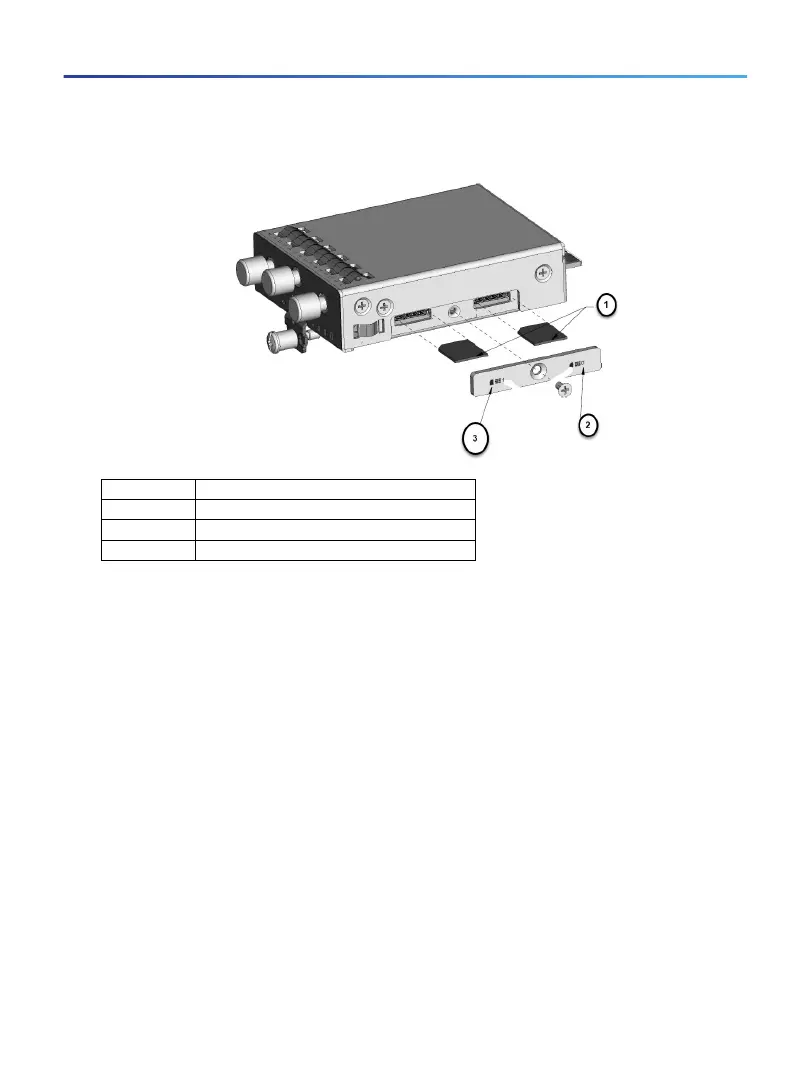

Figure 4 Sim Installation
5. Push in each SIM until it clicks into place. When the SIMs are installed, re-attach the access plate previously removed
with a screwdriver. Torque to 2.8 to 3.8 inch-lbs (0.9-1.1 newton meter).
6. If your Pluggable Module is the type that has a USB port, make sure that the USB cover is properly installed. Place
the USB cover (1) with the plug indentation against the USB port (2). The half circle of the USB cover fits behind the
latch lock screw. See Figure 5 for details.
Item Description
1Micro SIMs
2SIM 0 (towards the device)
3 SIM 1 (away from the device)
