The P-LTEAP18-G pluggable module must be installed in the IR1101 Base. It cannot be used in the IRM-1100
Expansion Module.
Note

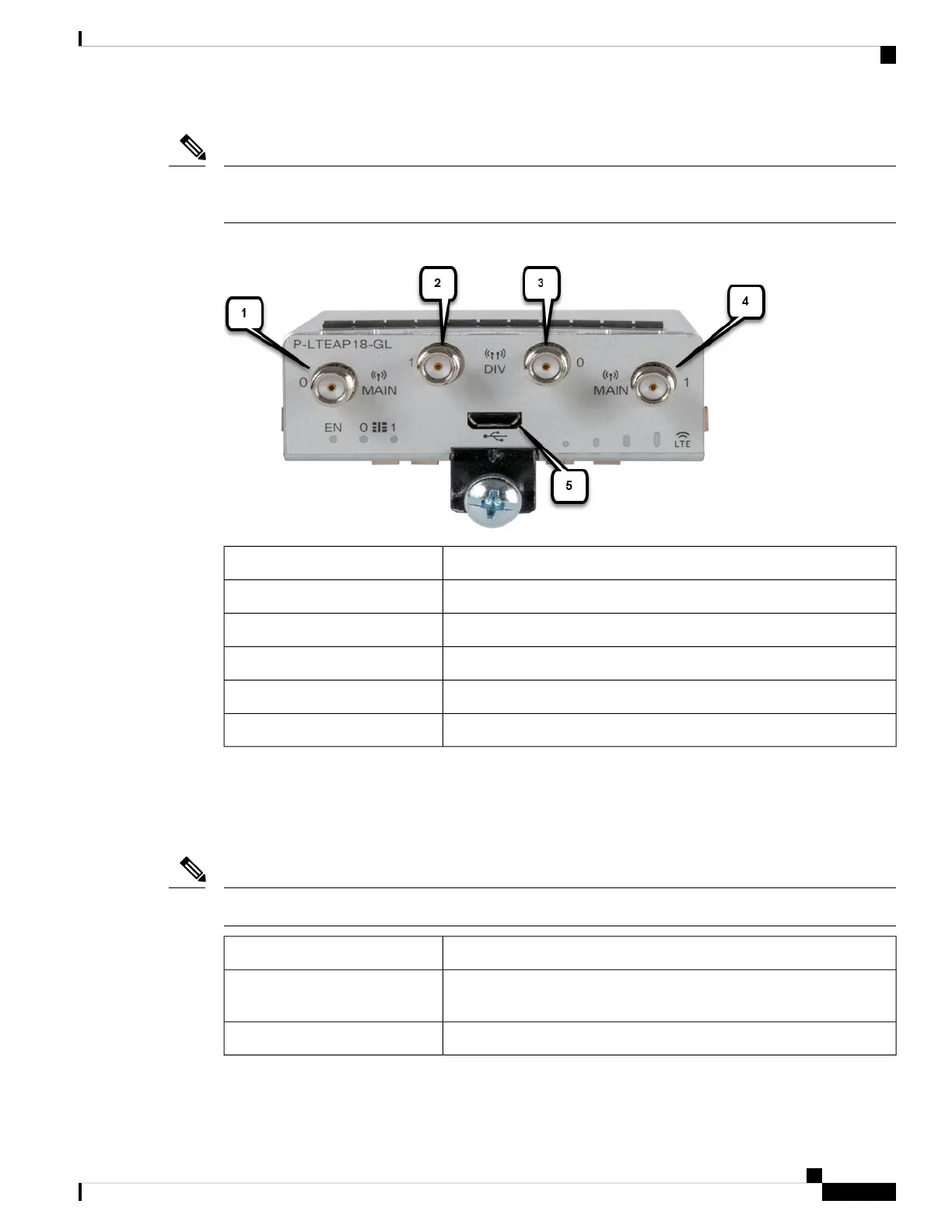

Figure 10: LTE Pluggable - P-LTEAP18-GL
DescriptionItem
Main 0 Antenna1
Diversity 1 Antenna2
Diversity 0 Antenna3
Main 1 Antenna4
Micro USB Debug Port5
Installing or replacing the SIM modules is covered in Pluggable Module
P-LTEAP18-GL Frequency Bands
The following table provides the global frequency bands available.
Antennas must be attached to the RF connectors as listed below for proper bands service.
Note
DescriptionItem
B1, B2(B25), B3, B4(B66), B5(B26,B18,B19), B8, B12(B17), B13, B14,
B20, B28, B29, B39, B71, B41
MAIN 0 and DIV 0
B7, B30, B32, B38, B40, B41, B42, B46, B48, B2(B25)MAIN 1 and DIV 1
Product Overview
11
Product Overview
LTE Category 18 Pluggable Module
