Cisco IR1101 User Manual

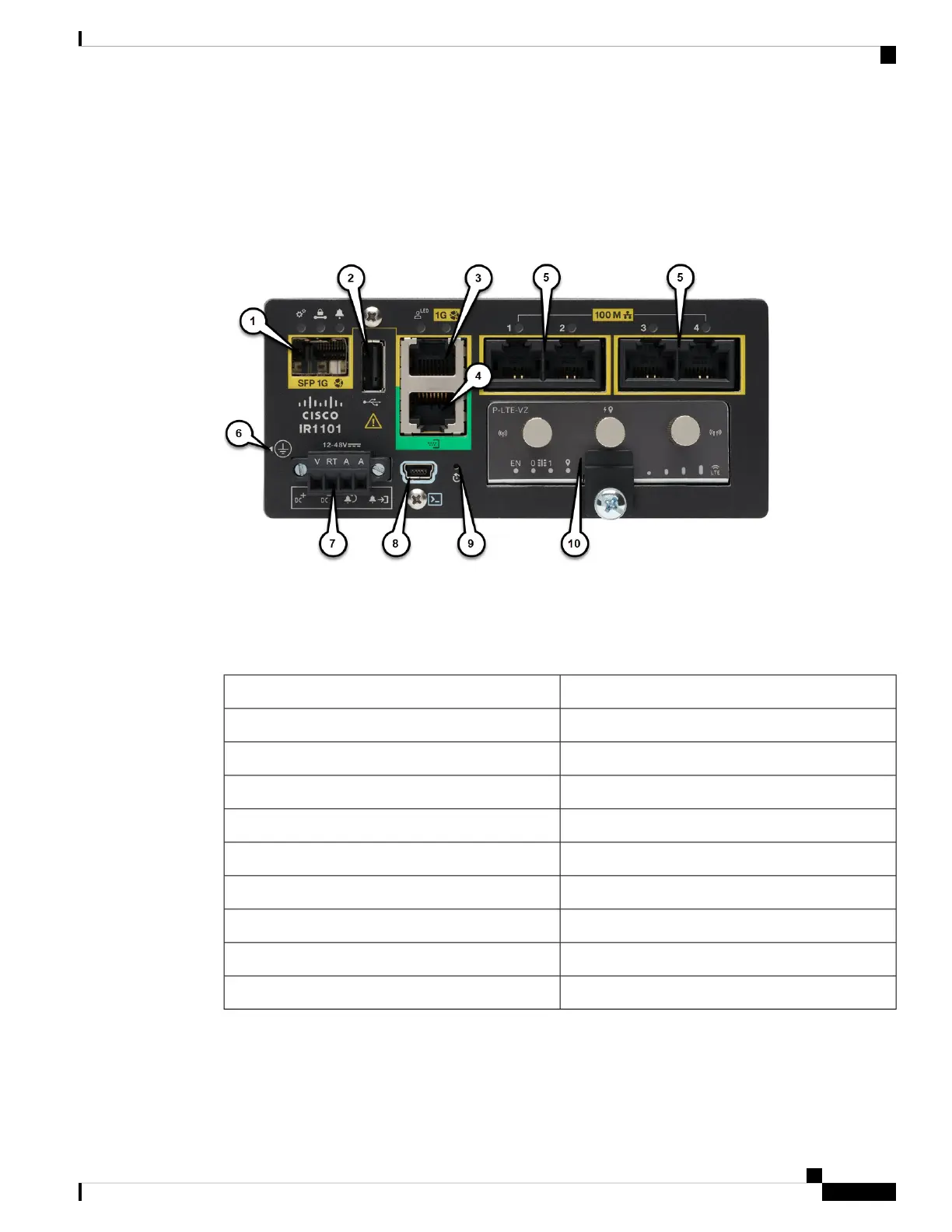

The following graphic shows the front panel details of the Cisco IR1101.
Figure 4: Cisco IR1101 Front Panel
Table 2:
SFP GE WAN1
USB 2.02
RJ45 GE WAN3
Serial Port4
FE LAN Ports 1-45
Grounding Point (on side of device)6
DC Power and Alarm Input7
Mini-USB Console8
Reset Button9
Pluggable Module10
Cisco IRM-1100-SPMI Expansion Module
The following graphic shows the IR-1100-SPMI Expansion Module.
Product Overview
5
Product Overview
Cisco IRM-1100-SPMI Expansion Module

Cisco IR1101 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
SIM card slot	-
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1D, IEEE 802.1Q
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
USB version	2.0
USB ports quantity	2
Combo SFP ports quantity	1
Ethernet LAN (RJ-45) ports	4
Output voltage	12 - 48 V
Power source type	DC
Power consumption (typical)	9.8 W
Operating altitude	-152.4 - 1524 m
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 95 %
Safety	UL 60950-1, 2nd edition; CAN/CSA C22.2 No. 60950-1, 2nd edition, EN 60950-1, 2nd edition; CB to IEC 60950-1, 2nd edition
Flash memory	8000 MB
Storage media	Flash
Internal memory	4096 MB
Internal memory type	DRAM
Electromagnetic compatibility	47 CFR Part 15 B, EN 55032:2015, CISPR 32 Edition 2, CNS13438: 2006, EN 300 386 V1.6.1, ICES-003 Issue 6: 2016, KN 32: 2015, TCVN 7189: 2009, V-2/2015.04, V-3/2015.04, AS/NZ CISPR32, EN 61000-4-2, 3, 4, 5, 6, 8, 9, 16, 17, 18, and 29, CISPR24: 2010 + A1: 2015, EN 300 386 V1.6.1, EN 55024: 2010 + A1: 2015, EN 55035:2017, KN35: 2015, TCVN 7317:2003, QCVN 18:2014
Product color	Black
Routing protocols	BGP, EIGRP, HSRP, RIP-1, RIP-2
Data link protocols	IPv4, IPv6
Supported protocols	SCADA, DNP3, T101-104, Raw Socket TCP, UDP
Mobile network generation	Not supported
VPN support	Cisco Easy VPN Solution client and server NAT transparency Dynamic Multipoint VPN (DMVPN) Tunnel-less Group Encrypted Transport VPN Flex VPN
Firewall security	Cisco IOS
Security algorithms	256-bit AES, HTTPS, IPSec, SSL/TLS
Authentication method	Secure HTTP (HTTPS), FTP, Telnet Authentication Proxy
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	124.9 mm
Width	132.5 mm
Height	60 mm
Weight	1020 g
